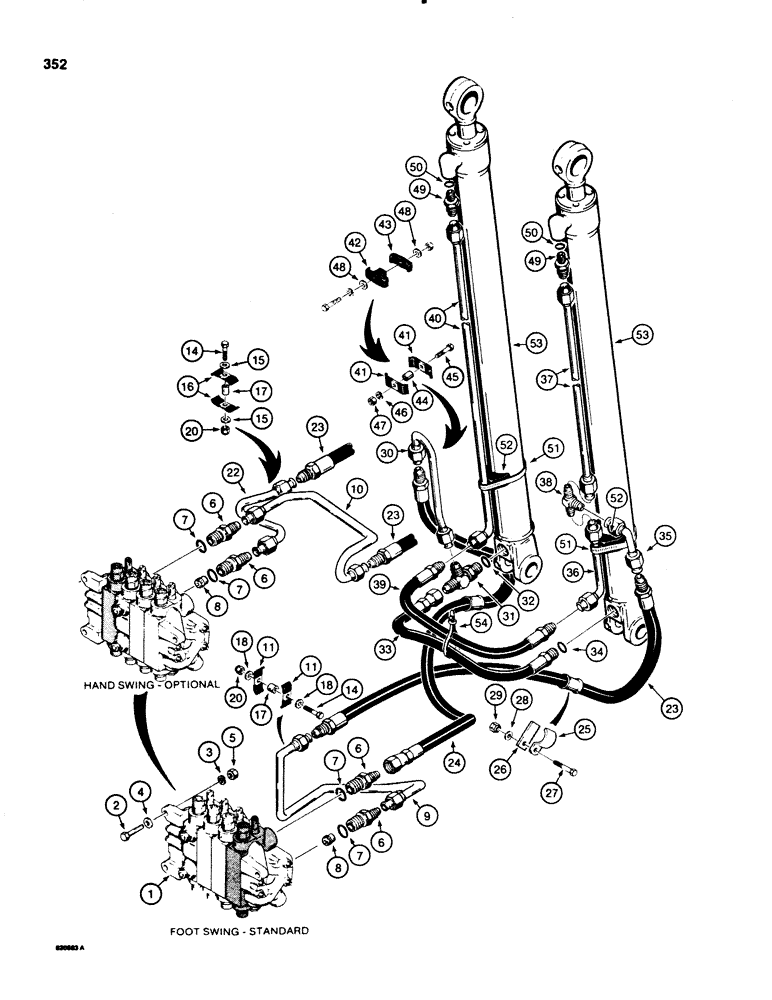

Запчасти Case 580E (352) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT, MODELS WITH ONE BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for mounting plate See Figure 346, valves shown are for models without extendable dipper, for correct valve section location in other valves, See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING connector

1шт.

8

D93207

FITTING

RESTRICTOR check, lower port

1шт.

9

D88964

TUBE,0.75" OD

bottom port, models with foot swing

1шт.

For special parts used with hydraulic boom lock, See Figure 380.

1шт.

10

D91817

HYD TUBE,19.05 mm OD x 80, 242 mm L

TUBE top port, models with hand swing

1шт.

For special parts used with hydraulic boom lock, See Figure 380.

1шт.

11

D40236

CLAMP

metal, boom tube to swing tube, models with foot swing, Replaces plastic tube clamps on some models

2шт.

12

RESERVED

1шт.

13

RESERVED

1шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

95-6

WASHER,3/8"

flat, , models with hand swing 3/8"

2шт.

16

D40236

CLAMP

metal, models with hand swing, Replaces plastic tube clamps on some models

2шт.

17

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

used with metal tube clamps, if used

1шт.

18

95-6

WASHER,3/8"

flat, 3/8"

2шт.

19

RESERVED

1шт.

20

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

1шт.

21

RESERVED

1шт.

22

D120444

TUBE

bottom port, models with hand swing

1шт.

23

D88977

HOSE,15.88mm ID x 1300mm L, SAE 100R2

51-1/8" (1300 mm) long, to right hand cylinder on models with foot swing or both cylinders on models with hand swing

1-2шт.

24

D88978

HOSE,15.88mm ID x 1350mm L, SAE 100R2

53-5/32" (1350 mm) long, to left hand cylinder on models with foot swing

1шт.

25

D93472

CLAMP

hose, at swing tower

2шт.

26

D93471

PLATE

clamp

2шт.

27

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

28

D41740

WASHER

flat, special, 3/8"

2шт.

29

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

30

D69421

HYD TUBE,0.75" OD

TUBE closed end of left hand cylinder

1шт.

31

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, male, Includes: Ref. 32

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING tee

1шт.

33

D50732

HOSE,12.7mm ID x 652.78mm L, SAE 100R2

25-11/16" (653 mm) long, crossover, closed end circuit, Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING hose end

1шт.

35

D121777

TUBE

hose to right hand cylinder tee

1шт.

36

D121779

TUBE

tee at right hand cylinder to crossover hose

1шт.

37

S207953

TUBE,19.05 mm OD x 760 mm L

to rod end of right hand cylinder

1шт.

38

218-596

TEE,1 1/16"-12 37 Degree

male, right hand cylinder tubes

1шт.

39

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

18" (457 mm) long, crossover, rod end circuit

1шт.

40

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

TUBE to rod end of left hand cylinder

1шт.

41

D40236

CLAMP

metal, tube, if used

2шт.

42

D124301

CLAMP,3/4" ID

plastic, tube, used with item 43, if used

1шт.

43

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

plastic, tube, if used

1шт.

44

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

used with metal tube clamp, if used

1шт.

45

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

47

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

48

95-6

WASHER,3/8"

flat, , used with plastic tube clamp, if used 3/8"

2шт.

49

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Includes: Ref. 50

2шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

51

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP cylinder tube

2шт.

52

D38648

BLOCK

SPACER clamp

2шт.

53

REF

INSTRUCTION

CYLINDER boom, See Figure 470

2шт.

54

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.
