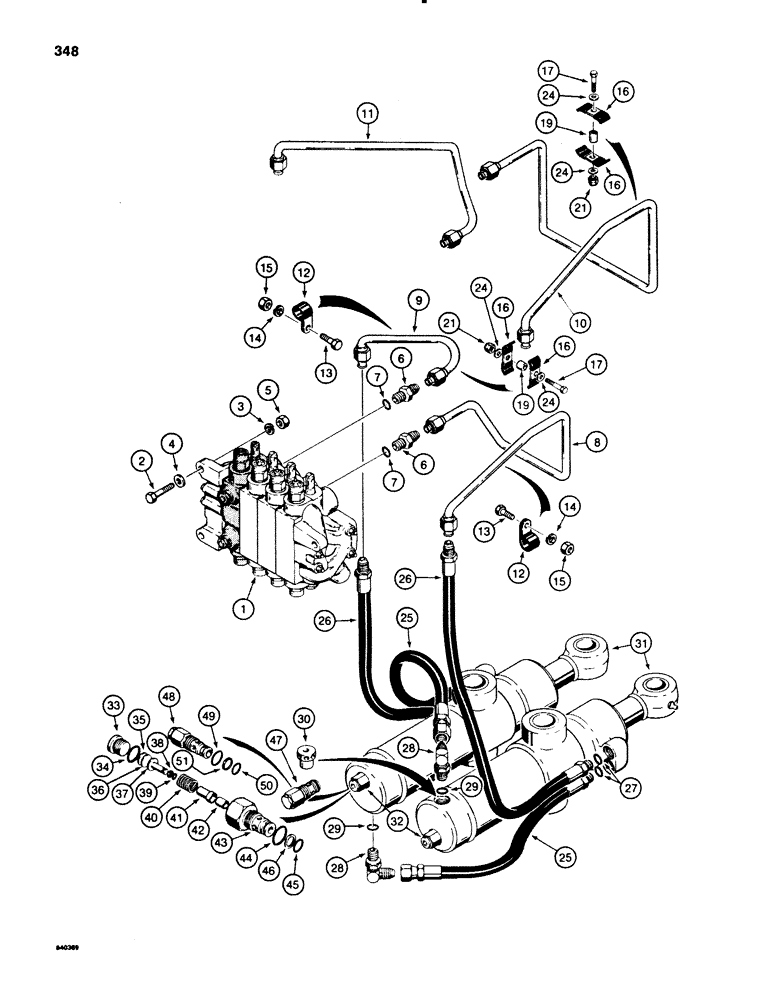

Запчасти Case 580E (348) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418, for mounting plate See Figure 346, valve shown is for foot swing models without extendable dipper, for correct valve section location in other valves See Figure 416 or 418

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, male, Includes: Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING adapter

1шт.

8

D94546

HYD TUBE

TUBE bottom port to right hand swing cylinder, models with foot swing, if used

1шт.

9

D94544

HYD TUBE,15.88 mm OD x 479, 70 mm L

TUBE top port to left hand swing cylinder, models with foot swing, if used

1шт.

10

D121681

TUBE

top port to right hand swing cylinder, models with hand swing, if used

1шт.

11

D121679

TUBE

bottom port to left hand swing cylinder, models with hand swing, if used

1шт.

12

T50103

CLAMP

p type, tube

2шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

16

D40236

CLAMP

metal, swing tube to boom tube, Replaces plastic tube clamps on some models

2шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

RESERVED

1шт.

19

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

used with metal tube clamp

1шт.

20

RESERVED

1шт.

21

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

1шт.

22

RESERVED

1шт.

23

RESERVED

1шт.

24

95-6

WASHER,3/8"

flat, 3/8"

2шт.

25

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

24" (610 mm) long, swing cylinders

2шт.

26

D94547

HOSE

22-3/4" (577 mm) long, tubes to swing cylinders, Includes: Ref. 27

2шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

30

D121828

VALVE

RESTRICTOR flow control, with or without extendable dipper

2шт.

31

REF

INSTRUCTION

CYLINDER swing, See Figure 468

2шт.

32

D47557

VALVE

relief, Allen head, if used, Includes: Ref. 33 - 46

2шт.

33

D40354

PLUG

relief valve, Includes: Ref. 34

1шт.

35

D40355

SHIM,.005" Thk

Spring guide (0.127 mm) .005" Thk

1шт.

36

16917

SHIM

spring guide, .0105" (0.267 mm) thick

1шт.

37

N7985

GUIDE

spring

1шт.

38

D37147

RING

backup, spring guide

1шт.

39

A51274

O-RING,0.145" ID x 0.285" OD

O RING spring guide

1шт.

40

D37148

SPRING

plunger

1шт.

41

D37151

PLUNGER

relief valve

1шт.

42

D37075

SEAT

plunger

1шт.

43

D47667

CAP

BODY relief valve

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING valve body to cylinder

1шт.

45

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O RING valve body

1шт.

46

D37071

RING

backup, valve body seal

1шт.

47

D55017

VALVE

relief, hex head, if used, for service order item 32 above, Includes: Ref. 48 - 51

2шт.

48

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, relief valve

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING outer

1шт.

50

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

O RING inner

1шт.

51

D37071

RING

backup, inner O ring

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, D39140 or D94547 hose

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
