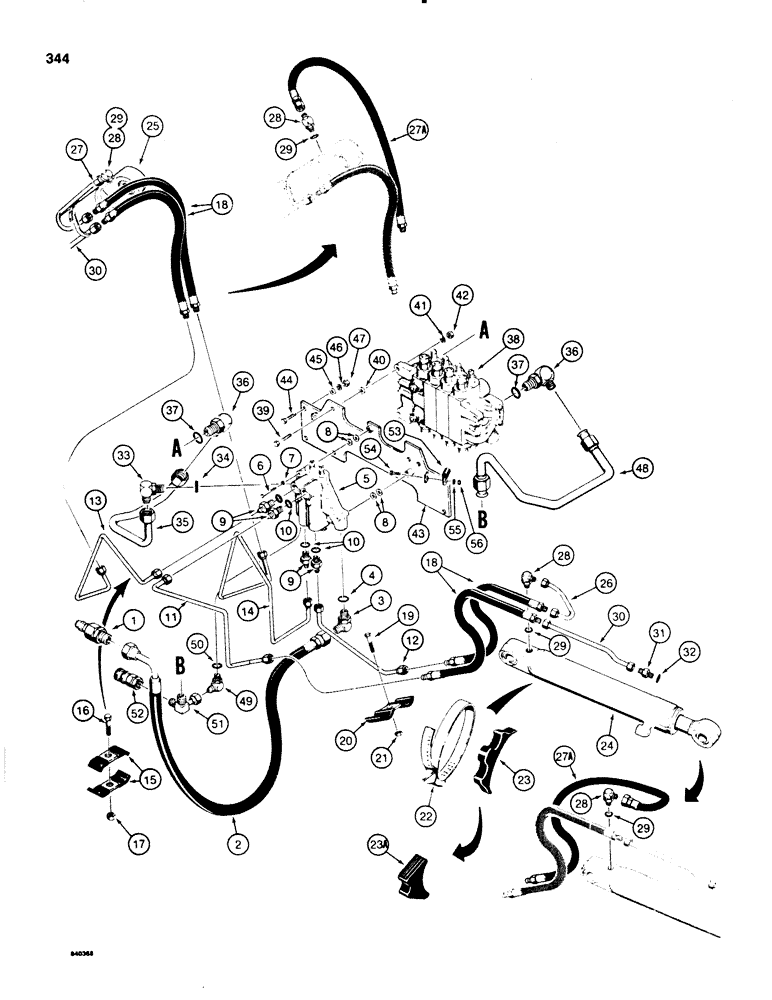

Запчасти Case 580E (344) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D90260

FITTING

DISCONNECT quick, coupling, hydraulic, male, See Figure 458

1шт.

2

D89645

HOSE,19.05mm ID x 1000mm L, SAE 100R12

39-3/8" (1000 mm) long, to stabilizer valve

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, male, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING elbow

1шт.

5

REF

INSTRUCTION

VALVE control, stabilizer, for correct assembly and components See Figure 414

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

4шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

11

D121656

TUBE

right hand, top port of control valve

1шт.

12

D124889

TUBE

right hand, bottom port of control valve

1шт.

13

D121652

TUBE

left hand, top port of control valve

1шт.

14

D121654

TUBE

left hand, bottom port of control valve

1шт.

15

A12032

CLAMP

left hand tubes

2шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self locking, plated, 5/16" - 18 NC

1шт.

18

D121658

HOSE,19.05mm ID x 450mm L, SAE 100R2

17-3/4" (450 mm), Serial Range: long,-cylinders

2-4шт.

19

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

20

D40236

CLAMP

hose

2шт.

21

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

22

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP size No. 84, tube, used with G103252 and G103253 stabilizer cylinders

2шт.

22

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP size No. 76, tube, used with G109139 and G109140 stabilizer cylinders

2шт.

23

R24703

SUPPORT

SPACER tube, rubber, used with items 18, 26, and 27, if used

2шт.

23a

D38648

BLOCK

SPACER hose, if used

2шт.

24

REF

INSTRUCTION

CYLINDER stabilizer, right hand, See Figure 466

1шт.

25

REF

INSTRUCTION

CYLINDER stabilizer, left hand, See Figure 466

1шт.

26

D94488

HYD TUBE,0.5" OD

TUBE to closed end of right hand stabilizer cylinder, if used

1шт.

27

D94490

HYD TUBE,0.5" OD

TUBE to closed end of left hand stabilizer cylinder, if used

1шт.

27a

R34485

HOSE

23" (584 mm) long, cylinder closed end ports, if used

2шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degree, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

30

D94486

HYD TUBE,12.7 mm OD x 420, 27 mm L

TUBE to rod end of stabilizer cylinders, may Replace straight tube used on some models

2шт.

31

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 32 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING adapter

1шт.

33

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Male, 90 degree, Includes: Ref. 34 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O RING elbow

1шт.

35

D93279

HYD TUBE,25.4 mm OD x 260, 211 mm L

TUBE power beyond port of stabilizer control valve to backhoe control valve

1шт.

36

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, male, Incl. Ref. 37 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O RING elbow

1шт.

38

REF

INSTRUCTION

VALVE control, backhoe, See Figure 416 or 418

1шт.

39

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

40

95-8

WASHER,1/2"

flat 1/2"

3шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

42

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

43

D94282

PLATE

control valve mounting

1шт.

44

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

45

95-8

WASHER,1/2"

flat 1/2"

4шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

47

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

48

D93281

HYD TUBE,1" OD

TUBE backhoe control valve return, models without extendable dipper

1шт.

48

D93283

HYD TUBE,25.4 mm OD x 316, 268 mm L

TUBE backhoe control valve return, models with extendable dipper

1шт.

49

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degree, Includes: Ref. 50

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

51

D88966

HYD TUBE,19.05 mm OD x 56 mm L

TUBE three way

1шт.

Ref #51 and #52 3 way tube and quick disconnect See page 381 Ref #24 for boom lock tee.

1шт.

52

D52800

COUPLING, QUICK, FEM

DISCONNECT quick, coupling, hydraulic, female, See Figure 458

1шт.

53

T50103

CLAMP

p type, tube, mounting plate to swing tubes

2шт.

54

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

55

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

56

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
