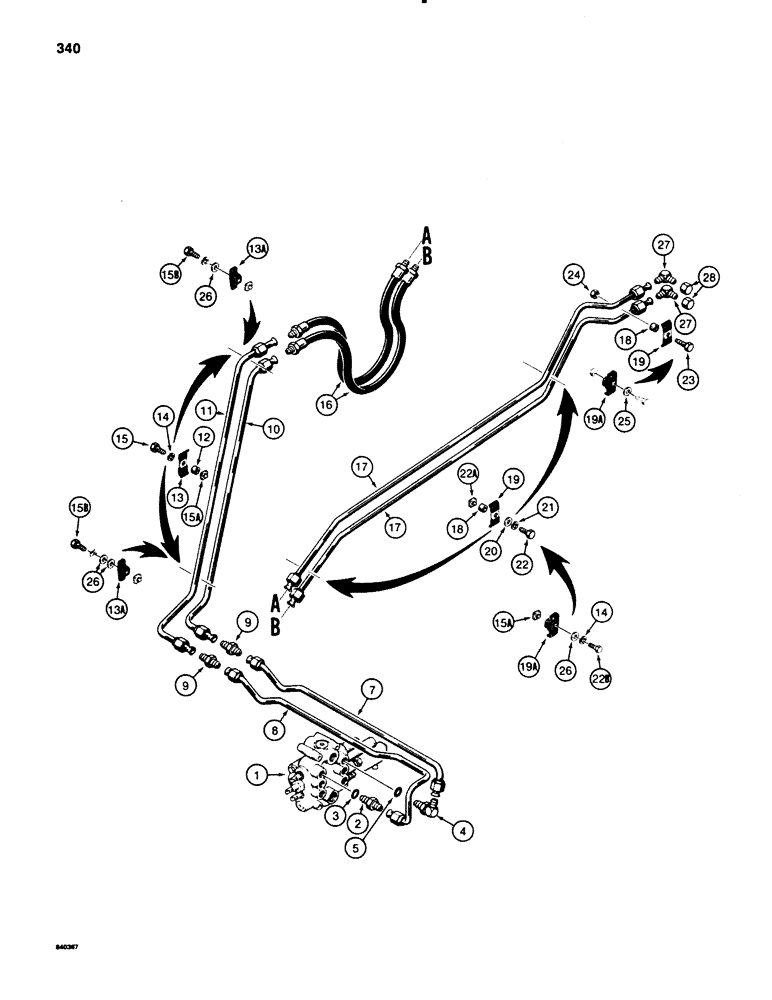

Запчасти Case 580E (340) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D123470

VALVE

control, loader, See Figure 392

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING connector

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

6

RESERVED

1шт.

7

D90107

HYD TUBE,15.88 mm OD x 783, 78 mm L

TUBE to rod end of clam cylinder

1шт.

8

D90105

HYD TUBE,0.625" OD

TUBE to closed end of clam cylinder

1шт.

9

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, tubes

2шт.

10

D90111

HYD TUBE,15.88 mm OD x 308, 807 mm L

TUBE to rod end of clam cylinder

1шт.

11

D90109

HYD TUBE,15.88 mm OD x 327, 853 mm L

TUBE to closed end of clam cylinder

1шт.

12

D76209

SPACER

used with metal tube clamp

1-2шт.

13

D40236

CLAMP

metal, tube, if used

1-2шт.

13a

D120613

CLAMP,20mm ID

plastic, chassis tubes, if used

1-2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2-4шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

15a

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC, mounts in welded cage D88417 on left hand

1шт.

reservoir and left hand lift frame

2-4шт.

15b

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

15c

D88417

CAGE ASSY.

CAGE nut, welded to left hand lift frame and left hand reservoir, used with

1шт.

25-226 square nut, not shown

4шт.

16

D86852

HOSE,12.7mm ID x 750mm L, SAE 100R2

29-1/2" (750 mm) long, chassis to loader lift frame

2шт.

17

D90113

HYD TUBE,12.7 mm OD x 330, 1449 mm L

TUBE on loader lift frame

2шт.

18

D76208

SPACER

used with metal tube clamp, if used

3шт.

19

R17319

CLAMP

metal, tube, if used

3шт.

19a

D120679

CLAMP,Tube, 1/2"

plastic, loader lift frame tubes, if used

3шт.

20

195-103

WASHER,5/16"

flat, plated, , if used 5/16"

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

2шт.

22

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

2шт.

22a

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16" - 18 NC, if used

2шт.

22b

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used Hex, 3/8"-16 x 1 1/2", G5

2шт.

23

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC

1шт.

25

195-103

WASHER,5/16"

flat, plated, , used with plastic tube clamp, if used 5/16"

1шт.

26

95-6

WASHER,3/8"

flat, , used with plastic tube clamp, if used 3/8"

2-5шт.

27

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

28

218-755

CAP,37 Degree, 3/4"-16

Elbow, Used when attachments are removed 37º, 3/4"-16

2шт.
