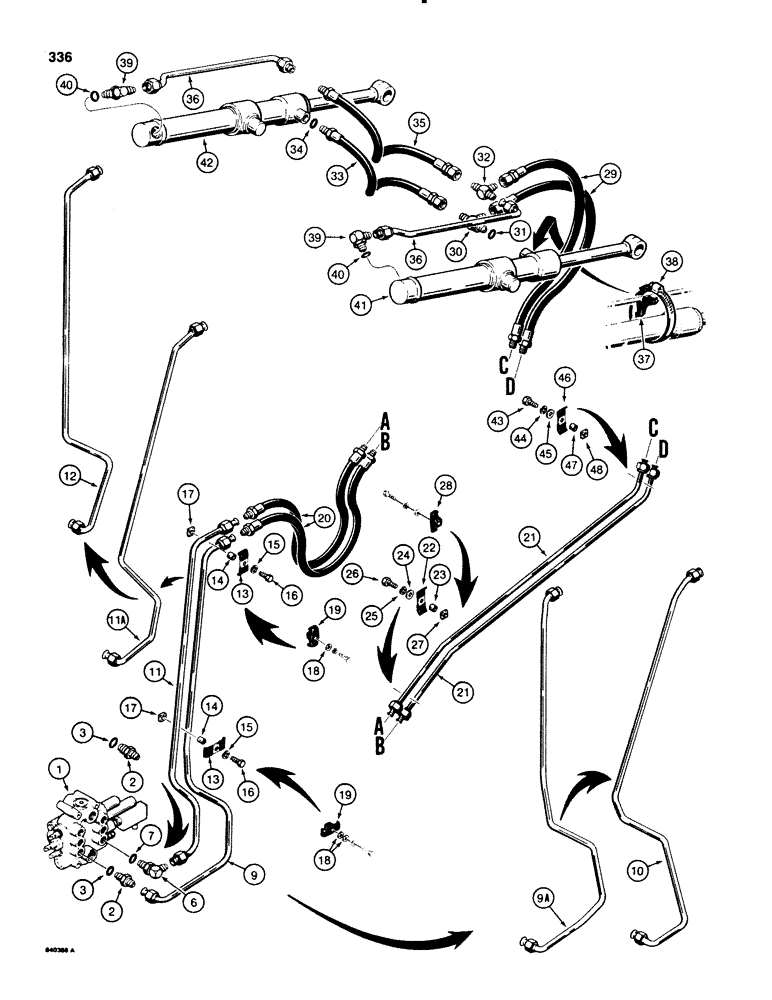

Запчасти Case 580E (336) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader, for correct assembly and components, See Figures 390, 392 or 406

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 3

1-2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING connector

1шт.

4

RESERVED

1шт.

5

RESERVED

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree, used with D86880 tube only, if used, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

8

RESERVED

1шт.

9

D86878

HYD TUBE,15.88 mm OD x 951, 512 mm L

TUBE to rod end of bucket cylinders, used with Parker two or three spool control valve only, if used

1шт.

9a

D120814

TUBE

to rod end of bucket cylinders, used with Parker three spool control valve only, if used

1шт.

10

D123549

TUBE ASSY.

TUBE to rod end of bucket cylinders, used with Case control valve only

1шт.

11

D86880

HYD TUBE

TUBE to closed end of bucket cylinders, used with Parker two or three spool control valve only, if used

1шт.

11a

D120812

TUBE

to closed end of bucket cylinders, used with Parker three spool control valve only, if used

1шт.

12

D123551

TUBE ASSY.

TUBE to closed end of bucket cylinders, used with Case control valve only

1шт.

13

D40236

CLAMP

metal, tube

1-2шт.

14

D76209

SPACER

used with metal tube clamp

1-2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC, if used

2шт.

18

95-6

WASHER,3/8"

flat, , used with plastic tube clamp, if used 3/8"

3шт.

19

D120613

CLAMP,20mm ID

plastic, tube, if used

2шт.

20

D86852

HOSE,12.7mm ID x 750mm L, SAE 100R2

29-1/2" (750 mm) long, chassis to loader lift frame

2шт.

21

D86856

TUBE,292, 1134 mm L

TUBE to bucket cylinders

2шт.

22

R17319

CLAMP

metal, tube, if used

1шт.

23

D76208

SPACER

used with metal tube clamp, if used

1шт.

24

95-6

WASHER,3/8"

flat, 3/8"

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

27

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC, if used

1шт.

28

D120679

CLAMP,Tube, 1/2"

plastic, tube, if used

1шт.

29

D73244

HOSE

30-7/16" (773 mm) long, to bucket cylinders

2шт.

30

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, male, hoses to rod end of cylinders, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING, 218-5241 tee

1шт.

32

218-586

TEE,37 Degree, 7/8"-14 x 3/4"-16, Run

male

1шт.

33

D67731

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

32" (813 mm) long, to rod end of left hand bucket cylinder, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING D67731 hose

1шт.

35

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

29" (737 mm) long, to closed end of left hand bucket cylinder

1шт.

36

D73800

HYD TUBE,0.5" OD x 22.5, 2" L

TUBE to closed end of bucket cylinders

2шт.

37

D38648

BLOCK

SPACER rubber

2шт.

38

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP tube

2шт.

39

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degree, Includes: Ref. 40

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

41

G101186

CYLINDER

bucket, right hand, See Figure 462

1шт.

42

G101187

CYLINDER

bucket, left hand, See Figure 462

1шт.

43

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Replaces 3/8" hardware used on some models Hex, 5/16"-18 x 1 1/4", G5

1шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

45

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

46

R17319

CLAMP

metal, tube, Replaces plastic clamp used in this location on some models

1шт.

47

D76208

SPACER

clamp

1шт.

48

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16" - 18 NC

1шт.
