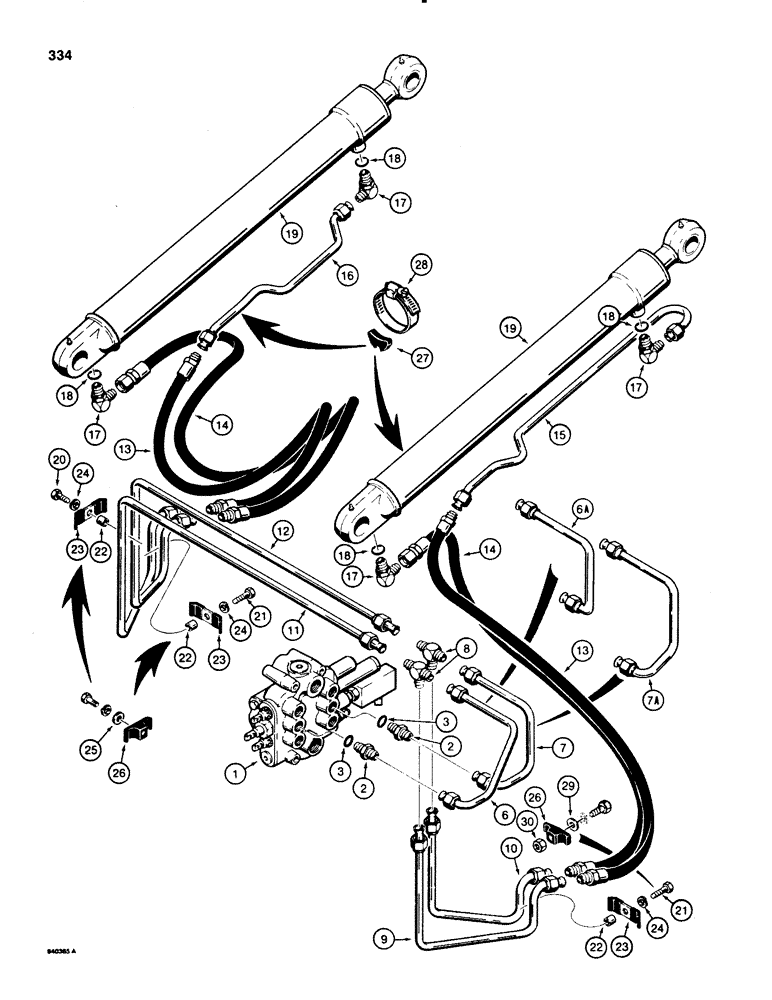

Запчасти Case 580E (334) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader, for correct assembly and components

1шт.

See Figures 390, 392 or 406

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, used with Parker control valve only, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING connector

1шт.

4

RESERVED

1шт.

5

RESERVED

1шт.

6

D87769

TUBE

to rod end of lift cylinders, used with Parker control valve only, if used

1шт.

6a

D123547

TUBE ASSY.

TUBE to rod end of lift cylinders, used with Case or Parker control valve, Replaced D123545

1шт.

7

D87771

HYD TUBE,15.88 mm OD x 154, 192 mm L

TUBE to closed end of lift cylinders, used with Parker control valve only

1шт.

7a

D123545

TUBE

to closed end of lift cylinders, used with Case control valve only, Replaced D123547

1шт.

8

218-595

TEE,7/8"-14, 37 Degree

male, right hand to left hand cylinders

2шт.

9

D92937

HYD TUBE,15.88 mm OD x 304, 291 mm L

TUBE to rod end of right hand lift cylinder

1шт.

10

D92935

HYD TUBE,15.88 mm OD x 303, 253 mm L

TUBE to closed end of right hand lift cylinder

1шт.

11

D92933

HYD TUBE,15.88 mm OD x 867, 354 mm L

TUBE to rod end of left hand lift cylinder

1шт.

12

D92931

HYD TUBE,15.88 mm OD x 829, 363 mm L

TUBE to closed end of left hand lift cylinder

1шт.

13

D38485

HOSE,12.7mm ID x 571.5mm L, SAE 100R2

22-3/4" (572 mm) long, to rod end of lift cylinders

2шт.

14

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

26" (660 mm) long, to closed end of lift cylinders

2шт.

15

D93902

HYD TUBE,0.625" OD

TUBE to rod end of right hand lift cylinder

1шт.

16

D93906

HYD TUBE,15.9 mm OD x 555, 59 mm L

TUBE to rod end of left hand lift cylinder

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, male, 90 degree, Incl. Ref. 18

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING elbow

1шт.

19

REF

INSTRUCTION

CYLINDER lift, See Figure 462

2шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

21

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

D76209

SPACER

used with metal tube clamp, if used

2-3шт.

23

D40236

CLAMP

metal, tube, if used

2-3шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

95-6

WASHER,3/8"

flat, , used with plastic tube clamp, if used 3/8"

2шт.

26

D120613

CLAMP,20mm ID

plastic, tube, if used

3шт.

27

D38648

BLOCK

SPACER rubber, single tube

2шт.

28

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube

2шт.

29

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.
