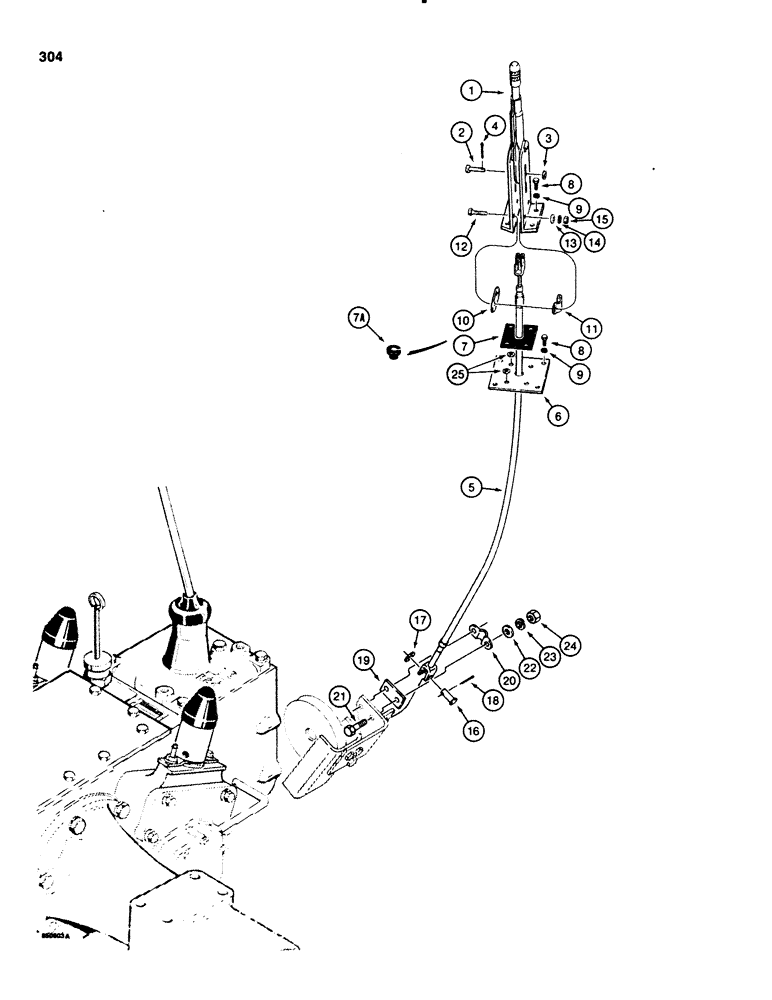

Запчасти Case 580E (304) - PARKING BRAKE, USED WITH TRANSAXLE SN 16270319 AND AFTER (07) - BRAKES

D86814

LEVER

ASSEMBLY, parking brake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY, riveted

1шт.

2

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN lever to brake cable

1шт.

3

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

D126606

CABLE ASSY.

CABLE parking brake

1шт.

6

D126625

PLATE ASSY.

PLATE lever mounting

1шт.

7

D84561

BOOT

parking brake cable, no longer available, order D120154 grommet

1шт.

7a

D120154

GROMMET

parking brake cable, Replaces item 7 boot on some models

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

D129747

PLATE

oval spacer

1шт.

11

D121608

CLAMP

parking brake cable

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

1шт.

17

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

18

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

19

D129747

PLATE

oval spacer

1шт.

20

D121608

CLAMP

parking brake cable

1шт.

21

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

195-521

WASHER,5/16", SAE

flat, plated, lever positioning, 5/16"

2шт.
