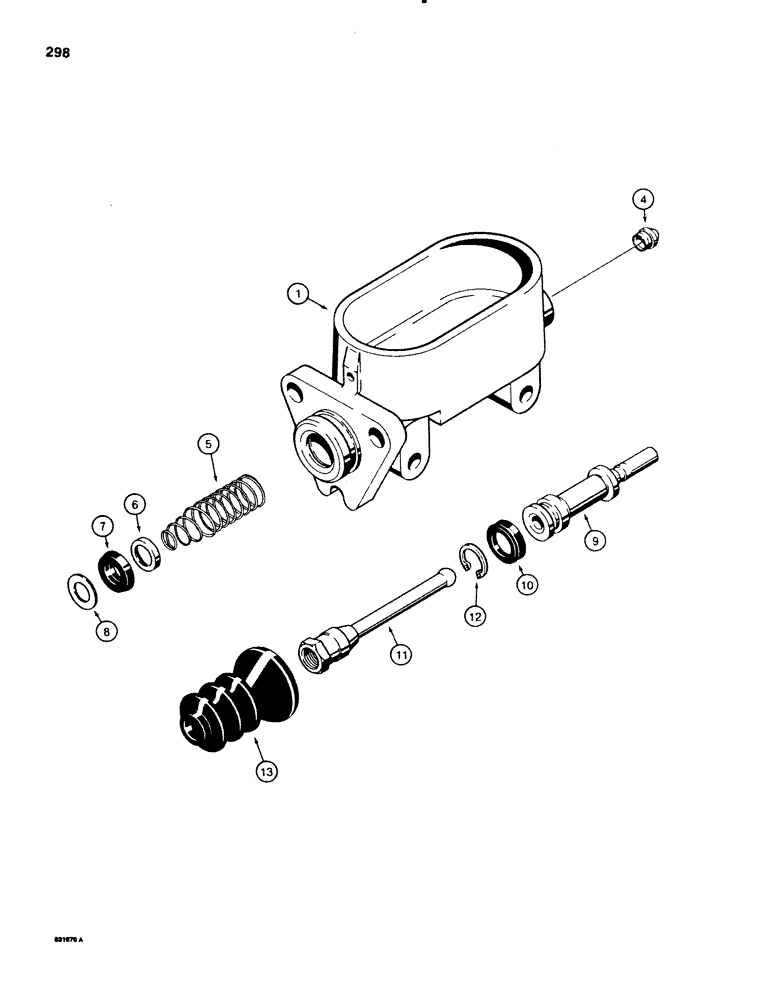

Запчасти Case 580E (298) - D127519 BRAKE MASTER CYLINDER (07) - BRAKES

D127519

CYLINDER,36.58mm Stroke

master, brake, Includes: Ref. 1 - 13

2шт.

1

NSS

NOT SOLD SEPARAT

BODY master cylinder

1шт.

2

RESERVED

1шт.

3

RESERVED

1шт.

4

N6825

SEAT

tube

1шт.

N6823

PISTON

ASSEMBLY, master cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING return

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER cup

1шт.

7

N6830

CUP

pump

1шт.

8

N6828

GUARD

PROTECTOR cup

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON master cylinder

1шт.

10

N6829

SEAL

double lip

1шт.

11

L32137

ROD

push

1шт.

12

A42256

SNAP RING,0.901", Int, #90

master cylinder 0.901", Int, #90

1шт.

13

N8819

BOOT

push rod

1шт.
