Запчасти Case 580E (012) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE

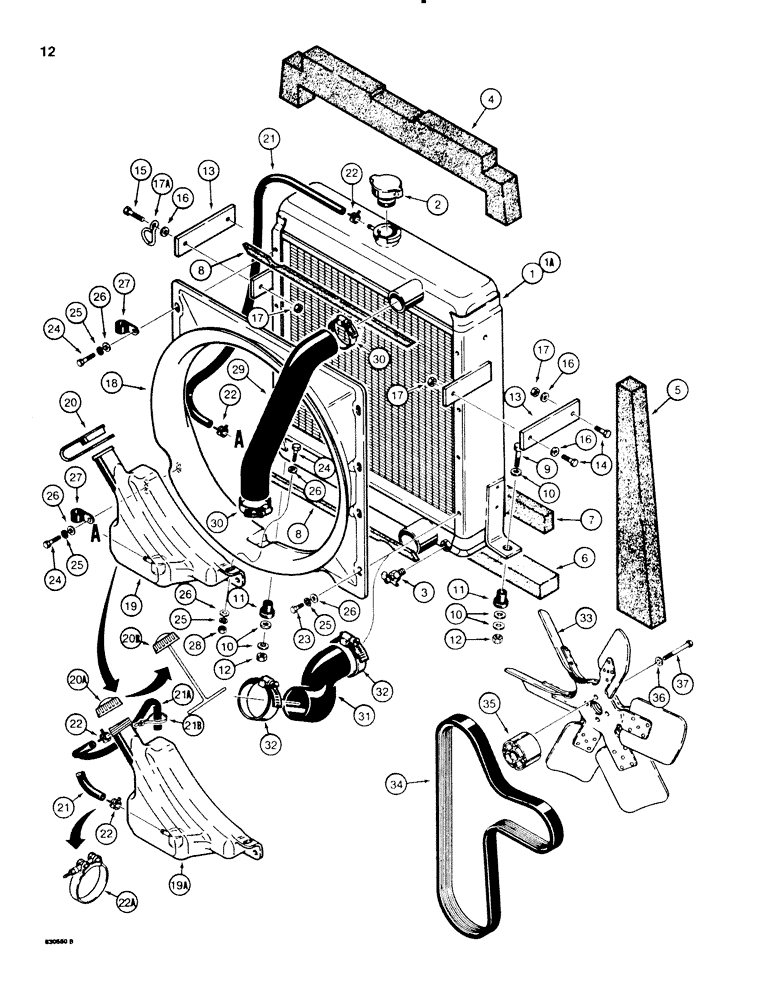

Схема запчастей Case 580E - (012) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE
20b
10
17
30
8
17
16
10
10
34
2
17a
26
13
30
21a
25
13
24
21b
14
29
21
27
15
1
23
28
1a
19a
35
12
22
5
26
22
9
19
7
8
24
32
26
37
4
21
20
32
6
11
3
17
18
26
25
25
24
20a
11
22
25
16
12
26
31
16
27
22a
36
22
33

Артикул

Название

Примечание

Количество

1

A171080

RADIATOR

engine cooling, models with air conditioning

1шт.

1a

A171356

RADIATOR

engine cooling, models without air conditioning

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

217-92

COCK

VALVE drain

1шт.

4

REF

INSTRUCTION

BAFFLE radiator, top, cut from D92228, see below, base size is 5-5/16" (135 mm) x 24-5/8" (625 mm)

1шт.

5

REF

INSTRUCTION

BAFFLE radiator, sides, cut from D92228, see below, base size is 3-3/4" (95 mm) x 22-1/4" (565 mm)

2шт.

7

REF

INSTRUCTION

BAFFLE radiator, lower front, cut from D92228, see below, base size is 1" (25 mm) x 25-3/16" (640 mm)

1шт.

8

A173165

SEALING STRIP

radiator, upper and lower

2шт.

9

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special

6шт.

11

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration, rubber

2шт.

12

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

13

A170665

STABILIZER

STRAP radiator, mounting, side

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

16

195-104

WASHER,3/8"

flat, plated, 3/8"

4шт.

17

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

4шт.

17a

D125868

MOUNTING CLIP

SUPPORT mechanical tachometer drive cable to radiator, if used

1шт.

18

A171002

DEFLECTOR

SHROUD radiator

1шт.

19

A171518

TANK

RESERVOIR coolant recovery bottle, used with A171177 cap, item 20, if used

1шт.

19a

A171805

RESERVOIR

coolant recovery bottle, used with A171775 cap, item 20A, or A184079 tethered cap, item 20B, if used

1шт.

20

A171177

PLUG

CAP snap on, reservoir, used with A171518 reservoir, item 19, if used

1шт.

20a

A171775

CAP

screw on, reservoir, used with A171805 reservoir, item 19A, no longer used, order A184079 tethered cap

1шт.

20b

A184079

CAP

tethered, screw on, reservoir, used with A171805 reservoir, if used

1шт.

21

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

- Radiator to reservoir 7.50 mm ID, 8.30 mm ID x 900.00 mm, SAE J30

1шт.

21a

D128547

HOSE,7.9 mm ID x 300.00 mm, SAE 30R6

Coolant Overflow, Used with A171805 Reservoir, If Used 7.9 mm ID x 300.00 mm, SAE 30R6

1шт.

21b

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

22

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP hose

2-3шт.

22a

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP narrow worm drive, hose

1шт.

D92228

BAFFLE

bulk pad, 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2" (38 mm) use to cut items 4 - 7, not shown

1шт.

345-44

ADHESIVE

spray can, for attaching foam pads to metal surface, not shown

1шт.

23

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm - 1.25 x 16 mm (8.8)

6шт.

24

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex head, plated, 8 mm - 1.25 x 30 mm (8.8)

3шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

9шт.

26

195-103

WASHER,5/16"

flat, plated, 5/16"

10шт.

27

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

p type, engine temperature cable above flywheel housing

2шт.

28

825-1108

NUT,Hex, M8, Cl 8

1шт.

29

A170431

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 PER SAE J20 OR SAE 20R4 CLASS D-1 OR D-2

45.00 mm ID x 265.00 mm , SAE 20R4 per SAE J20, Upper

1шт.

30

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP upper hose

2шт.

31

A170632

RADIATOR HOSE,58.00 mm ID x 173.00 mm, SAE 20R4 PER SAE J20 OR SAE 20R4 CLASS D1 or D2

58.00 mm ID x 173.00 mm, SAE 20R4 per SAE J20, Lower

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP lower hose

2шт.

33

A171552

FAN

suction, six blade, double spider

1шт.

34

J903099

V-BELT,3.56 mm W x 1574.80 mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

D101856

SPACER

KIT, spacer, fan, Includes: Ref. 35 - 37

1шт.

35

A172589

SPACER

fan

1шт.

36

H426775

WASHER

flat, hardened, plated

4шт.

37

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

hex 8 - 1.25 x 80 mm, class 10.9

4шт.
