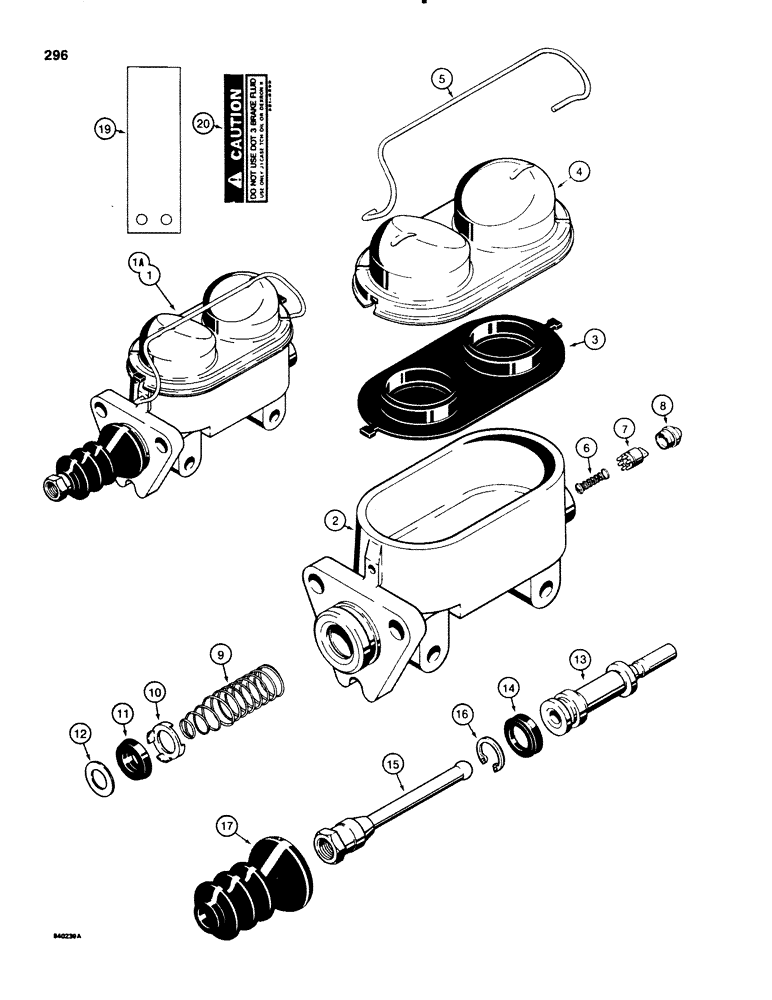

Запчасти Case 580E (296) - D120090 AND D126695 BRAKE MASTER CYLINDERS (07) - BRAKES

1

D120090

CYLINDER

master, brake, no longer available, order D126695

1шт.

master cylinder

2шт.

1a

D126695

MASTER CYLINDER

CYLINDER master, brake, Includes: Ref. 2 - 20

2шт.

2

NSS

NOT SOLD SEPARAT

BODY master cylinder

1шт.

3

N6832

GASKET

diaphragm, filler cap

1шт.

4

N6833

COVER

filler cap, Replaced NSS

1шт.

5

N6831

BAIL

filler cap

1шт.

6

N6824

SPRING

valve

1шт.

7

N6827

VALVE

residual

1шт.

8

N6825

SEAT

tube

1шт.

N6823

PISTON

ASSEMBLY, brake master cylinder, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING return

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER cup

1шт.

11

N6830

CUP

pump

1шт.

12

N6828

GUARD

PROTECTOR cup

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON master cylinder

1шт.

14

N6829

SEAL

double lip

1шт.

15

L32137

ROD

push

1шт.

16

A42256

SNAP RING,0.901", Int, #90

master cylinder 0.901", Int, #90

1шт.

17

N8819

BOOT

push rod

1шт.

18

321-6398

DECAL

caution, brake fluid, D120090 cylinder, not shown, See Figure 670, item 31

1шт.

D127086

PLATE ASSY.

DECAL ASSEMBLY, brake fluid, D126695 cylinder, Includes: Ref. 19 - 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE decal, right hand cylinder

1шт.

20

321-6398

DECAL

caution, brake fluid

1шт.
