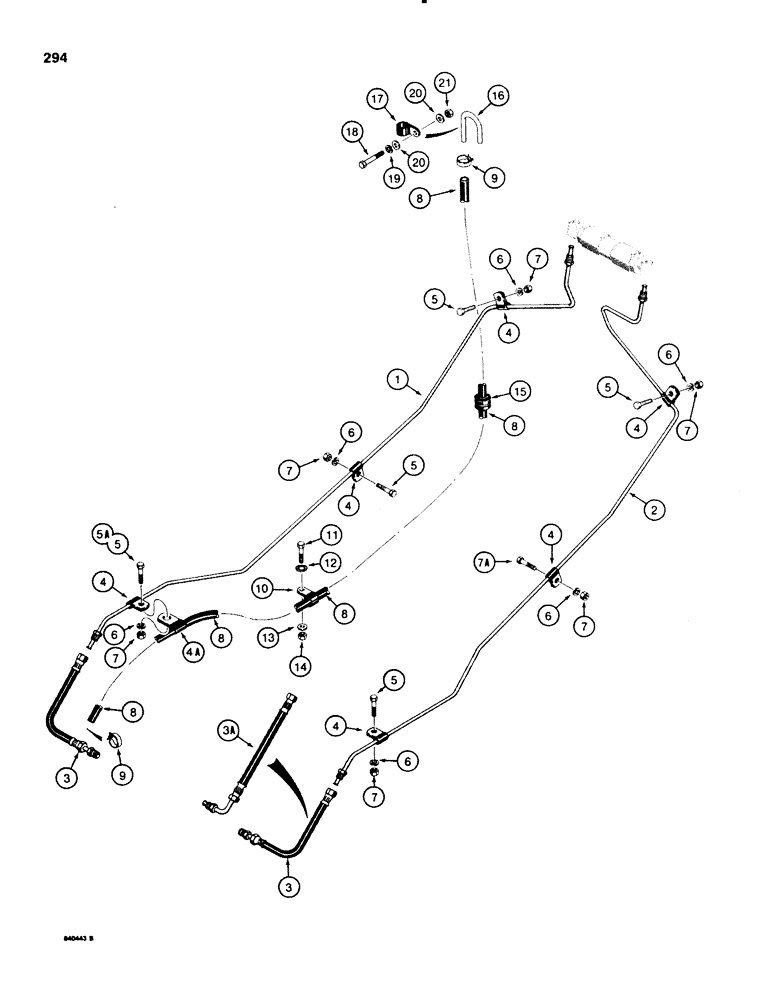

Запчасти Case 580E (294) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT, EQUALIZER VALVE TO BRAKE CYL. TRACTOR PIN 9869266 & AFTER (07) - BRAKES

1

D127480

TUBE

horizontal, left hand master cylinder to brake cylinder hose

1шт.

2

D127523

TUBE ASSY.

TUBE horizontal, right hand master cylinder to brake cylinder hose

1шт.

3

D66741

HOSE,6.35mm ID x 270mm L

10" (254 mm) long, tube to brake cylinder, used on models with transaxle SN 16270319 and after, transaxle with unit actuator brake, See Figure 202 for transaxle

2шт.

3a

D126980

HOSE ASSY.

HOSE, 8-11/16" (221 mm) long, tube to brake cylinder, used on models with transaxle SN 16251570 thru 16270318, transaxle without unit actuator brake, See Figure 198 for transaxle, Replaced hose with straight ends on some models

2шт.

4

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

p type, tube

6шт.

4a

49838

CLAMP

p type, used on models with item 8 vent hose, no longer used, not required

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4-5шт.

5a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used on models with item 8 vent hose Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

7a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

8

REF

INSTRUCTION

HOSE, 1/4" (6 mm) ID x 55-1/8" (1400 mm) long, cut to required length from D134170 bulk hose, see below, vent, used on models with dry brake transaxle SN 16270319 thru 16276841

1шт.

For brake actuator vent hose, see transaxle and differential lock on Figure 202.

1шт.

9

F64936

CLAMP

vent hose, if used

2шт.

10

49838

CLAMP

p type, used on models with item 8 vent hose, if used

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

193-72

LOCK WASHER

internal external tooth lock, plated, 3/8"

1шт.

13

195-525

WASHER,3/8", SAE

flat, plated, 3/8", if used

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

D67915

GROMMET

rubber, vent hose, if used

1шт.

16

D133917

TUBE

vent, used on models with dry brake transaxle SN 16270319 thru 16276841

1шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

p type, vent tube, at brake pedal mounting bracket, if used

1шт.

18

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

If used Hex, 3/8"-16 x 1 3/8", G5

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

20

195-525

WASHER,3/8", SAE

flat, plated, 3/8", if used

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.

D134170

HOSE,6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

1шт.
