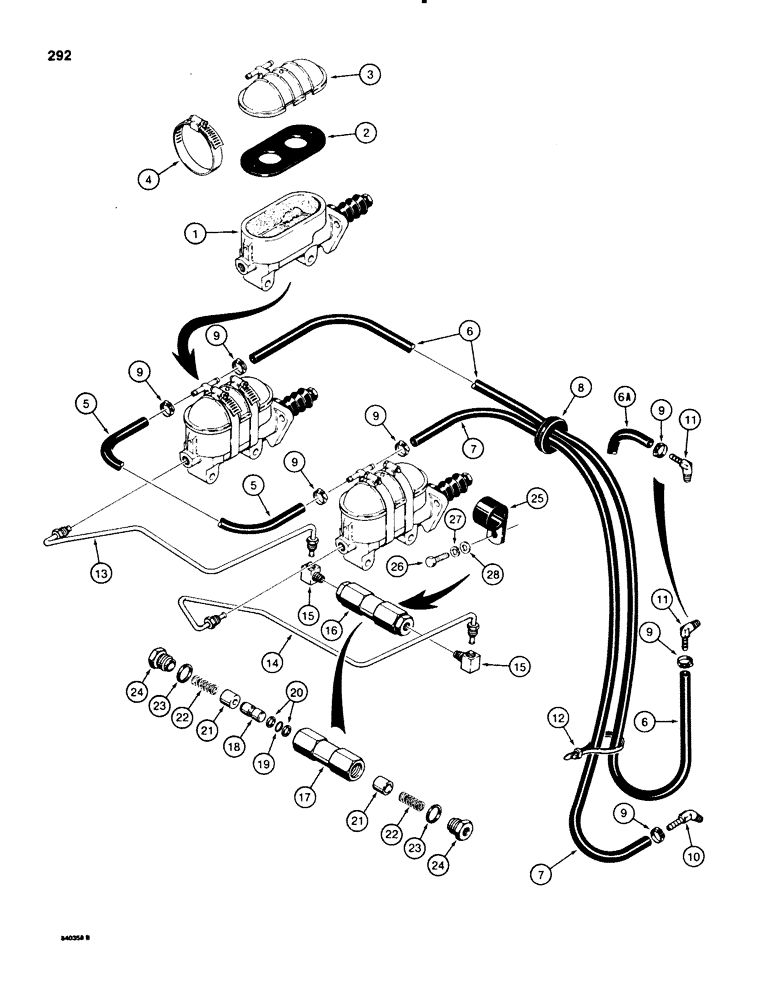

Запчасти Case 580E (292) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT, TRACTOR PIN 9869266 AND AFTER (07) - BRAKES

1

D127519

CYLINDER,36.58mm Stroke

master, brake, See Figure 298

2шт.

2

D128313

GASKET

master cylinder

2шт.

3

D127405

COVER

master cylinder

2шт.

4

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP cover to master cylinder, includes screw

4шт.

5

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

Cylinder Connecting 0.25" ID x 7.20", SAE 30R6 or SAE 30R7

1шт.

6

D128689

HYDRAULIC HOSE,6.75 mm ID x 1500.00 mm, SAE 30R6 or SAE 30R7

Cylinder to Hydraulic Oil Filter Return Tube, Attaches in side port of elbow at hydraulic oil filter, See Figure 330 6.75 mm ID x 1500.00 mm, SAE 30R6 or SAE 30R7

1шт.

6a

D134170

HOSE,6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

Cylinder to Hydraulic Oil Filter Return Tube, Attaches in Top Port of Elbow at Hydraulic Oil Filter, See Figure 330 6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

1шт.

7

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

FUEL HOSE, , Cylinder to Hydraulic Oil Filter 6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

8

D67915

GROMMET

rubber

1шт.

9

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

6шт.

10

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Brass 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

For further hydraulic related parts, see equipment hydraulic system return lines on Figures 324 330.

1шт.

11

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

barb, brass, 90 degree

1шт.

For further hydraulic related parts, see equipment hydraulic system return lines on Figures 324 330.

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

13

D127478

TUBE

vertical, to left hand master cylinder

1шт.

14

D127474

TUBE ASSY.

TUBE vertical, to right hand master cylinder

1шт.

15

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

tubes to equalizer valve

2шт.

16

D126650

VALVE

equalizer, Includes: Ref. 17 - 24

1шт.

17

NSS

NOT SOLD SEPARAT

BODY equalizer valve

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON equalizer valve

1шт.

19

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

O RING piston

1шт.

20

N9058

BACK-UP RING,0.424" ID x 0.63" OD x 0.103"

backup, piston O ring

2шт.

21

NSS

NOT SOLD SEPARAT

RETAINER spring

2шт.

22

NSS

NOT SOLD SEPARAT

SPRING piston

2шт.

23

A16673

GASKET

plug, copper

2шт.

24

NSS

NOT SOLD SEPARAT

PLUG equalizer valve end

2шт.

25

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

p type, equalizer valve, mounts to firewall

1шт.

26

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.
