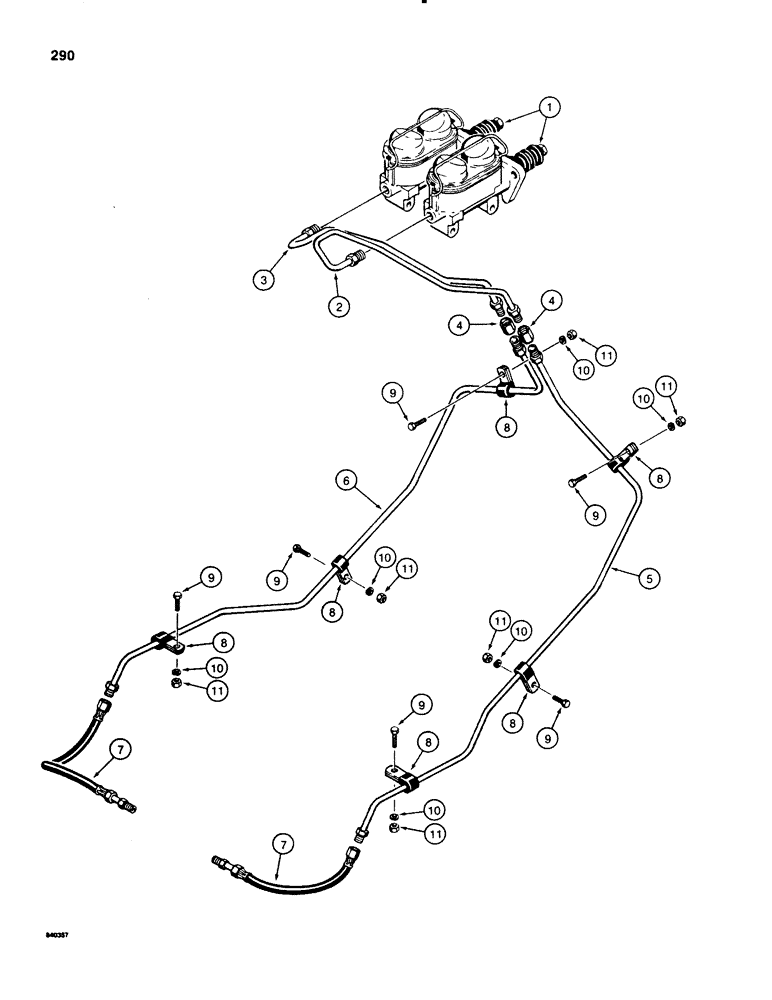

Запчасти Case 580E (290) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT, BEFORE TRACTOR PIN 9869266 (07) - BRAKES

1

REF

INSTRUCTION

CYLINDER master, brake, See Figure 296

2шт.

2

D91667

TUBE,6.35 mm OD x 195, 287 mm L

from right hand master cylinder

1шт.

3

D91669

TUBE,6.35 mm OD x 119, 242 mm L

from left hand master cylinder

1шт.

4

222-1053

HYD CONNECTOR,1/4" Inv Fl

CONNECTOR straight, female, brake tubes

2шт.

5

D83965

TUBE,6.35 mm OD x 799, 435 mm L

to right hand brake

1шт.

6

D83967

TUBE,6.35 mm OD x 799, 435 mm L

to left hand brake

1шт.

7

D66741

HOSE,6.35mm ID x 270mm L

brake

2шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

brake tubes

6шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.
