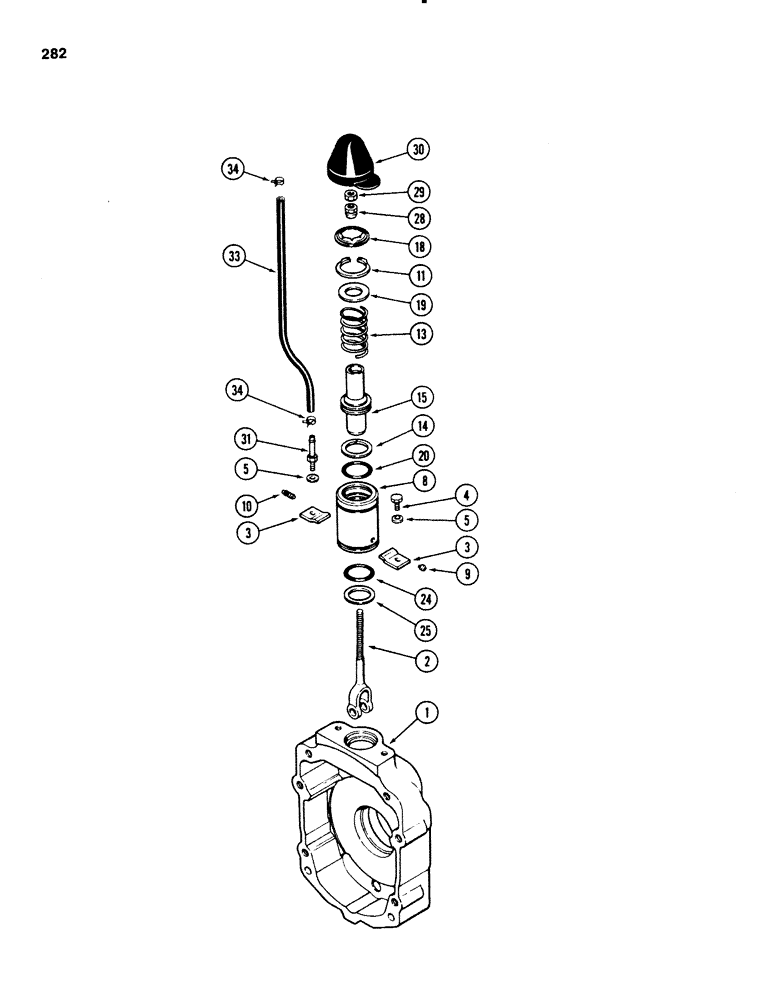

Запчасти Case 580E (282) - TRANSAXLE DIFFERENTIAL BRAKE ACTUATOR, TRANSMISSION SERIAL NO 16270319 AND AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING brake, See Figures 276 and 278

2шт.

2

A168817

STEM

ROD pull, brake actuating

2шт.

3

A168909

LARGE PLATE

PLATE clamp, actuator

4шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

See note Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

Right hand side has one breather bolt and one hex bolt. Left hand side has two breather bolts.

1шт.

5

195-25

WASHER,3/8"

flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

A168974

ACTUATOR

ASSEMBLY, brake, Includes: Ref. 8 - 25

2шт.

A168974R

REMAN-BRAKE ASSY.

580SE, S/N 16270319 AND AFTER

2шт.

A168974C

CORE

Return Number

1шт.

8

A52266

HOUSING

piston

1шт.

9

S114301

INSERT

seat

1шт.

10

S114300

BLEEDER,3/8" - 24 x 1.17"

SCREW bleed

1шт.

11

A52276

RETAINER

RING retainer

1шт.

13

A52272

SPRING

piston

1шт.

14

A52271

SEALING RING

RING backup, piston

1шт.

15

A52267

PISTON

actuator

1шт.

A52277

PACKAGE

KIT, repair, piston, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER spring, Reference No. A52275

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER flat, 2 inch (51 mm) OD, Reference No. A52273

1шт.

20

NSS

NOT SOLD SEPARAT

O RING piston, 1-1/2 inch (38 mm) ID, Reference No. A52270

1шт.

24

NSS

NOT SOLD SEPARAT

O RING housing, 1-5/8 inch (41 mm) OD, Reference No. A52269

1шт.

25

NSS

NOT SOLD SEPARAT

RING back up, Reference No. A52268

1шт.

28

A157951

NUT

hex, pull rod

2шт.

29

25-157

JAM NUT,Jam, 7/16"-20, G5

hex jam, 7/16 inch NF

2шт.

30

A179594

BOOT

SEAL dust

2шт.

31

A182270

FITTING

bolt, breather, Transmission Serial No. 16270319 to 16276842, See Note

3шт.

Right hand side has one breather bolt and one hex bolt. Left hand side has two breather bolts.

1шт.

33

D134065

HOSE

breather, 1/4", 6 mm, ID x 21-5/8" (550 mm) long, Used with Ref 31

1шт.

Order D134170 and, Serial Range: cut-length

1шт.

34

F64936

CLAMP

hose

2шт.

D134170

HOSE,6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

1шт.
