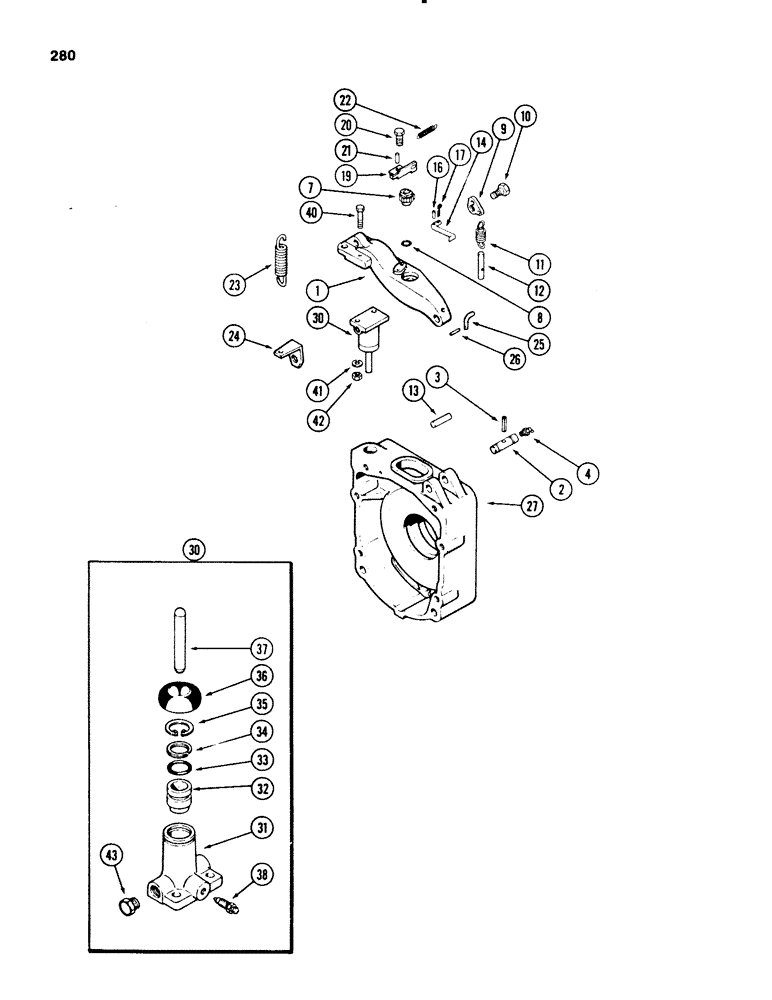

Запчасти Case 580E (280) - TRANSAXLE DIFFERENTIAL BRAKE LEVER, PRIOR TO TRANSMISSION SN 16270319 (06) - POWER TRAIN

1

A154640

LEVER

brake

2шт.

2

A154569

PIN

pivot

2шт.

3

138-2028

PIN,3/16" x 1 1/4", Coiled

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

A62230

NUT

ratchet, brake adjusting

2шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

O RING fitting

2шт.

9

A64490

CAM

self adjusting, brake

2шт.

10

A58471

STEP BOLT

BOLT cam pivot

2шт.

11

A60489

SPRING

adjusting cam

2шт.

12

A61216

ROD

cam stop

2шт.

13

A153728

PIN

spring anchor, 3-13/16 inch long (97 mm)

2шт.

14

A59607

ROD

lock ratchet

2шт.

16

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN roll, 1/16 x 1/2 inch

2шт.

17

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

19

A59609

BRACKET

self adjusting brake

2шт.

20

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

21

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

22

A60555

SPRING

return, ratchet rod

2шт.

23

A35789

SPRING

brake return

2шт.

24

A155840

BRACKET

anchor, return spring

2шт.

25

A59319

STUD

spring retaining

2шт.

26

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

27

REF

INSTRUCTION

HOUSING brake, See Figure 274

2шт.

30

A168473

CYLINDER ASSY.

CYLINDER ASSEMBLY, brake, with green boot, differential brake cylinder

2шт.

30

A62483

CYLINDER

ASSEMBLY, brake, with white boot mark, 168473, differential brake cylinder, Includes: Ref. 31 - 38

2шт.

31

NSS

NOT SOLD SEPARAT

BODY cylinder, differential brake cylinder

1шт.

32

A45383

PISTON

ASSEMBLY, cylinder, differential brake cylinder

1шт.

33

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

O RING piston, differential brake cylinder

1шт.

Part of Wheel Cylinder Repair Kit, P/N A48971

1шт.

Part of Wheel Cylinder Repair Kit, P/N A42258

1шт.

34

A42252

SEALING RING

RING o ring backup, differential brake cylinder

1шт.

Part of Wheel Cylinder Repair Kit, P/N A48971

1шт.

Part of Wheel Cylinder Repair Kit, P/N A42258

1шт.

35

A42256

SNAP RING,0.901", Int, #90

piston, differential brake cylinder 0.901", Int, #90

1шт.

Part of Wheel Cylinder Repair Kit, P/N A48971

1шт.

Part of Wheel Cylinder Repair Kit, P/N A42258

1шт.

36

A48972

BRAKE

BOOT cylinder weatherseal, green, differential brake cylinder, Replaces A42255

1шт.

Part of Wheel Cylinder Repair Kit, P/N A48971

1шт.

Part of Wheel Cylinder Repair Kit, P/N A42258

1шт.

37

A42254

ROD

push, differential brake cylinder

1шт.

38

A41491

BLEEDER,1/4" - 28 x 23.37mm

cylinder bleeder, differential brake cylinder

1шт.

A48971

KIT

repair, wheel cylinder, with green boot, differential brake cylinder, Includes: Ref. 33 - 36

2шт.

A42258

KIT

repair, wheel cylinder, with white boot mark, differential brake cylinder, Includes: Ref. 33 - 36

2шт.

40

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Differential brake cylinder Hex, 1/4"-20 x 1 1/4", G5

4шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Differential brake cylinder 1/4"

4шт.

42

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Differential brake cylinder

4шт.

43

222-1062

PLUG,7/16"-24, Inv Fl

- cylinder, differential brake cylinder 7/16"-24, Inv Fl

2шт.
