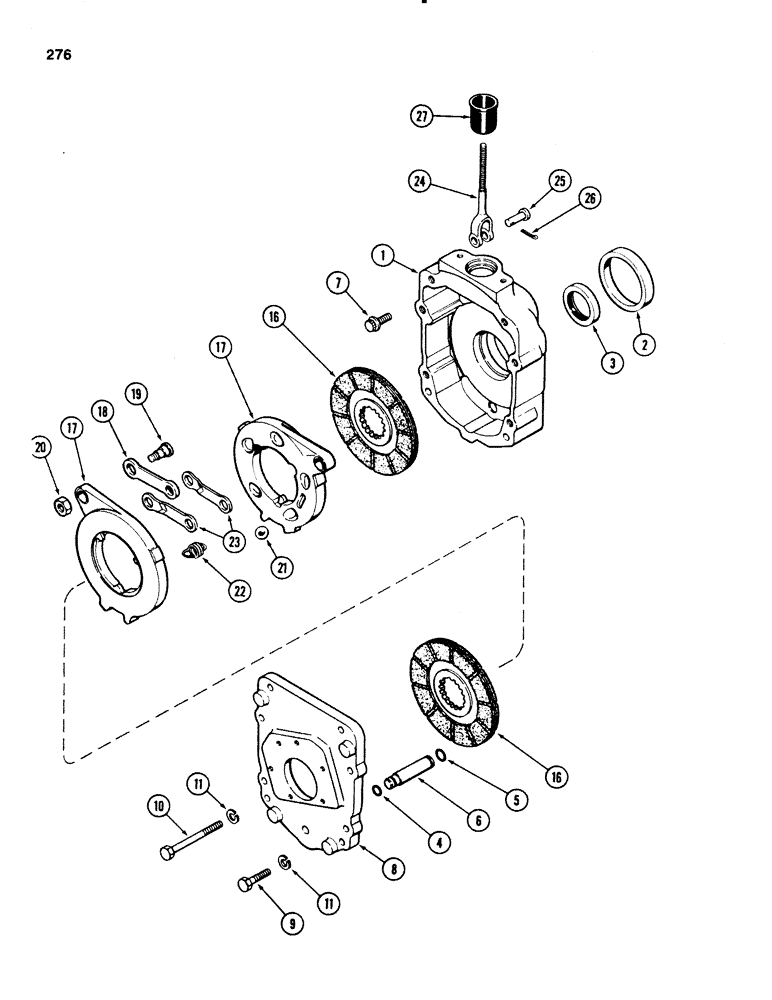

Запчасти Case 580E (276) - TRANSAXLE DIFFERENTIAL BRAKE HOUSING AND BRAKE, TRANSMISSION SN16270319 -16276842 (06) - POWER TRAIN

1

A179102

HOUSING

ASSEMBLY, brake, Includes: Ref. 2

2шт.

2

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP bearing, 4-7/16 inch OD (113 mm)

1шт.

3

A179054

OIL SEAL,63.54mm ID x 88.82mm OD x 12mm Thk

SEAL oil

1шт.

4

A182413

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

O RING anchor pin, 5/8 inch (16 mm) ID

2шт.

5

A64436

O-RING,0.549" ID x 0.755" OD

O RING anchor pin, 3/4 inch (19 mm) ID

2шт.

6

A182439

AXLE PIN

PIN spring anchor

2шт.

7

A156878

12 PT SCREW

BOLT 12 point head, housing

4шт.

8

A168821

COVER

brake housing, right hand

1шт.

8

A168822

COVER

brake housing, left hand, right hand shown

1шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

11

92-8

LOCK WASHER,1/2"

16шт.

A168628

BRAKE

ASSEMBLY, disc, Includes: Ref. 16 - 23

2шт.

16

A153982

DISC

ASSEMBLY, brake

2шт.

17

A41860

DISC

brake, actuating

2шт.

18

A41861

LINK

actuating, disc

2шт.

19

A41865

BOLT

BOLT actuating, disc

2шт.

20

A42801

JAM NUT

hex jam, 1/2 inch NF

2шт.

21

211-223

BALL,1" Dia

actuating, 1 inch diameter (25 mm)

5шт.

22

A47719

SPRING

disc tension

3шт.

23

A48952

LINK

actuating, disc

2шт.

24

A168817

STEM

ROD pull, brake actuating

2шт.

25

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN clevis rod to brake links

2шт.

26

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

A179595

BOOT

SEAL dust, brake housing

2шт.
