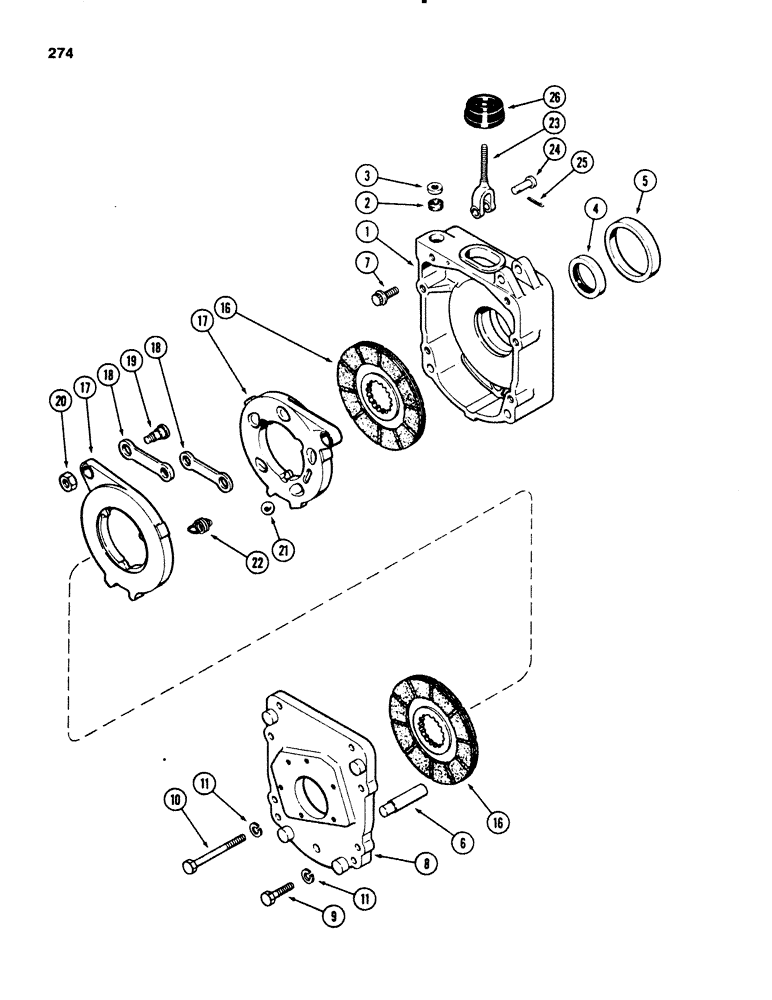

Запчасти Case 580E (274) - TRANSAXLE DIFFERENTIAL BRAKE HOUSING AND BRAKE, PRIOR TO TRANSMISSION SN 16270319 (06) - POWER TRAIN

1

A168292

HOUSING

ASSEMBLY, brake, right hand, Includes: Ref. 2 - 5

1шт.

1

A168294

HOUSING

ASSEMBLY, brake, left hand, Right hand shown, Includes: Ref. 2 - 5

1шт.

2

A30011

SEAL

lube felt, 13/16 inch (21 mm) OD

1шт.

3

A155602

SEAL

dirt, 27/32 inch (21 mm) OD

1шт.

4

A179054

OIL SEAL,63.54mm ID x 88.82mm OD x 12mm Thk

SEAL oil, 3-1/2 inch (89 mm) OD

1шт.

5

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP bearing, 4-7/16 inch OD (113 mm)

1шт.

6

A153728

PIN

spring anchor, 3-13/16 inch long (97 mm)

2шт.

7

A156878

12 PT SCREW

BOLT, 12 point, 1/2 NC x 1-1/4 inch

4шт.

8

A168296

COVER

brake housing, right hand, Replaces A153731

1шт.

8

A168297

COVER

brake housing, left hand, right hand shown, Replaces A153732

1шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

11

92-8

LOCK WASHER,1/2"

16шт.

A168628

BRAKE

ASSEMBLY, differential, Replaces A155872, Includes: Ref. 16 - 22

2шт.

16

A153982

DISC

ASSEMBLY, brake

2шт.

17

A41860

DISC

brake actuating

2шт.

18

A41861

LINK

actuating disc

2шт.

19

A41865

BOLT

BOLT actuating disc

2шт.

20

A42801

JAM NUT

hex jam, 1/2 inch NF

2шт.

21

211-223

BALL,1" Dia

actuating, 1 inch diameter (25 mm)

5шт.

22

A47719

SPRING

disc tension

3шт.

23

A168382

ROD

brake actuating

2шт.

24

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN clevis rod to brake links

2шт.

25

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

26

A146418

COVER

SEAL dust, brake housing

2шт.
