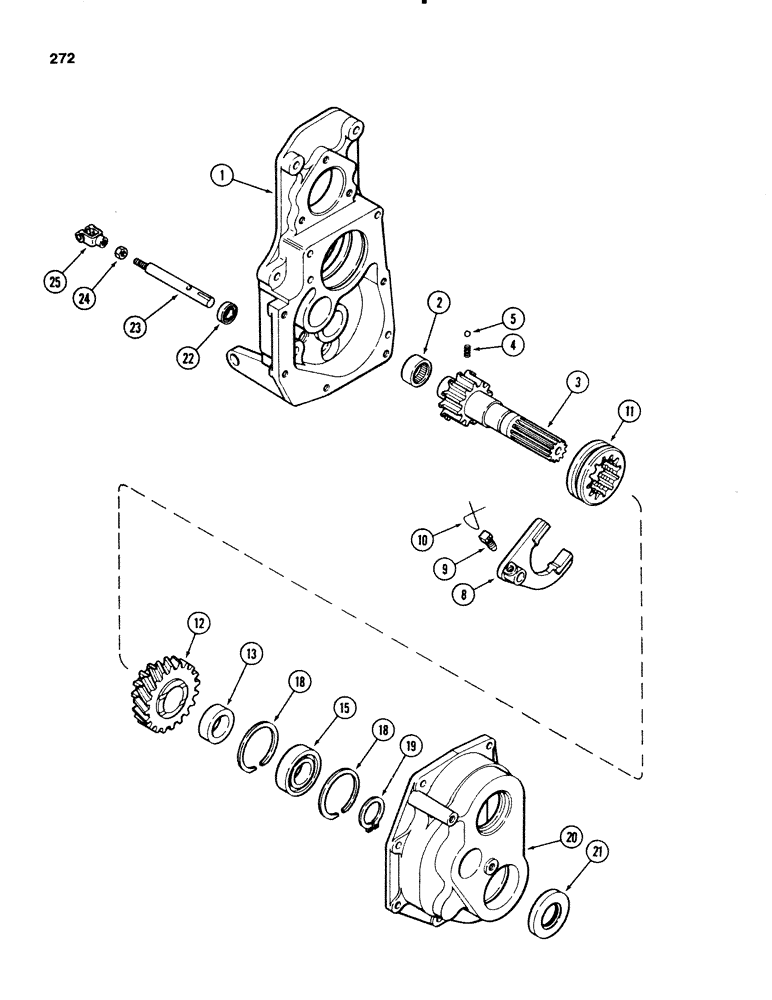

Запчасти Case 580E (272) - TRANSAXLE SHIFT MECHANISM & OUTPUT SHAFT, 4 WHEEL DRIVE, TRANSMISSION SN 16270319 AND AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING transfer gearbox, See Figure 266

1шт.

2

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING output shaft, rear

1шт.

3

A156220

SHAFT

output

1шт.

4

A156269

SPRING

detent

3шт.

5

211-7

BALL,1/4" Dia

- detent (6 mm) 1/4" Dia

3шт.

8

A51951

FORK

shifter

1шт.

9

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

shifter fork locking

1шт.

10

A29966

ELECTRICAL WIRE

WIRE screw to shift fork, locking

1шт.

11

A156258

COLLAR

output shaft

1шт.

12

A156253

GEAR

output, 19 teeth

1шт.

13

A156278

SPACER

gear, 0.611 inch (15.52 mm)

1шт.

13

A156277

SPACER

gear, 0.616 inch (15.64 mm)

1шт.

13

A156276

SPACER

gear, 0.621 inch (15.78 mm)

1шт.

13

A156250

SPACER

gear, 0.626 inch (15.90 mm)

1шт.

15

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING output shaft, front

1шт.

18

A27579

RING

bearing to cover retaining

2шт.

19

A144595

SNAP RING,#156, Ext

Ring, Snap, , output shaft #156, Ext

1шт.

20

REF

INSTRUCTION

COVER transfer gearbox, See Figure 266

1шт.

21

A51948

OIL SEAL

SEAL output shaft

1шт.

22

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

shift fork oil

1шт.

23

A156259

RAIL ASSY.

RAIL shift fork

1шт.

24

129-123

NUT,3/8"-24, G5

1шт.

25

T40057

YOKE

shifter rail

1шт.
