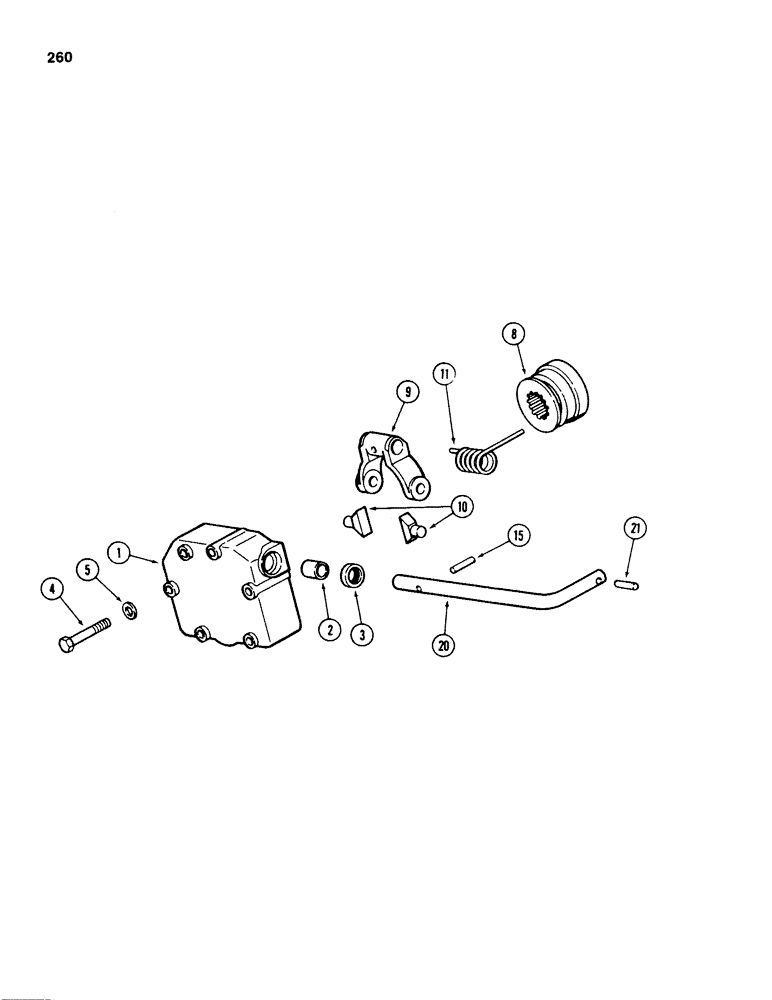

Запчасти Case 580E (260) - TRANSAXLE DIFFERENTIAL LOCK, TRANSMISSION SERIAL NO.16270319 AND AFTER (06) - POWER TRAIN

1

A168525

COVER ASSY

COVER ASSEMBLY, lock, on right brake housing, Includes: Ref. 2 - 3

1шт.

2

B15768

BUSHING

cover

1шт.

3

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

oil

1шт.

4

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

5

195-103

WASHER,5/16"

flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

6шт.

8

A156373

COLLAR

differential lock

1шт.

9

A168524

LEVER

collar throw out

1шт.

10

A38750

FINGER

S, Serial Range: lever-collar

2шт.

11

A156559

SPRING

throw out lever

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

20

A157734

SHAFT

actuating

1шт.

21

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.
