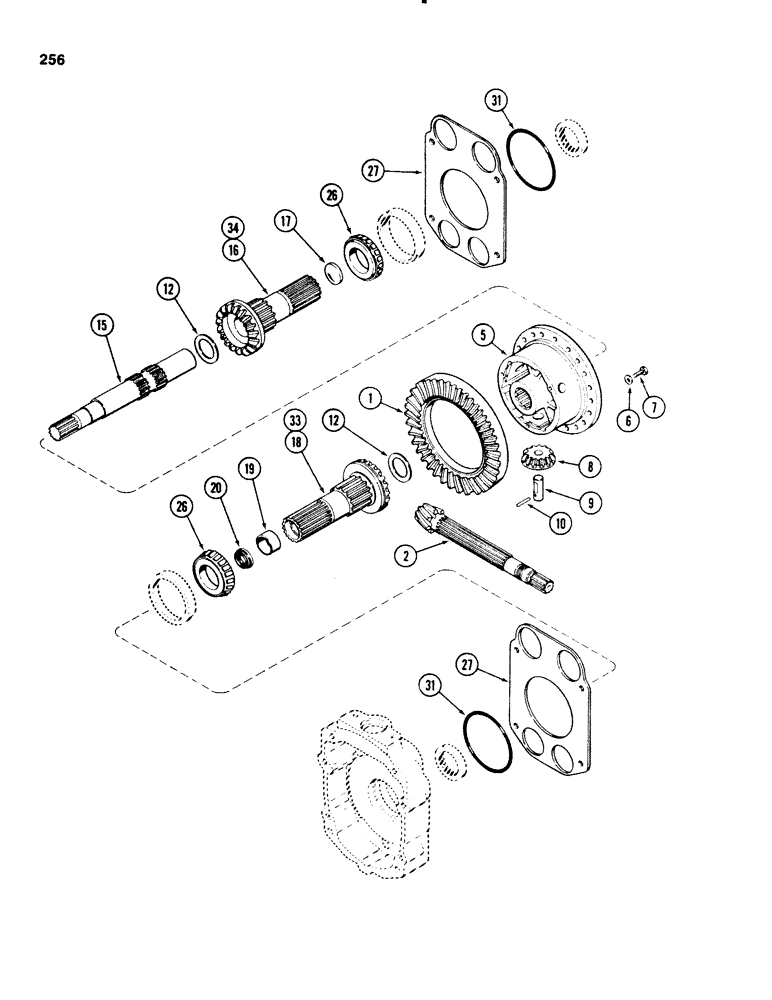

Запчасти Case 580E (256) - TRANSAXLE DIFFERENTIAL, TRANSMISSION SERIAL NO. 16270319 AND AFTER (06) - POWER TRAIN

A168883

GEAR, BEVEL

GEAR pinion and ring, differential, Matched Set, Includes: Ref. 1 - 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, Reference No. A168100

1шт.

2

NSS

NOT SOLD SEPARAT

PINION bevel, Reference No. A168824

1шт.

5

A179986

HUB

WHEEL center

1шт.

6

A155847

WASHER

wheel bolt

20шт.

7

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT hex, 3/8 NF x 7/8 inch

20шт.

8

A179762

PINION

GEAR pinion

3шт.

9

A153711

PIN,22.16mm OD x 62.74mm L

pinion gear

3шт.

10

A140705

PIN

groove, 3/16 x 2 inch

3шт.

12

A154141

WASHER

thrust, center wheel, 0.079 inch (2.01 mm)

1шт.

12

A153717

WASHER

thrust, center wheel, 0.084 inch (2.13 mm)

1шт.

12

A153712

WASHER

thrust, center wheel, 0.089 inch (2.26 mm)

1шт.

12

A153713

WASHER

thrust, center wheel, 0.094 inch (2.40 mm)

1шт.

12

A153714

WASHER

thrust, center wheel, 0.099 inch (2.52 mm)

1шт.

12

A153715

WASHER

thrust, center wheel, 0.104 inch (2.66 mm)

1шт.

12

A153716

WASHER

thrust, center wheel, 0.109 inch (2.78 mm)

1шт.

15

A156376

SHAFT

cross, Replaces A153706

1шт.

16

A158745

GEAR

ASSEMBLY, side, left hand, Transmission Serial No. 16270319 to 16276842, Includes: Ref. 17

1шт.

17

41-1028

PLUG,Cup, 1 3/4"

expansion, 1 3/4 inch, 44 mm

1шт.

18

A179107

GEAR

ASSEMBLY, side, right hand, Transmission Serial No. 16270319 to 16276842, Includes: Ref. 19

1шт.

19

A153719

BUSHING,38.16mm ID x 44.55mm OD x 20.65mm L

Gear

1шт.

20

A179053

OIL SEAL

oil, right hand side gear

2шт.

26

A7891

ROLLER BEARING

CONE bearing, 2-1/2 inch ID (64 mm)

2шт.

27

A179076

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

27

A179075

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

27

A179077

SHIM

bearing carrier, 0.010 inch (0.26 mm)

1шт.

31

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O RING housing

2шт.

33

1342927C1

GEAR

ASSEMBLY, side, right hand , Includes Ref 19, Transmission Serial No. 16276842 and after, Replaced A182283

1шт.

34

1342925C1

GEAR

side, left hand, Transmission Serial No. 16276842 and after, Replaced A182286

1шт.
