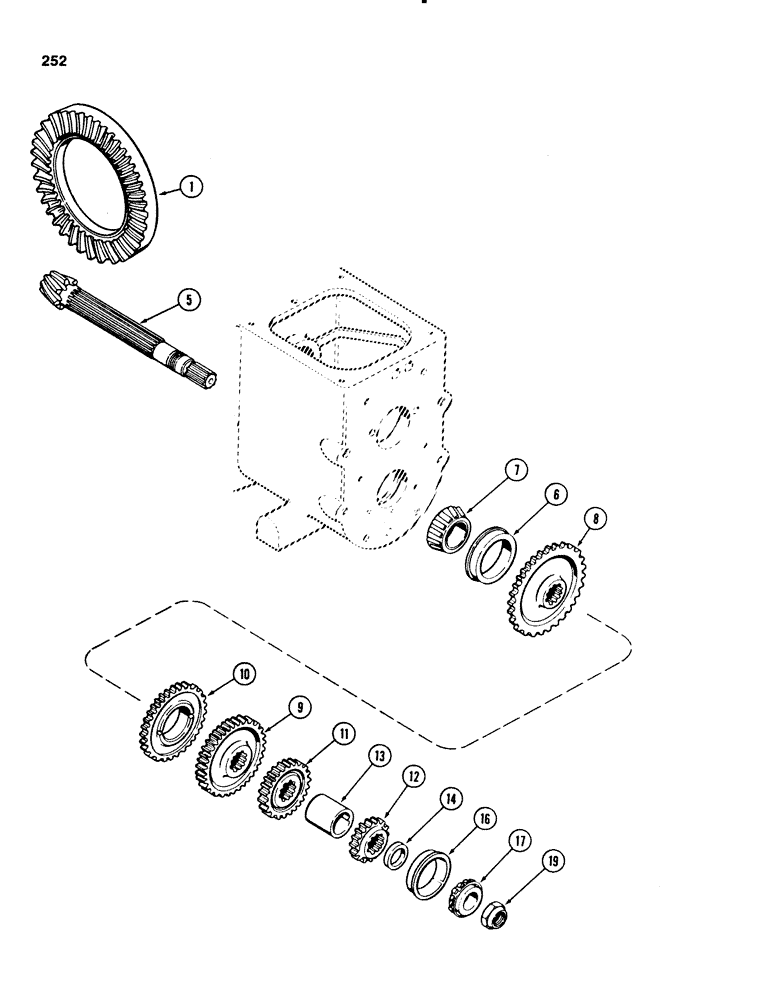

Запчасти Case 580E (252) - TRANSAXLE COUNTERSHAFT, 2 AND 4 WHEEL DRIVE, TRANSMISSION SN 16270319 & AFTER (06) - POWER TRAIN

A168883

GEAR, BEVEL

GEAR pinion and ring, transaxle, Matched set, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, Reference No. A168100

1шт.

5

NSS

NOT SOLD SEPARAT

PINION bevel, Reference No. A168824

1шт.

6

A153753

ROLLER BEARING,88.92mm OD x 23.02mm W

CUP bearing, rear, with snap ring, 3-1/2 inch OD (89 mm)

1шт.

7

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE bearing, rear, 1-5/8 inch ID (41 mm)

1шт.

8

A153751

GEAR

first, 47 external and 10 internal teeth

1шт.

9

A51961

GEAR

second, 38 external and 10 internal teeth

1шт.

10

A157304

GEAR

oil slinger, 38 external teeth, Replaces A51962

1шт.

11

A51960

GEAR

third, 28 external and 10 internal teeth

1шт.

12

A154649

GEAR

fourth, 29 external and 10 internal teeth

1шт.

13

A51959

SPACER

third and fourth gears, 1-5/8 x 2-5/16 x 2-3/16 inch (41 x 59 x 56 mm)

1шт.

14

A179800

SPACER

thrust, 0.248 0.25 inch (6.30 - 6.35 mm)

1шт.

14

A179799

SPACER

thrust, 0.245 0.243 inch (6.22 - 6.17 mm)

1шт.

14

A179798

SPACER

thrust, 0.240 0.238 inch (6.10 - 6.05 mm)

1шт.

14

A179797

SPACER

thrust, 0.235 0.233 inch (5.97 - 5.92 mm)

1шт.

14

A179796

SPACER

thrust, 0.230 0.228 inch (5.84 - 5.79 mm)

1шт.

14

A179795

SPACER

thrust, 0.225 0.223 inch (5.72 - 5.66 mm)

1шт.

14

A179794

SPACER

thrust, 0.220 0.218 inch (5.59 - 5.54 mm)

1шт.

14

A179793

SPACER

thrust, 0.215 0.213 inch (5.46 - 5.41 mm)

1шт.

14

A179792

SPACER

thrust, 0.210 0.208 inch (5.33 - 5.28 mm)

1шт.

14

A179791

SPACER

thrust, 0.205 0.203 inch (5.21 - 5.16 mm)

1шт.

14

A179790

SPACER

thrust, 0.200 0.198 inch (5.08 - 5.03 mm)

1шт.

14

A179789

SPACER

thrust, 0.195 0.193 inch (4.95 - 4.90 mm)

1шт.

14

A179788

SPACER

thrust, 0.190 0.188 inch (4.83 - 4.78 mm)

1шт.

14

A179787

SPACER

thrust, 0.185 0.183 inch (4.70 - 4.65 mm)

1шт.

14

A179786

SPACER

thrust, 0.180 0.178 inch (4.57 - 4.52 mm)

1шт.

14

A179785

SPACER

thrust, 0.175 0.173 inch (4.45 - 4.39 mm)

1шт.

14

A179784

SPACER

thrust, 0.170 0.168 inch (4.32 - 4.27 mm)

1шт.

14

A179783

SPACER

thrust, 0.165 0.163 inch (4.19 - 4.14 mm)

1шт.

16

A179719

ROLLER BEARING,76.1mm OD x 17.46mm W

CUP bearing

1шт.

17

A153749

ROLLER BEARING,1.3125" ID x 0.875"

CONE bearing, rear, 1-5/16 inch ID (33 mm)

1шт.

19

A156260

NUT

adjusting, countershaft

1шт.
