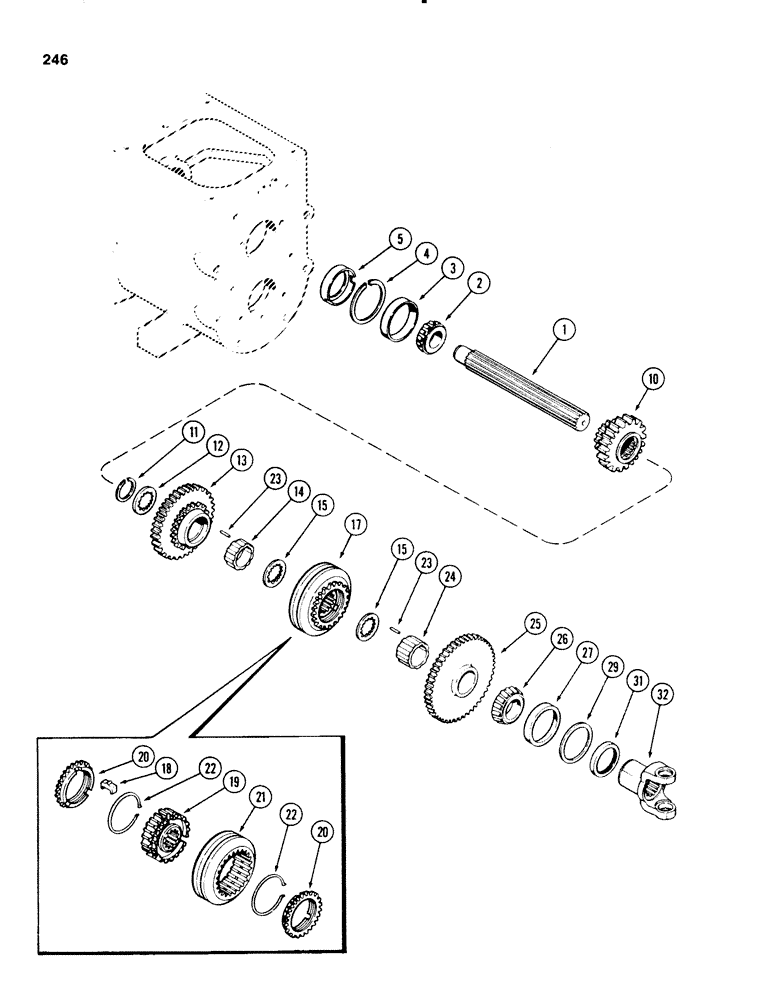

Запчасти Case 580E (246) - TRANSAXLE MAINSHAFT (06) - POWER TRAIN

1

A168330

SHAFT

MAINSHAFT transaxle

1шт.

2

T20939

ROLLER BEARING,1.25" ID x 0.771"

CONE bearing, rear, 1-1/4 inch ID (32 mm)

1шт.

3

A29977

BEARING CUP

CUP bearing, rear, 2-3/4 inch OD (70 mm)

1шт.

4

A29971

RING

snap, rear bearing retaining

1шт.

5

G10616

CUP

oiling, mainshaft, rear

1шт.

10

A168172

GEAR

sliding, first and second, 16 and 25 external and 24 internal teeth

1шт.

11

A26946

RING

snap, gear retaining

1шт.

12

A140239

COLLAR,24T

COLLAR thrust, third and fourth gears, 24 internal teeth

1шт.

13

A179853

PINION

GEAR sliding, third, 27 and 35 external teeth

1шт.

teeth have back taper.

1шт.

Ref #13 and #25 third and fourth gears Clutch

1шт.

14

A150317

BUSHING,39.69mm ID x 46.01mm OD x 22.63mm L

third gear

1шт.

15

A157470

WASHER,36.51mm ID x 52.32mm OD x 3.2mm Thk

thrust, third and fourth gears, 1/8 inch (3 mm) thick with 24

1шт.

internal teeth

2шт.

17

A182240

SYNCHRONIZER

ASSEMBLY, mainshaft, Includes: Ref. 18 - 22

1шт.

18

G46078

PLATE

SPRING synchronizer

3шт.

19

NSS

NOT SOLD SEPARAT

HUB synchronizer, Reference No. G46076

1шт.

20

A45568

SPECIAL RING

RING blocking

2шт.

21

NSS

NOT SOLD SEPARAT

COLLAR synchronizer, Reference No. A52383

1шт.

22

L33396

SPRING

lock ring, Replaces A40766

2шт.

23

A168375

NEEDLE ROLLER

PIN bushing

2шт.

24

A150318

BUSHING,39.69mm ID x 46.01mm OD x 32.11mm L

fourth gear

1шт.

25

A179854

PINION

GEAR sliding, fourth

1шт.

26

H753566

ROLLER BEARING

CONE bearing, front, 1-9/16 inch ID (40 mm)

1шт.

27

H753574

BEARING CUP

CUP bearing, front, 2-7/8 inch OD (73 mm)

1шт.

29

A51527

SHIM,.035" Thk

Front bearing (0.89 mm) .035" Thk

1шт.

29

G10341

SHIM,.005" Thk

Front bearing (0.13 mm) .005" Thk

1шт.

29

G10340

SHIM,.007" Thk

(0.18 mm), Front bearing .007" Thk

1шт.

31

A154253

OIL SEAL

oil, front, 2WD Only

1шт.

32

N6834

YOKE

power input

1шт.
