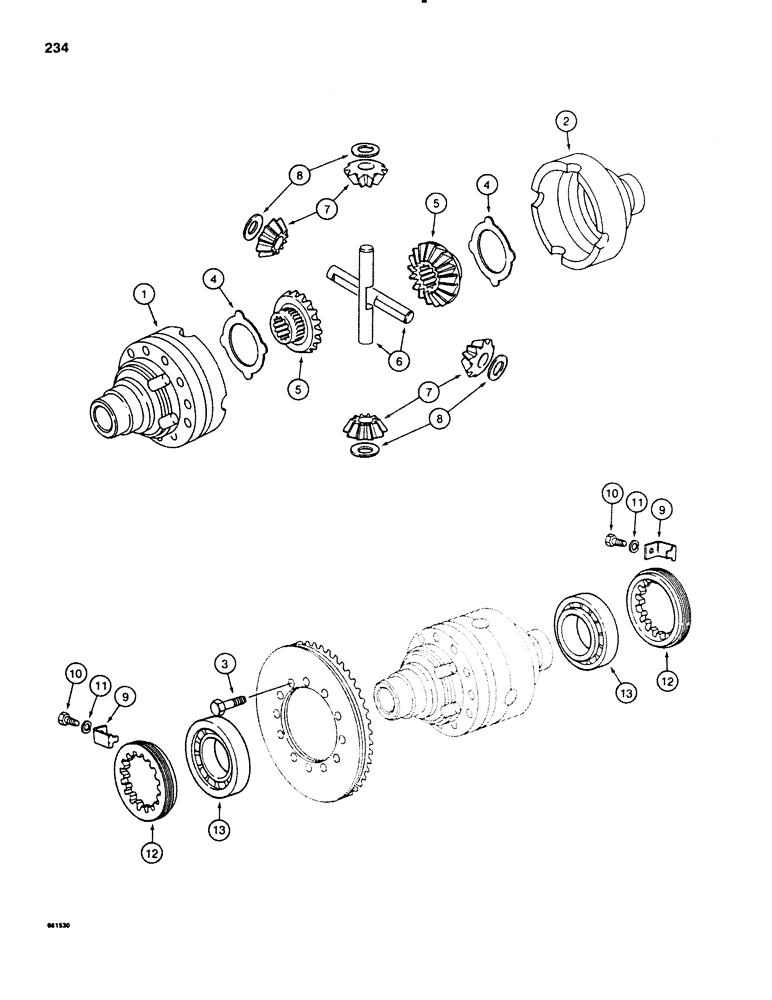

Запчасти Case 580E (234) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

N13508

DIFFERENTIAL

CASE ASSEMBLY, self locking differential, Includes: Ref 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CASE differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

CASE differential, plain half

1шт.

3

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9, plated

12шт.

4

N13618

WASHER

SEAL differential case

2шт.

5

N13617

GEAR

side, differential

2шт.

6

N13507

PIN

SHAFT pinion gear

2шт.

7

K395076

GEAR

pinion, differential

4шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

4шт.

9

K261869

LOCK

BRACKET lock

2шт.

10

K261871

SCREW

BOLT hex head, special, 6 mm - 1 x 12 mm

2шт.

11

K261870

WASHER

lock, special, 6 mm

2шт.

12

K261868

RING

lock, threaded

2шт.

13

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.
