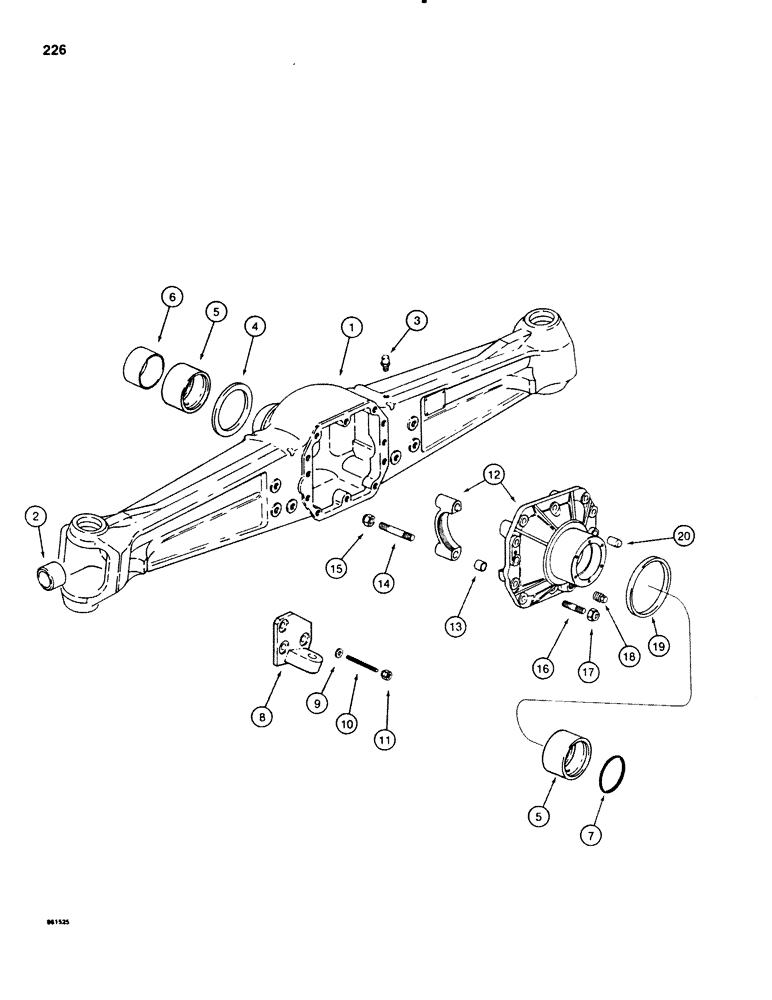

Запчасти Case 580E (226) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

D127440

AXLE

ASSEMBLY, Carraro 710 front drive, Carraro No. 118562, Includes: Ref. 1 - 20

1шт.

D127440 axle assembly includes parts on Figures 226 236. For axle mounting, See Figure 210.

1шт.

1

N13610

HOUSING

front axle

1шт.

2

K395019

BUSHING

housing

2шт.

3

K965231

BREATHER

axle housing

1шт.

4

K395022

WASHER

SPACER front pivot

1шт.

5

K965265

BUSHING

COLLAR front pivot

2шт.

6

K965266

BUSHING

SLEEVE front pivot

1шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

O RING housing, fits in outer groove of K965265 front pivot collar, Ref. 5

1шт.

8

N13611

BRACKET

SUPPORT steering cylinder, left hand

1шт.

8

N13612

BRACKET

SUPPORT steering cylinder, right hand

1шт.

9

K395052

WASHER

lock, special, 14 mm

6шт.

10

N13503

STUD

bracket

6шт.

11

K965250

NUT

hex, self locking, special, 14 mm - 1.5

6шт.

K395118

DIFFERENTIAL

CARRIER ASSEMBLY, differential, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

CARRIER differential

1шт.

13

K965259

RING

BUSHING centering, carrier

4шт.

14

K261836

STUD

carrier

4шт.

15

K965250

NUT

hex, self locking, special, 14 mm - 1.5

4шт.

16

K261839

STUD

, Serial Range: carrier-housing

10шт.

17

905834R1

THIN NUT,M12 x 1.25, Thin

Hex, self locking, special M12 x 1.25, Thin

10шт.

18

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

19

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

rear pivot

1шт.

20

K965252

PIN

dowel, Serial Range: housing-carrier

2шт.

M20704

ADHESIVE

SEALANT, 3 oz (89 ml) of sealant in a tube, differential, Serial Range: carrier-axle

1шт.

housing, not shown

1шт.
