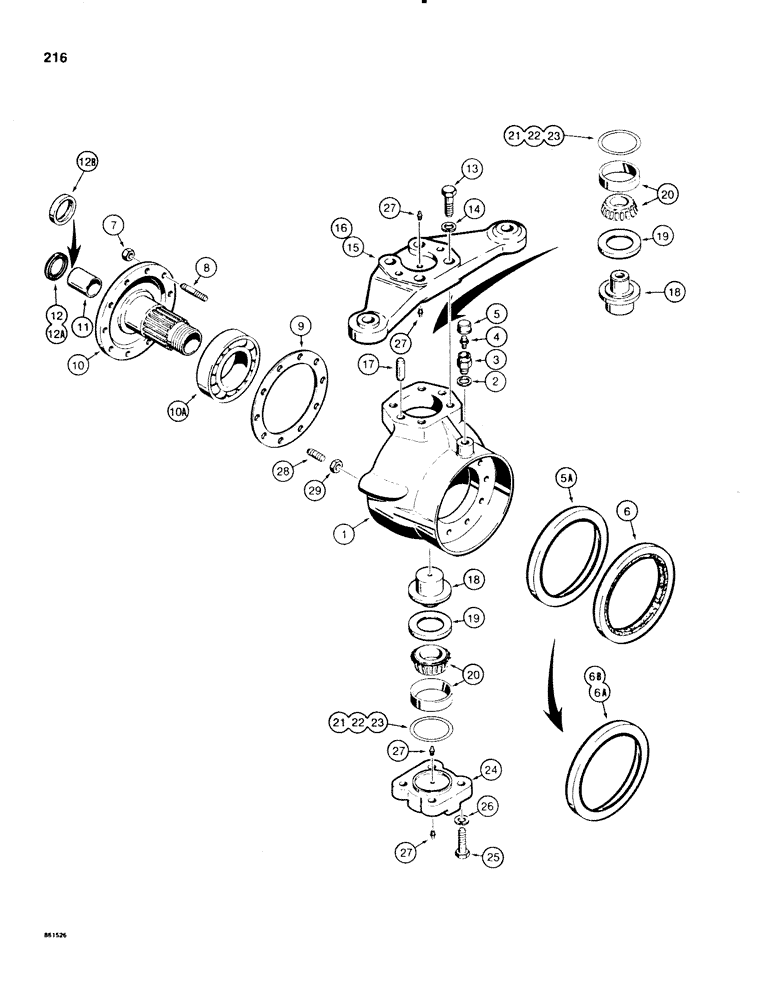

Запчасти Case 580E (216) - FRONT DRIVE AXLE, SWIVEL HOUSINGS (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY, front drive, includes Figures 214 - 222, Includes: Ref. 1 - 27

1шт.

1

N7523

STEERING KNUCKLE

HOUSING swivel, axle ends

2шт.

2

K957001

SEAL

breather protector

2шт.

3

K957000

GUARD

PROTECTOR breather

2шт.

4

K965231

BREATHER

swivel housing

2шт.

5

K260136

COVER

CAP breather cover

2шт.

5a

NSS

NOT SOLD SEPARAT

SEAL oil, inner, 170 mm OD x 140 mm ID x 15 mm wide, used with item

1шт.

When replacing Ref. 5A lip seal, must also replace Ref. 6 felt seal with Ref. 6A oil seal above and Ref. 10 wear ring on Figure 220. Ref. 5A and 6 seals are installed one behind the other. Ref. 6A and 10 on Figure 220 are installed one inside the other.

1шт.

6 felt seal on D120346 axle, no longer available, see service note below

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL felt, outer, 170 mm OD x 149 mm ID x 10 mm wide, used with item 5A on D120346 axle, no longer available, see service note below

2шт.

When replacing Ref. 5A lip seal, must also replace Ref. 6 felt seal with Ref. 6A oil seal above and Ref. 10 wear ring on Figure 220. Ref. 5A and 6 seals are installed one behind the other. Ref. 6A and 10 on Figure 220 are installed one inside the other.

1шт.

If looking for a seal with an all felt interior, use P/N K965323. Carraro P/N is 102148. Measures 6.7" OD and 5.75" ID.

1шт.

6a

N8898

OIL SEAL

oil, housing, 170 mm OD x 145 mm ID x 16 mm wide, D127422 axle, fits outside of item 10 wear ring on Figure 220, used on 140 mm, OD hub, item 11 on Figure 220

2шт.

If looking for a seal with an all felt interior, use P/N K965323. Carraro P/N is 102148. Measures 6.7" OD and 5.75" ID.

1шт.

6b

N9859

SEAL

oil, housing, 170 mm OD x 150 mm ID, fits outside of item 10A wear ring on Figure 220, used on 145 mm OD hub, item 11A on Figure 220

2шт.

If looking for a seal with an all felt interior, use P/N K965323. Carraro P/N is 102148. Measures 6.7" OD and 5.75" ID.

1шт.

7

K965250

NUT

hub stud

20шт.

8

K965249

STUD

hub to swivel housing

20шт.

9

K965237

GASKET

hub to swivel housing

2шт.

10

K965236

SHAFT

SPINDLE planetary

2шт.

10a

K965321

BALL BEARING

BEARING ball, small

2шт.

11

K965322

BUSHING

spindle

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL spindle, 62 mm OD x 40 mm ID x 10 mm wide, without sleeve, D120346 axle, no longer available, see service note below

2шт.

When replacing Ref.12 seal, must order both Ref. 12A seal and 12B sleeve.

1шт.

12a

N8897

OIL SEAL

SEAL spindle, 55 mm OD x 40 mm ID x 10 mm wide, used with item 12B

2шт.

12b

N8892

SLEEVE

seal, 62 mm OD x 55 mm ID x 11 mm wide, used with item 12A

2шт.

13

N7552

BOLT,M14 x 50mm

BOLT steering lever

8шт.

14

K965248

WASHER

lock, 14 mm

8шт.

15

N7550

ARM

LEVER steering, right hand

1шт.

16

N7551

ARM

LEVER steering, left hand

1шт.

17

K965275

PIN

dowel, steering lever

4шт.

18

N7532

PIN,60mm OD x 57mm L

swivel

4шт.

19

N7533

SEALING RING

pin

4шт.

20

N7534

ROLLER BEARING,30mm ID x 62mm OD x 17.25mm W

BEARING tapered, roller, swivel pin

4шт.

21

K965243

SHIM,0.1mm Thk

1шт.

22

K965244

SHIM,0.3mm Thk

1шт.

23

K965245

SHIM,0.5mm Thk

1шт.

24

K965242

COVER

CAP lower swivel pin

2шт.

25

K965247

BOLT,M14 x 35mm

BOLT hex head, 14 mm, cover

8шт.

26

K965248

WASHER

lock, 14 mm

8шт.

27

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING grease, steering levers and covers

8шт.

28

N7527

ADJUSTMENT SCREW

STUD steering stop

2шт.

29

K965369

JAM NUT

hex, 12 mm

2шт.
