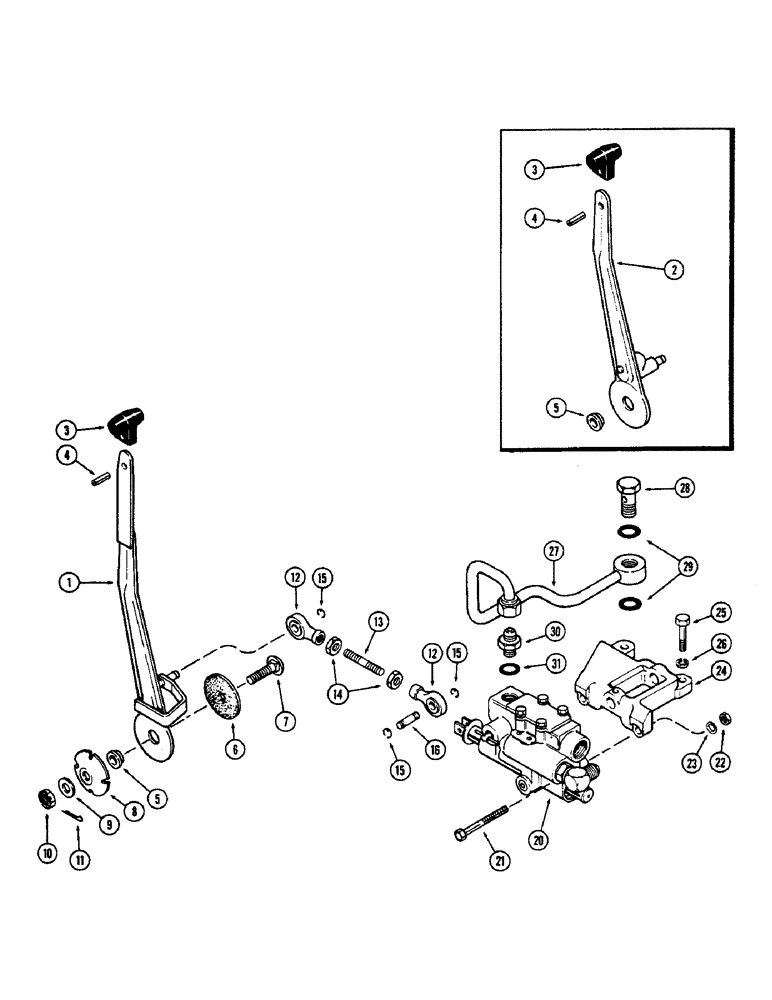

Запчасти Case 580 (138) - VALVE AND CONTROLS, DRAFT-O-MATIC (21) - TRANSMISSION

1

A38374

LEVER ASSY. - hand, draft control (Incl. items 3 thru 5) (1st used trac. ser. no. 8357671), Inlcudes: Ref. 3 - 5

1шт.

2

A35701

LEVER ASSY. - hand, draft control (Incl. items 3 thru 5) (Used prior to trac. ser. no. 8357671), Inlcudes: Ref. 3 - 5

1шт.

3

A36509

KNOB - hand lever

1шт.

4

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

5

G15947

BUSHING - pivot

1шт.

6

G10786

DISC

- friction

1шт.

7

G49100

BOLT - hand lever

1шт.

8

G49412

WASHER

- spring, lever bolt

1шт.

9

195-533

WASHER,1/2", SAE

- 1/2" flat

1шт.

10

425-128

SLOTTED NUT,1/2"-13, G5

NUT - slotted, 1/2" N.C. hex.

1шт.

11

132-27

COTTER PIN,3/32" x 7/8"

PIN, Split (Cotter), 3/32" x 7/8"

1шт.

A35133

LINK ASSY. - adjusting (Order components), Inlcudes: Ref. 12 - 14

1шт.

12

A35134

BEARING

EYE - adjusting link

2шт.

13

A35135

ROD

- adjusting link

1шт.

14

25-115

NUT,5/16"-24, G5

- lock, adj. link eye

2шт.

15

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING - Retaining, , adjusting eye pin #X31, .243" Dia, E-Type

3шт.

16

A35137

PIN

- eye to valve spool

1шт.

20

A35685

VALVE

ASSY. - control (Repairs Figure 140)

1шт.

21

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16" x 3-1/4" N.C. hex. hd.

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

23

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

24

A35478

BRACKET

- valve mounting

1шт.

25

113-236

X

BOLT - 3/8 x 2" N.C. hex. (Gr. 8)

2шт.

26

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

27

A35507

TUBE - valve to rockshaft housing

1шт.

28

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

29

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube to housing (11/16 x 7/8 x 3/32")

2шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - 1/2" tube x 3/4"-16, Inlcudes: Ref 31

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (21/32 x 13/16 x 3/32")

1шт.
