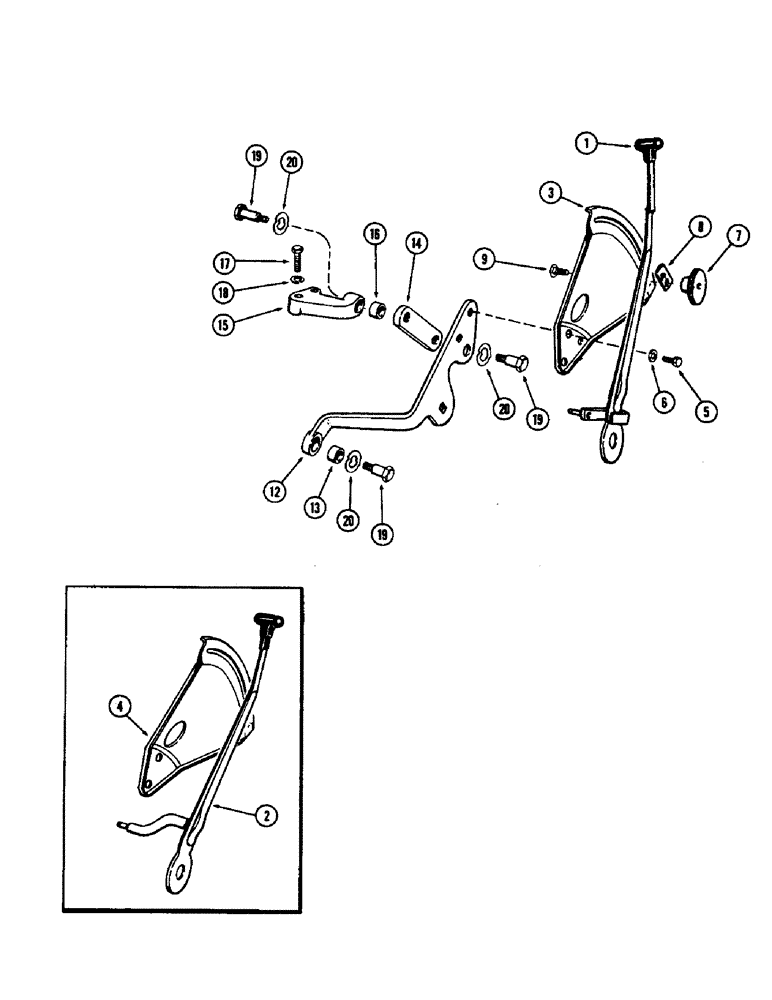

Запчасти Case 580 (137A) - SENSING LINKAGE CONTROLS (21) - TRANSMISSION

1

A38374

LEVER ASSY. - hand (See Figure 138) (1st used trac. ser. no. 8357671)

1шт.

2

A35701

LEVER ASSY. - hand (See Figure 138) (Used prior to trac. ser. no. 8357671)

1шт.

3

A38373

QUADRANT - (1st used trac. ser. no. 8357671)

1шт.

4

A35123

QUADRANT - (Used prior to trac. ser. no. 8357671)

1шт.

5

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

- lever to quadrant (3/8 x 2" N.C. hex.)

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

G15951

NUT

- quadrant stop adjustment

2шт.

8

G15950

STOP

- quadrant

1шт.

9

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Stop nut Short NK, 3/8"-16 x 1", G2

2шт.

12

A35499

ARM ASSY. - lower, quadrant, Inlcudes: Ref. 13

1шт.

13

A35112

BUSHING

- lower arm (3/4 x 1 x 3/4")

1шт.

14

A35502

LINK - lift, Serial Range: arm-quadrant

1шт.

15

A35491

BRACKET

ASSY. - lift arm, Inlcudes: Ref. 16

1шт.

16

A35112

BUSHING

- bracket (3/4 x 1 x 3/4")

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Bracket Hex, 3/8"-16 x 1 3/4", G5

2шт.

18

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

19

G49098

STEP BOLT

BOLT - pivot (5/8" N.C. shoulder)

3шт.

20

G49413

WASHER

- pivot bolt (Spring type)

3шт.
