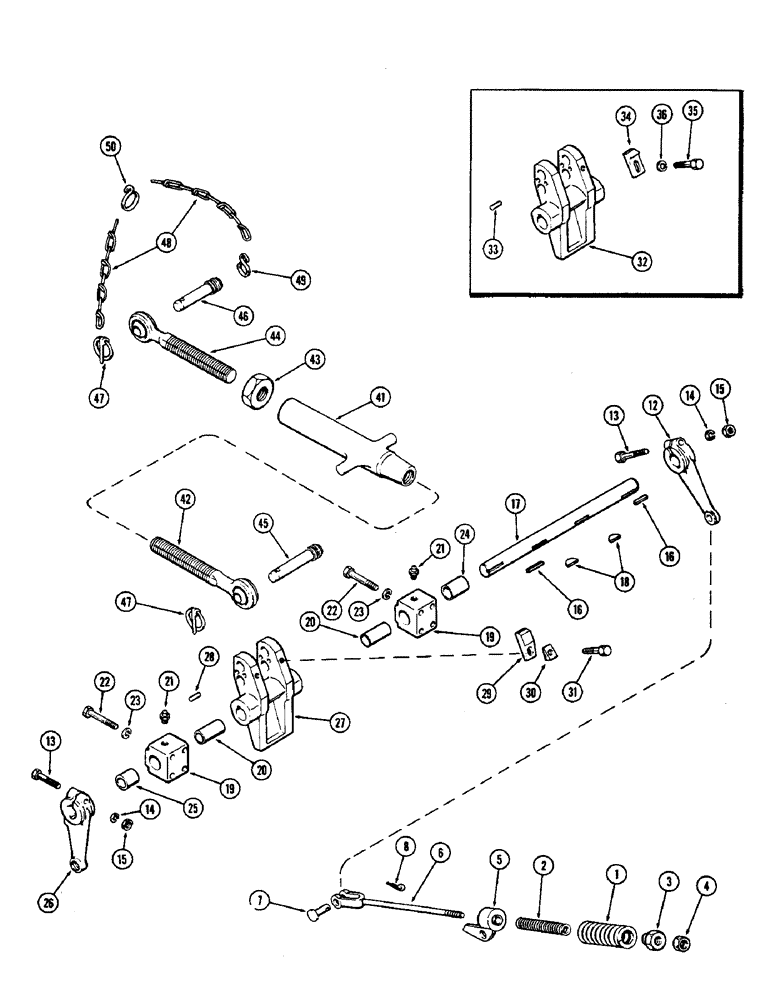

Запчасти Case 580 (136) - SENSING LINKAGE, DRAFT-O-MATIC (21) - TRANSMISSION

1

G48519

SPRING

- outer sensing (1" I.D., 6" free length)

1шт.

2

A35121

VALVE SPRING

SPRING - inner sensing (9/16" I.D., 5-1/16" free length)

1шт.

3

A30829

NUT

- spring adjusting

1шт.

4

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

1шт.

5

A38277

SUPPORT

EYE - centering, sensing spring (Replaces A35496)

1шт.

6

A35495

YOKE

ROD - adjusting spring

1шт.

7

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

12

A35795

ARM - sensing, left hand

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Arm Hex, 3/8"-16 x 2", G5

2шт.

14

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

16

A36432

KEY - sensing arm to shaft (1/4" sq. x 1-1/4")

2шт.

17

A35493

SHAFT

- pivot

1шт.

18

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Mast to shaft #15, 1/4" x 1", HT

2шт.

19

A36889

BRACKET ASSY. - pivot shaft, Inlcudes: Ref. 20

2шт.

20

A35117

BUSHING - shaft bracket (1 x 1-1/8 x 2")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

22

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- bracket, 3/8 x 2-3/4" N.C. hex.

8шт.

23

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

8шт.

24

A35494

SPACER - L.H., shaft (1-1/32 x 1-3/16 x 1-19/32")

1шт.

25

G49638

SPACER - R.H., shaft (1-1/32 x 1-3/16 x 1-3/16")

1шт.

26

A35794

ARM - sensing, right hand

1шт.

27

A38742

BRACKET

- mast link adjusting (1st used trans. ser. no. 2352052)

1шт.

28

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, , Bracket 1/4" x 1", Slotted

2шт.

29

A38743

STOP

- lockout (1st used trans. ser. no. 2352052)

1шт.

30

A38744

WEDGE

- lockout (1st used trans. ser. no. 2352052)

1шт.

31

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- lockout to brkt. (3/8 x 1" N.C. hex.)

1шт.

32

A36992

BRACKET

ASSY. - mast link adjusting (Used prior to trans. ser. no. 2352052), Inlcudes: Ref. 33

1шт.

33

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

34

A36766

STOP

- lockout (Used prior to trans. ser. no. 2352052)

1шт.

35

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- stop to brkt. (1/4 x 7/8" N.C. hex.)

1шт.

36

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

40

A36228

UPPER LINK

LINK ASSY. - adjusting, 3rd point, Inlcudes: Ref. 41 - 44

1шт.

41

A36223

TURNBUCKLE

1шт.

42

A36225

RING, SNAP

- adjusting, implement end

1шт.

43

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- jam, 1-1/8" N.F. hex.

1шт.

44

A36226

LINK

- adjusting, tractor end

1шт.

45

G16735

PIN

- adjusting link to mast (4-7/8" long)

1шт.

46

A29700

PIN

- adj. link to implement (4-3/16" long) (Order G16735)

1шт.

47

A30338

PIN

ASSY. - klick

2шт.

48

A30672

CHAIN - link pin

2шт.

49

A30706

"S" HOOK -, Serial Range: chain-pin

1шт.

50

A29730

HOOK

"S" HOOK -, Serial Range: chain-link

1шт.
