Запчасти Case 580 (134) - DRAFT ARMS AND LIFT LINKS, DRAFT-O-MATIC (21) - TRANSMISSION

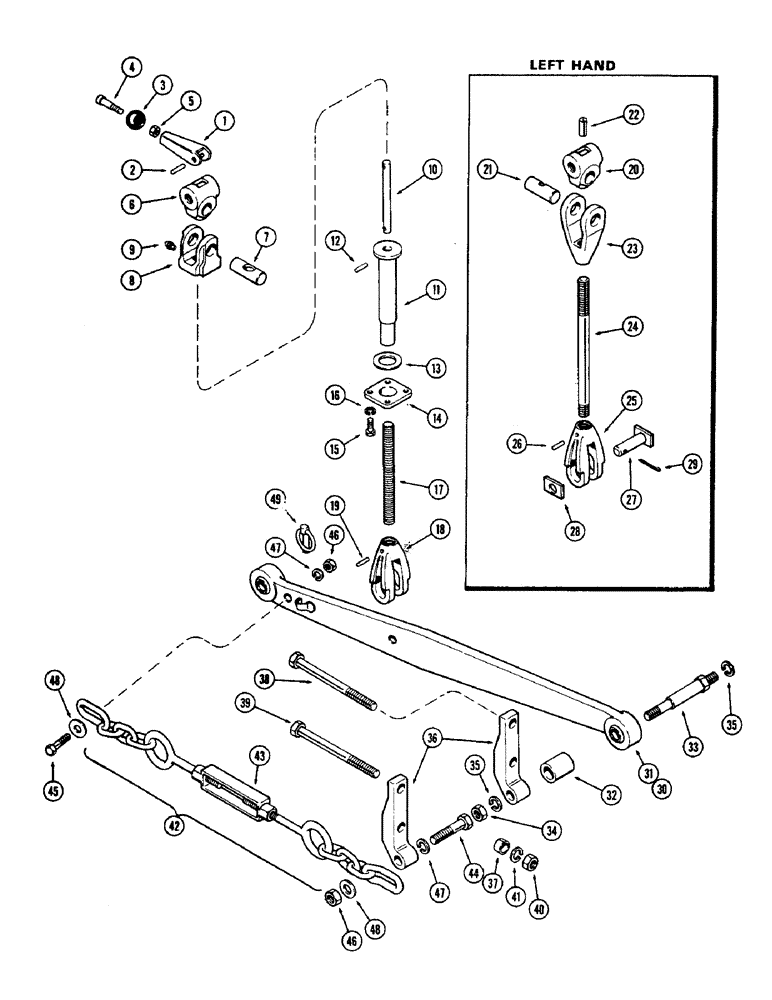

Схема запчастей Case 580 - (134) - DRAFT ARMS AND LIFT LINKS, DRAFT-O-MATIC (21) - TRANSMISSION
47
42
45
48
17
39
21
46
15
29
40
49
35
26
13
41
14
8
2
18
36
25
1
33
9
22
4
19
32
27
37
38
30
46
28
23
3
7
47
31
16
24
20
44
10
12
6
5
35
34
11
48
43

Артикул

Название

Примечание

Количество

1

A35464

HANDLE

- adjusting screw

1шт.

2

138-2008

PIN,1/4" x 1 1/8", Coiled

- 1/4" x 1 1/8", Coiled

1шт.

3

A35465

KNOB

- adjusting handle

1шт.

4

64-632

SCREW

BOLT - 3/8 x 2" N.C. fill. hd.

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - 3/8" N.C. fill. hd.

1шт.

6

A37092

BLOCK

- swivel, lift link

1шт.

7

A35459

PIN

- pivot, R.H. lift link

1шт.

8

A35458

HOUSING - pivot, R.H. lift link

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

10

A35463

SHAFT

- adjusting handle

1шт.

11

A35460

TUBE

- R.H. lift link

1шт.

12

138-2008

PIN,1/4" x 1 1/8", Coiled

- 1/4" x 1 1/8", Coiled

1шт.

13

NLS

NO LONGER SERVICED

- thrust, adjusting screw

1шт.

14

A35467

PLATE

- thrust, adjusting screw

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

4шт.

17

A35469

SCREW,3/4" - 10 x 8 13/16"

- adjusting, R.H. link

1шт.

18

A35470

YOKE

- lower, lift link

1шт.

19

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

20

A37092

BLOCK

- swivel, lift link

1шт.

21

A35475

PIN - pivot, L.H. lift link

1шт.

22

138-201

LOCK PIN,1/2" x 1 1/4", Slotted

PIN - 1/2" x 1 1/4", Slotted

1шт.

23

A35474

YOKE - upper, L.H. lift link

1шт.

24

A35477

ROD - L.H. lift link

1шт.

25

A35470

YOKE

- lower, lift link

1шт.

26

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

27

A36883

PIN

- pivot, link to draft arm

2шт.

28

A35472

PLATE

LOCK - pivot

2шт.

29

132-148

COTTER PIN,1/4" x 1 1/4"

PIN - Split (Cotter), 1/4" x 1 1/4"

2шт.

30

A36769

DRAFT ARM - L.H.

1шт.

31

A36768

DRAFT ARM - R.H.

1шт.

32

A38214

SPACER

- inner (Replaces A37386)

2шт.

33

A38215

STUD

- pivot, draft arm (Replaces A36388)

2шт.

34

25-1010

NUT,5/8"-11, G5

2шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

36

G16911

BRACKET

- support, draft arm

4шт.

37

A35790

SPACER - bracket to axle housing

8шт.

38

14-10136

BOLT,Hex, 5/8" - 18 x 8-1/2", Gr 5

- 5/8 x 8-1/2" N.F. hex. hd.

4шт.

39

14-10128

BOLT,Hex, 5/8" - 18 x 8", Gr 5

- 5/8 x 8" N.F. hex. hd.

4шт.

40

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

8шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

42

A36767

CHAIN (AG)

CHAIN ASSY. - sway, Inlcudes: Ref. 43

2шт.

43

A38201

TURNBUCKLE

- chain

1шт.

44

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

45

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

46

25-1010

NUT,5/8"-11, G5

4шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

48

195-2071

WASHER

- (21/32 x 2 x 1/4")

4шт.

49

A33509

PIN,11.18mm OD

KLIK PIN

2шт.

Выбрано товаров: 49
