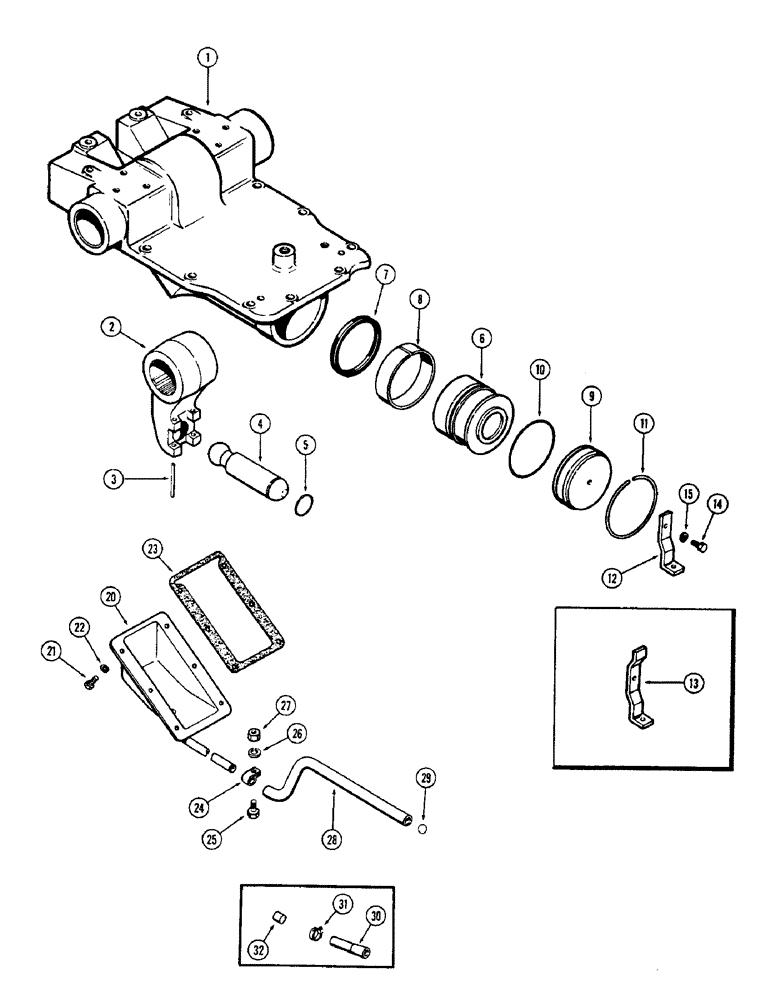

Запчасти Case 580 (133A) - ROCKSHAFT PISTON & PAN (21) - TRANSMISSION

1

A38460

HOUSING ASSY. - rockshaft (See Figure 132) (Replaces A37475)

1шт.

2

A37325

ARM - rocker, piston

1шт.

A37325 rocker arm - This part is similar to G10940 arm.

1шт.

3

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

4

G30527

ROD

ASSY. - rocker arm to piston, Inlcudes: Ref. 5

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - 1-1/4 x 1-1/2 x 1/8"

1шт.

6

A40799

PISTON

PISTON ASSY. - hydraulic, Inlcudes: Ref. 7 and 8

1шт.

7

A36442

SEAL

RING - seal, "U" cup (3-1/4 x 3-3/4 x 3/8")

1шт.

8

A36441

SEAL ASSY.

RING - wear, piston

1шт.

9

A37326

CAP

- hydraulic cylinder

1шт.

10

A36405

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

"O" RING - 3-1/2 x 3-3/4 x 1/8"

1шт.

11

A37327

RING, SNAP

RING - snap, cylinder cap

1шт.

12

A37808

BRACKET

- cyl. cap (1st used trac. ser. no. 8359243)

1шт.

13

A37328

X

BRACKET - cyl. cap (Used prior to trac. ser. no. 8359243)

1шт.

14

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

15

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

20

A38394

PAN - oil return (Tube approx. 13-1/8" long) (1st used trac. ser. no. 8349880)

1шт.

20

A37329

FITTING

PAN - oil return (Tube approx. 11-1/2" long) (Used prior to trac. ser. no. 8349880) (Order A38394)

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

23

A38652

OIL PAN GASKET SET

- oil return pan (Replaces A37332)

1шт.

24

A37334

CLIP - hose to pan tube

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

25-104

NUT,1/4"-20, G5

1шт.

28

A37333

HOSE

ASSY. - oil pan, w/o internal spring (1st used trac. ser. no. 8349880)

1шт.

28

A37346

HOSE

- oil pan, w/internal spring (Used prior to trac. ser. no. 8349880)

1шт.

29

A39321

PLUG,Cup, 7/16"

- tube, 7/16" cup type (1st used trans. ser. no. 2368520)

1шт.

30

A37335

TUBE - (Used prior to trans. ser. no. 2368520)

1шт.

31

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - tube to hose

1шт.

32

A38284

PLUG

- oil tube (w/o hitch) (Replaces A37403) (Use 135-274 groove pin for repairs)

1шт.
