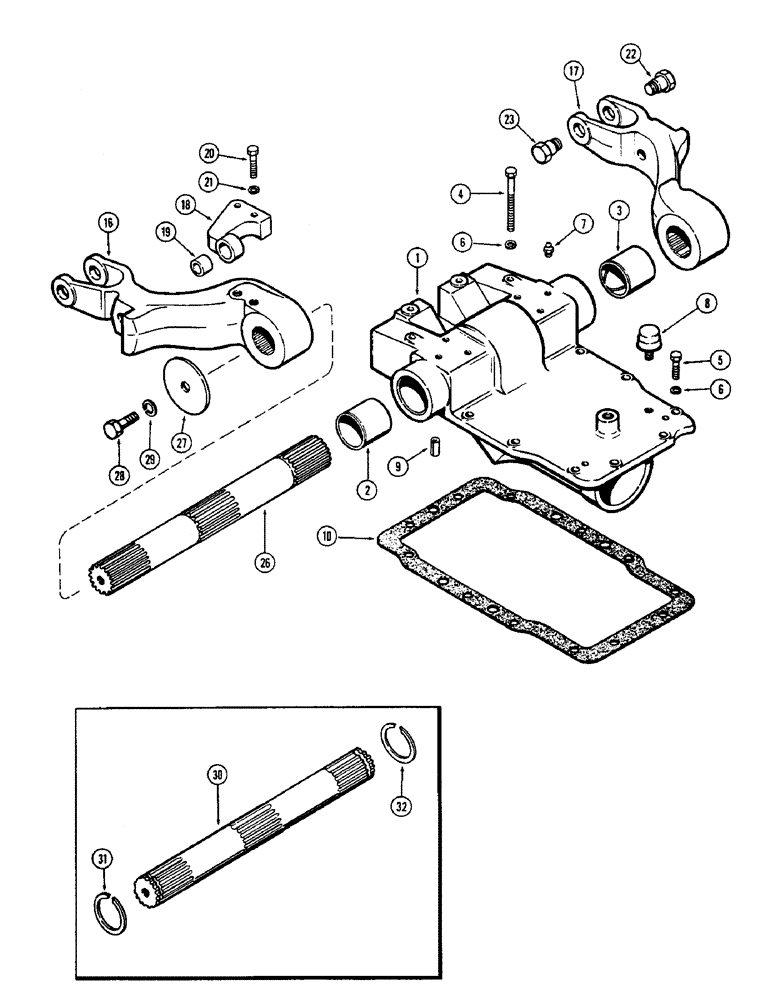

Запчасти Case 580 (132) - ROCKSHAFT HOUSING, ROCKSHAFT AND ARMS, DRAFT-O-MATIC (21) - TRANSMISSION

1

A38460

HOUSING ASSY. - rockshaft (Replaces A37475), Inlcudes: Ref. 2 and 3

1шт.

2

A49662

PLATE

BUSHING - R.H., rockshaft (2-5/16 x 2-7/16 x 2-1/4")

2шт.

3

G49663

BUSHING

- L.H., rockshaft (2-1/16 x 2-3/16 x 2-1/4")

2шт.

4

113-237

X

BOLT - 3/8 x 4" N.C. hex.

4шт.

5

113-228

X

BOLT - 3/8 x 1-1/4" N.C. hex.

6шт.

6

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

10шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

8

A27173

BREATHER

- oil

1шт.

9

138-200

LOCK PIN,1/2" x 1", Slotted

PIN - 1/2" x 1", Slotted

1шт.

10

G10941

GASKET

- housing to trans. case

1шт.

16

A35454

ARM - lift, right hand draft arm

1шт.

17

A35455

ARM - lift, left hand draft arm

1шт.

18

A35491

BRACKET

ASSY. - quadrant link, Inlcudes: Ref. 19

1шт.

19

A35112

BUSHING

- pivot

1шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

22

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

SCREW - lift link (Left hand thread)

2шт.

23

A35457

SCREW

- lift link (Right hand thread)

2шт.

26

G10460

ROCKSHAFT

- w/out snap ring grooves (Order 1-A38953 shaft, 1-A32300 & 1-A33575 snap rings)

1шт.

27

A29186

WASHER

- retaining, lift arms (Used w/G10460 rockshaft)

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Washer Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

30

A38953

ROCKSHAFT

- w/snap ring grooves

1шт.

31

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, right hand (2-5/32" I.D.)

1шт.

32

A33575

SNAP RING,#206, 1.936", Ext

RING - snap, left hand (1-15/16" I.D.)

1шт.
