Запчасти Case 580 (110) - TRANSMISSION MAINSHAFT (21) - TRANSMISSION

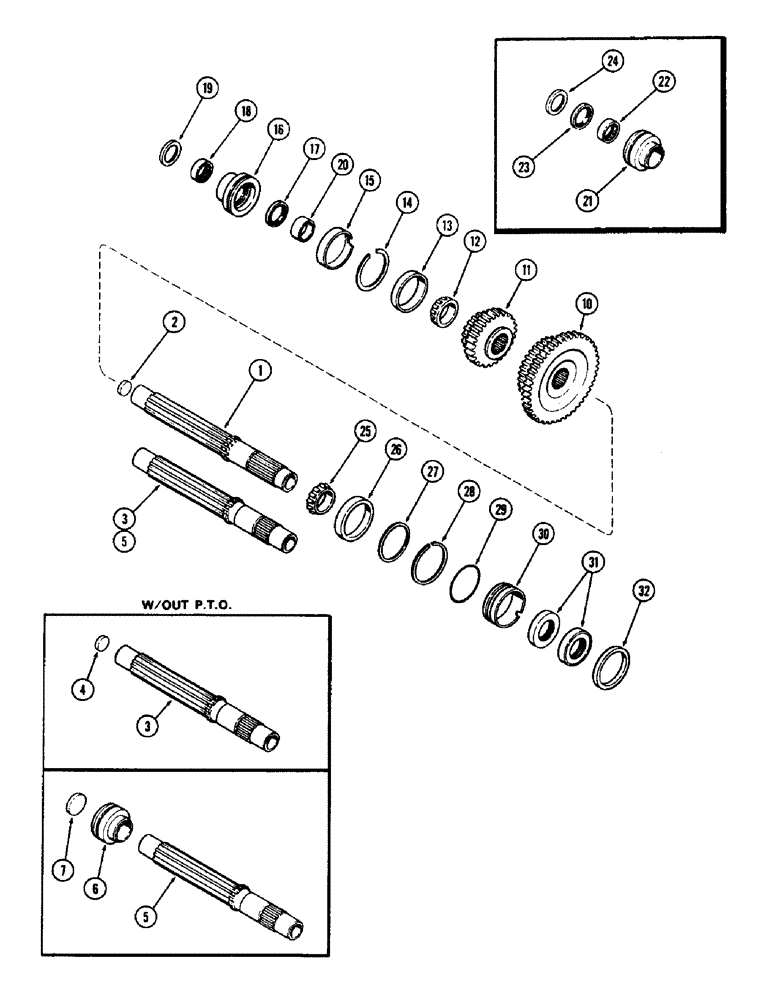

Схема запчастей Case 580 - (110) - TRANSMISSION MAINSHAFT (21) - TRANSMISSION
25
13
3
24
21
4
23
10
19
17
3
28
31
1
15
20
5
11
27
22
16
12
14
5
2
29
18
6
32
7
26
30

Артикул

Название

Примечание

Количество

1

G13462

SHAFT

- main drive w/bushing (w/std. clutch)

1шт.

2

41-1016

PLUG,Cup, 1"

- (Used w/G13462 mainshaft) (Used w/out P.T.O.) (1" cup type)

1шт.

3

A38849

SHAFT

- main drive (w/power shuttle) (1st used trac. ser. no. 8655018) (w/counterbore for cup plug)

1шт.

4

A38534

PLUG

- (Used w/A38849 mainshaft) (w/out P.T.O.) (1-1/16" cup type) (1st used trac. ser. no. 8655018)

1шт.

5

A38459

SHAFT

- main drive (w/power shuttle) (Replaces A37594) (Used prior to trac. ser. no. 8655018) (Order A38849) (w/out counterbore; for A37602 housing)

1шт.

6

A37602

HOUSING

ASSY. - (Used w/A38459 mainshaft) (w/out P.T.O.) (Used prior to trac. ser. no. 8655018), Includes: Ref. 7

1шт.

7

41-1024

PLUG,Cup, 1 1/2"

- housing (1-1/2" cup type)

1шт.

10

A38917

GEAR

- 3rd gear (28T) and 4th gear (44T) (Replaces A37728)

1шт.

11

A38630

GEAR

- 1st gear (16T) and 2nd gear (25T) (Replaces A37729 & A38156)

1шт.

12

A29976

ROLLER BEARING

CONE - rear bearing, mainshaft

1шт.

13

A29977

BEARING CUP

CUP - rear bearing, mainshaft

1шт.

14

A29971

RING

- snap, rear bearing

1шт.

15

G10616

CUP

- oil slinger

1шт.

16

A39275

BEARING ASSY

HOUSING ASSY. - rear oil seal (w/P.T.O.) (See note) (Replaced A37604), Includes: Ref. 17 - 19

1шт.

17

A37605

OIL SEAL

- oil

1шт.

18

A37606

NEEDLE BEARING,1.25" ID x 1.5005" OD x 0.5"

BEARING - needle

1шт.

19

A57479

OIL SEAL

- oil

1шт.

20

A39240

SLEEVE

- wear (Used w/A39275 housing)

1шт.

21

A37604

HOUSING

ASSY. - rear oil seal (w/P.T.O.) (Order 1-A39275 housing & 1-A39240 sleeve), Includes: Ref. 22 - 24

1шт.

22

A37606

NEEDLE BEARING,1.25" ID x 1.5005" OD x 0.5"

BEARING - needle

1шт.

23

A37605

OIL SEAL

- oil (1-1/4 x 1-5/8 x 3/16")

1шт.

24

A37607

COLLAR CLAMP

COLLAR - oil seal

1шт.

25

G10424

CONE

- front bearing, mainshaft

1шт.

26

G10425

CUP

- front bearing, mainshaft

1шт.

27

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

27

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

28

A30092

RING

- snap, oil seal housing (w/mech. shuttle)

1шт.

29

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING - oil seal housing (w/mech. shuttle) (2-5/8 x 2-7/8 x 1/8")

1шт.

30

A39185

CARRIER

HOUSING - front oil seal (w/mech. shuttle) (Replaced G16605)

1шт.

31

G10422

OIL SEAL

- oil, front, mainshaft (1-9/16 x 2-7/16 x 15/32")

2шт.

32

A39184

COLLAR

- pilot (w/power shuttle) (Replaces G10311)

1шт.

Выбрано товаров: 31
