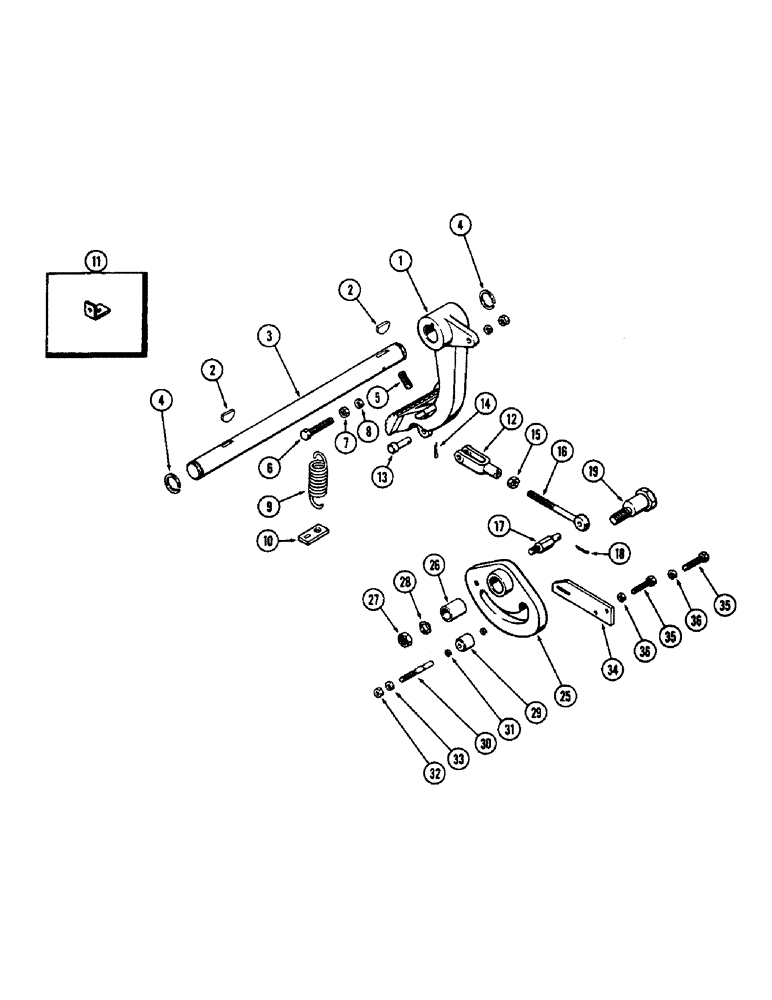

Запчасти Case 580 (103A) - TORQUE CONVERTER LINKAGE, POWER SHUTTLE (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
A37884
PEDAL
- clutch brake
1шт.
2
126-21
WOODRUFF KEY,#A, 1/4" x 7/8"
Pedal to shaft #A, 1/4" x 7/8"
1шт.
3
A37701
SHAFT
- cross, brake and clutch
1шт.
4
A37235
SNAP RING,#100, .941", Ext
RING - snap, cross shaft
2шт.
5
176-394
SCREW,Sl Hdls, 1/4" - 20 x 3/4", Oval Pt
- set, 1/4 x 7/8" slot hd. (Nylock)
1шт.
6
13-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
Spring Hex, 5/16"-18 x 2 1/2", G5
1шт.
7
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex.
1шт.
8
92-5
LOCK WASHER,5/16"
WASHER - , lock 5/16"
1шт.
9
A37724
SPRING
- pedal return
1шт.
10
A38142
BRACKET
- spring anchor (1st used trac. ser. no. 8302214)
1шт.
11
A37723
BRACKET - spring anchor (Order A38142) (Used prior to trac. ser. no. 8302214)
1шт.
12
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - pedal to link
1шт.
13
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke to pedal 5/16" x .940"
1шт.
14
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
15
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
1шт.
16
A37717
DRAG LINK
LINK - pedal to cam stud
1шт.
17
A37716
STUD
- cam operating
1шт.
18
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
19
A37718
STEP BOLT
SHAFT - pivot, clutch cam
1шт.
25
A38274
CAM
ASSY. - clutch operating (Replaces A37711)
1шт.
26
A37715
BUSHING
- pivot, cam
1шт.
27
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex.
1шт.
28
193-48
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER - Shakeproof, 1/2" ext.
1шт.
29
A37720
BEARING
- cam follower
1шт.
30
A37786
SHAFT
- cam follower
1шт.
31
A31196
CIRCLIP,#25, .207" Dia, E-Type
RING - Retaining, , bearing to shaft #25, .207" Dia, E-Type
2шт.
32
25-104
NUT,1/4"-20, G5
2шт.
33
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
34
A37722
BRACKET
SUPPORT - cam follower shaft
1шт.
35
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
2шт.
36
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
Выбрано товаров: 31
