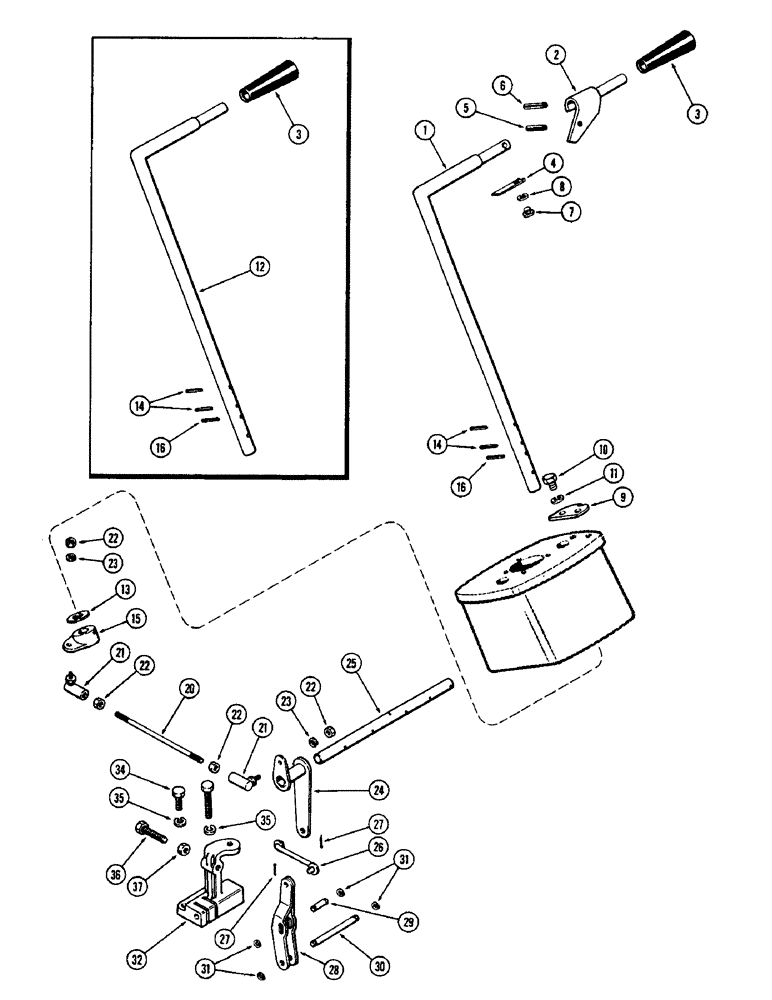

Запчасти Case 580 (102) - POWER SHUTTLE LINKAGE, POWER SHUTTLE (21) - TRANSMISSION

1

A38292

LEVER

- shuttle shift (w/shuttle lock)

1шт.

2

A38293

HANDLE

- shift lever (w/shuttle lock)

1шт.

3

A37247

KNOB

HANDLE - control lever (Use adhesive)

1шт.

4

A38296

SPRING

- leaf, shuttle lock

1шт.

5

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

6

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

7

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- #8 x 1/4" N.C. sltd. pan hd.

1шт.

8

195-8

WASHER

- 11/64 x 13/32 x 1/16"

1шт.

9

A38298

LARGE PLATE

PLATE - shuttle lock

1шт.

10

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Plate Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

A37245

LEVER

- hand, shuttle control (Used w/o shuttle lock)

1шт.

13

195-41

WASHER,5/8"

1шт.

14

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

15

A37630

LEVER

- handle, lower end

1шт.

16

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

20

A35642

ROD

- handle lever to cross shaft

1шт.

21

A10329

BALL JOINT,1/4" - 28 x 1"

- rod

2шт.

22

25-114

NUT,1/4"-28, G5

- 1/4" N.C. hex.

4шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

A37631

LEVER

- cross shaft

1шт.

25

A37264

SHAFT

- cross, throttle & shuttle linkage

1шт.

25

A185091

SHAFT

- cross, throttle & shuttle linkage

1шт.

26

G30260

LINK

- cross shaft to spool lever

1шт.

27

132-24

COTTER PIN,3/32" x 1/2"

PIN - cotter, 3/32 x 1"

2шт.

28

A37634

LEVER

- pivot, valve spool control

1шт.

29

A37637

PIN,9.53mm OD x 24.38mm L

- center pivot (1" long)

1шт.

30

G16825

PIN

- lower pivot (3-9/16" long)

1шт.

31

G46146

SNAP RING,#37, Ext

RING - Snap, , pivot pin #37, Ext

4шт.

32

A37638

SUPPORT

- steering column & control lever

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 2-1/8" N.C. hex.

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

36

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

Spool stop Hex, 5/16"-18 x 1 3/4", G5, Full Thd

1шт.

37

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex.

1шт.
