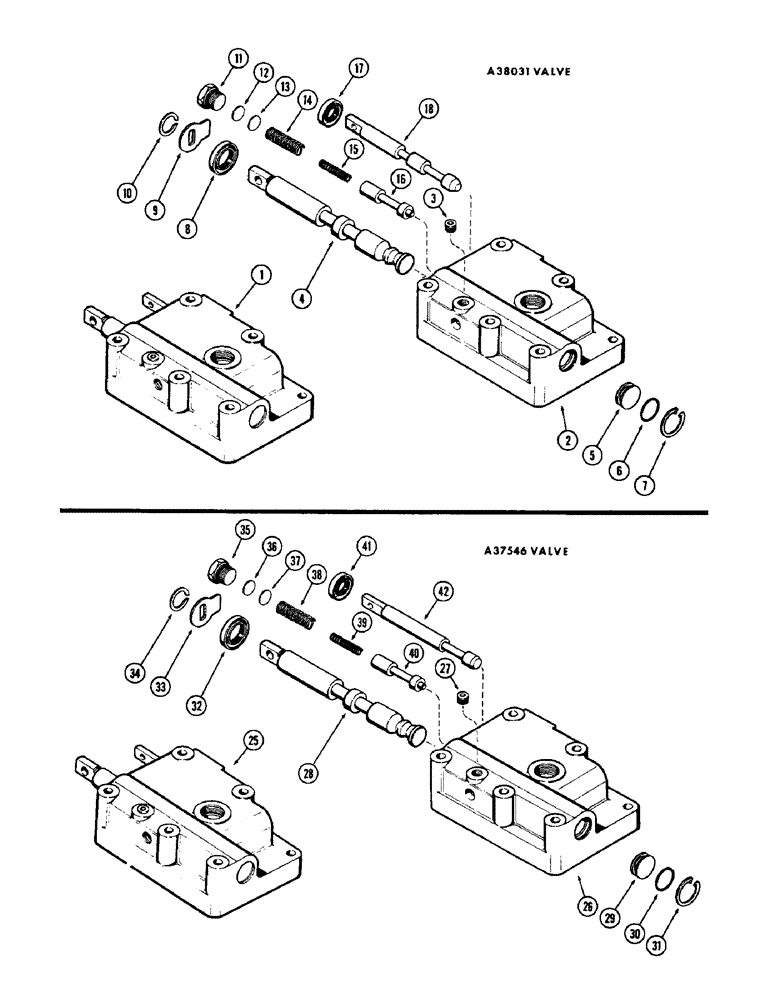

Запчасти Case 580 (101C) - A38031 CONTROL VALVE, PWR. SHUTTLE, USED TRAC. S/N. 8314666 TO 8340560, A37546 CONTROL VLAVE USED (21) - TRANSMISSION

1

A38031

VALVE

ASSY. - complete, Inlcudes: Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

221-1849

PLUG

- 1/8" P.T. socket hd.

1шт.

4

A37548

SPOOL - power shuttle control

1шт.

5

A37549

PLUG

- spool opening

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - plug (3/4 x 1 x 1/8")

1шт.

7

A37550

SNAP RING,1.00", Int, #100

RING - Snap, , plug 1.00", Int, #100

1шт.

8

A11507

OIL SEAL

- oil shuttle spool (7/8 x 1-3/8 x 1/4")

1шт.

9

NLS

NO LONGER SERVICED

PLATE - interlock, spool

1шт.

10

A29329

RING, SNAP

RING - snap, interlock

1шт.

11

A37556

PLUG

- pressure regulator

1шт.

12

A37555

SHIM,.0120" Thk

Regulator (5 PSI) .0120" Thk

1шт.

13

A37554

SHIM,.0269" Thk

Regulator (10 PSI) .0269" Thk

1шт.

14

A37552

VALVE SPRING

SPRING - outer, reg. spool (1-7/16" free length, 9 coils)

1шт.

15

A37553

SPRING

- inner, reg. spool (1-1/2" free length, 15 coils)

1шт.

16

A37551

PLUNGER

SPOOL - pressure regulator

1шт.

17

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil flow control spool (9/16 x 1-1/8 x 1/4")

1шт.

18

A38033

SPOOL

- flow control

1шт.

25

A37546

X

VALVE ASSY. - (Order A38031, 1-A38030, 1-A38028 & 1-A38029), A37546 control valve used prior t otrac. ser. no. 8314666, Includes: Ref. 26 - 42

1шт.

26

A37547

BODY

- valve (Order 1-A38031, 1-A38030, 1-A38028 & 1-A38029), A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

27

221-1849

PLUG

- 1/8" P.T. socket hd., A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

28

A37548

SPOOL - power shuttle control, A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

29

A37549

PLUG

- spool opening, A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

30

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - plug (3/4 x 1 x 1/8"), A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

31

A37550

SNAP RING,1.00", Int, #100

RING - Snap, , plug, A37546 control valve used prior t otrac. ser. no. 8314666 1.00", Int, #100

1шт.

32

A11507

OIL SEAL

- oil, shuttle spool (7/8 x 1-3/8 x 1/4"), A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

33

NLS

NO LONGER SERVICED

PLATE - interlock, spool, A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

34

A29329

RING, SNAP

RING - snap, interlock, A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

35

A37556

PLUG

- pressure regulator, A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

36

A37555

SHIM,.0120" Thk

Regulator (5 PSI), A37546 control valve used prior to tractor S/N 8314666 .0120" Thk

1шт.

37

A37554

SHIM,.0269" Thk

Regulator (10 PSI), A37546 control valve used prior to tractor S/N 8314666 .0269" Thk

1шт.

38

A37552

VALVE SPRING

SPRING - outer, reg. spool (1-7/16" free length, 9 coils), A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

39

A37553

SPRING

- inner, reg. spool (1-1/2" free length, 15 coils), A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

40

A37551

PLUNGER

SPOOL - pressure regulator, A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

41

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil, flow control spool (9/16 x 1-1/8 x 1/4"), A37546 control valve used prior t otrac. ser. no. 8314666

1шт.

42

A37557

X

SPOOL - flow control (Order A38033), A37546 control valve used prior t otrac. ser. no. 8314666

1шт.
