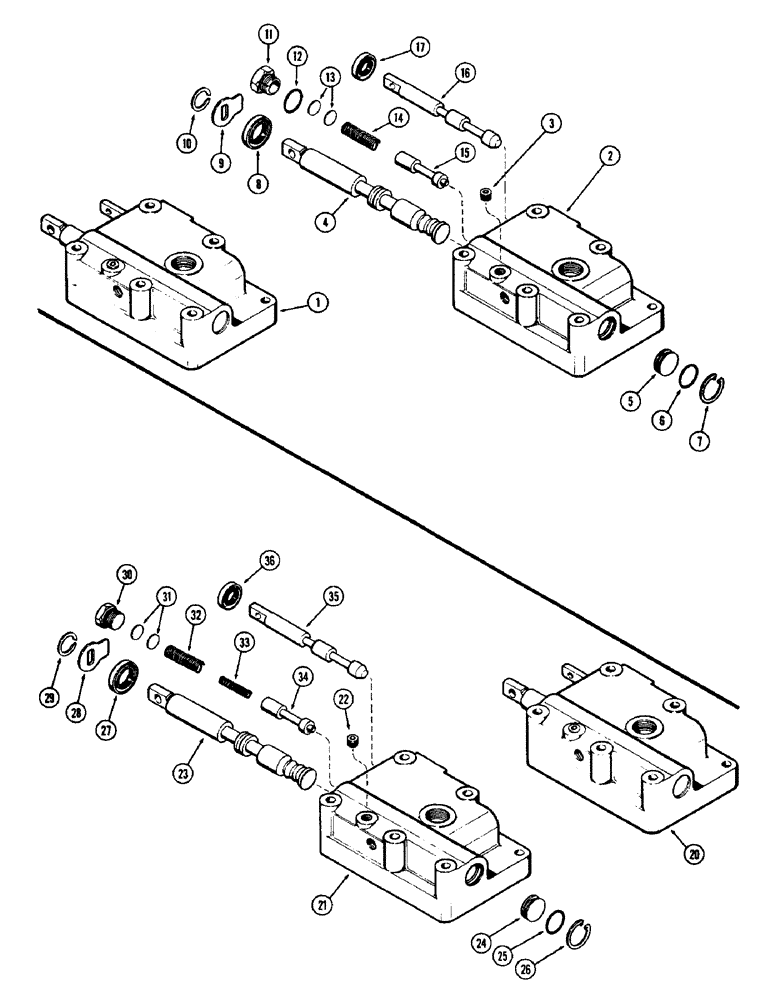

Запчасти Case 580 (101A) - A38434 VALVE, POWER SHUTTLE, 1ST USED TRAC. SER. NO. 8358736 (21) - TRANSMISSION

1

A38434

VALVE

ASSY. - shuttle control, Inlcudes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

221-1849

PLUG

- 1/8" P.T., sckt. hd.

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - power shuttle control (Order A38434)

1шт.

5

A37549

PLUG

- spool opening

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - plug (3/4 x 1 x 1/8")

1шт.

7

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, , plug 1.00", Int, #100

1шт.

8

A11507

OIL SEAL

- oil, shuttle spool (7/8 x 1-3/8 x 1/4")

1шт.

9

NLS

NO LONGER SERVICED

PLATE - interlock, spool

1шт.

10

A29329

RING, SNAP

RING - snap, interlock plate ret.

1шт.

11

A39131

PLUG

- pressure regulator

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug (41/64 x 13/16 x 5/64")

1шт.

13

A38441

SHIM,.0209" Thk

Pressure regulating .0209" Thk

1шт.

13

A38442

SHIM,.0418" Thk

Pressure regulating .0418" Thk

1шт.

14

A38440

SPRING

- regulator spool (2-3/64" free length, 15 coils)

1шт.

15

A37551

PLUNGER

SPOOL - pressure regulator

1шт.

16

A38033

SPOOL

- flow control

1шт.

17

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil, flow control spool (9/16 x 1-1/8 x 1/4")

1шт.

20

A38300

VALVE ASSY. - shuttle control, A38300 used trac. ser. no. 8340560 to 8358736, Inlcudes: Ref. 21 - 36

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve, valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

22

221-1849

PLUG

- 1/8" P.T. sckt. hd., valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - power shuttle control (Order A38434), valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

24

A37549

PLUG

- spool opening, valve, A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

25

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - plug (3/4 x 1 x 1/8"), valve, A38300 used trac. ser. no. 8340560 to 8358736

1шт.

26

A37550

SNAP RING,1.00", Int, #100

RING - Snap, , plug, valve A38300 used trac. ser. no. 8340560 to 8358736 1.00", Int, #100

1шт.

27

A11507

OIL SEAL

- oil, shuttle spool (7/8 x 1-3/8 x 1/4"), valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

28

NLS

NO LONGER SERVICED

PLATE - interlock, spool, valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

29

A29329

RING, SNAP

RING - snap, interlock plate ret., valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

30

A37556

PLUG

- pressure regulator, valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

31

A37555

SHIM,.0120" Thk

Pressure regulating, Valve A38300 used tractor S/N 8340560 to 8358736 .0120" Thk

1шт.

31

A37554

SHIM,.0269" Thk

Pressure regulating, valve A38300 used tractor S/N 8340560 to 8358736 .0269" Thk

1шт.

32

A37552

VALVE SPRING

SPRING - outer, reg. spool (1-7/16" free length, 9 coils), valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

33

A37553

SPRING

- inner, reg. spool (1-1/2" free length, 15 coils), valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

34

A37551

PLUNGER

SPOOL - pressure regulator, valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

35

A38033

SPOOL

- flow control, valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.

36

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil, flow control spool (9/16 x 1-1/8 x 1/4"), valve A38300 used trac. ser. no., Serial Range: 8340560-8358736

1шт.
