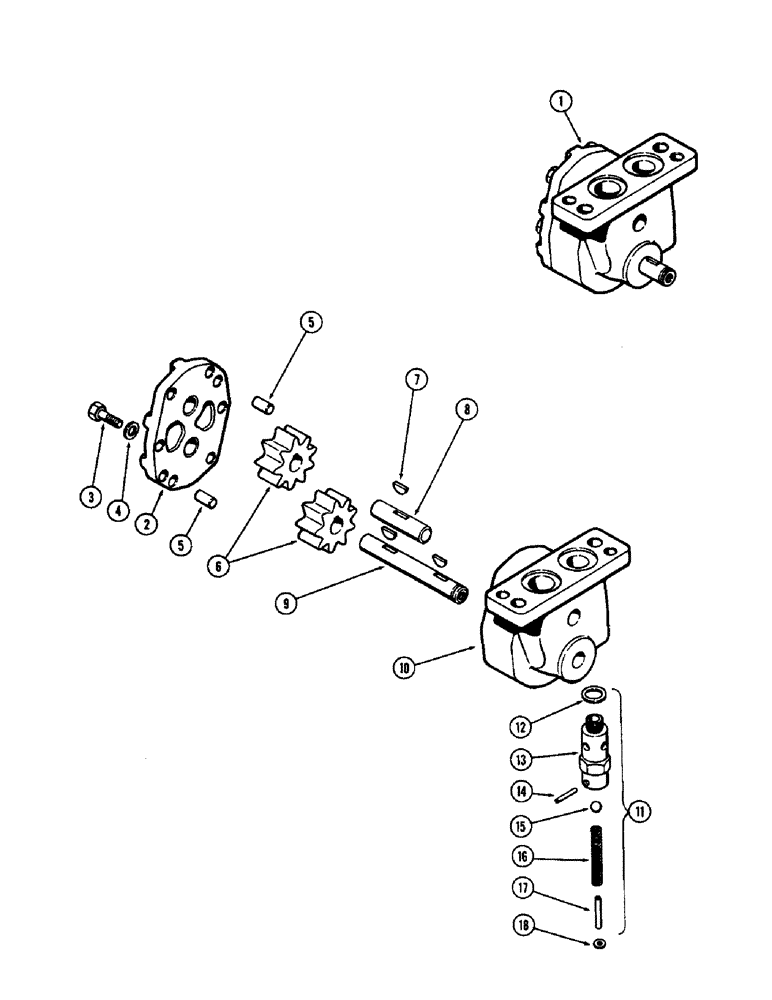

Запчасти Case 580 (100) - A37570 DRIVE PUMP, POWER SHUTTLE (21) - TRANSMISSION

1

A37570

PUMP

ASSY. - converter drive, Inlcudes: Ref. 2 - 18

1шт.

2

A37577

COVER

- pump

1шт.

3

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

6шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

5

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, cover

2шт.

A37572

SHAFT

GEAR & SHAFT ASSY. - drive, Inlcudes: Ref. 6 - 9

1шт.

A37575

SHAFT

GEAR & SHAFT ASSY. - idler, Inlcudes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive and idler

1шт.

7

NSS

NOT SOLD SEPARAT

KEY - gear (#3 Woodruff)

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - idler

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

10

A37571

HOUSING

- pump

1шт.

11

A37578

VALVE

ASSY. - relief, Inlcudes: Ref. 12 - 17

1шт.

12

A11530

GASKET

- valve seat

1шт.

13

NSS

NOT SOLD SEPARAT

BODY (Order A37578)

1шт.

14

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

15

211-9

BALL,5/16" Dia

- check (.) 5/16" Dia

1шт.

16

A37580

VALVE SPRING

SPRING - relief

1шт.

17

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Spring guide 3/16" x 1", Slotted

1шт.

18

195-6

WASHER,#6

- shim, relief valve

1шт.
