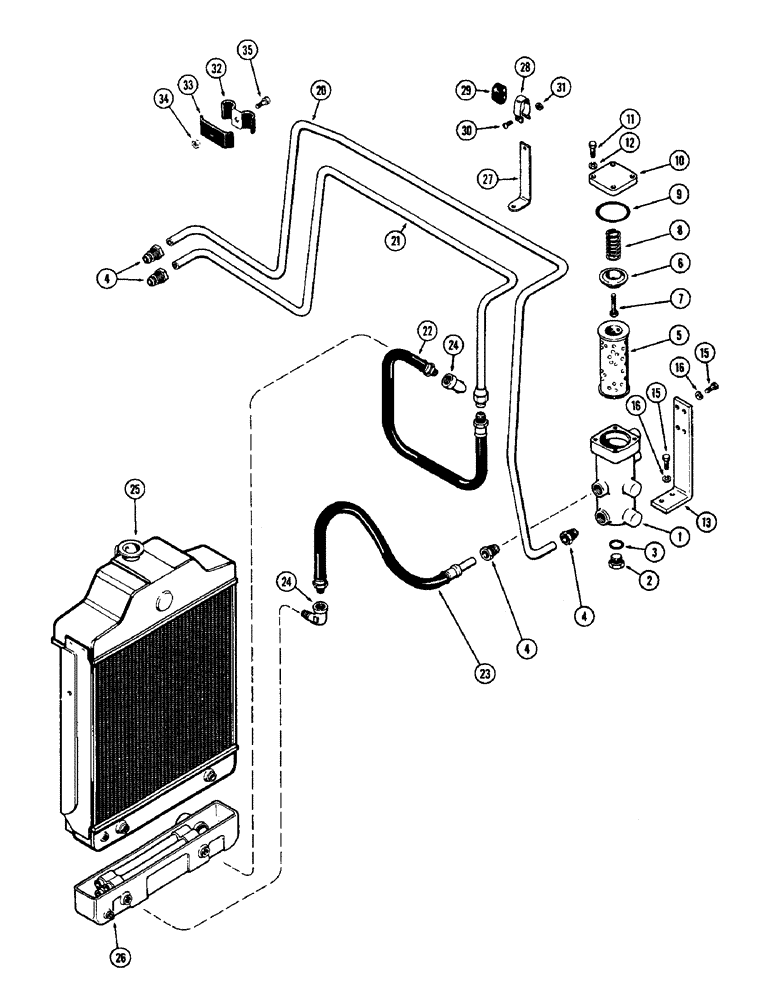

Запчасти Case 580 (099A) - OIL FILTER & COOLER LINES, PWR. SHUTTLE, USED W/A38300, A38031 & A37546 VALVES, USED PRIOR TO TRAC. (21) - TRANSMISSION

1

A37581

HOUSING

- filter element

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Assy, Filter housing, Incl. Ref. 3 Hex Hd, 7/8"-14 ORB

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

4

222-507

TUBE NUT,7/8"-18

NUT - 5/8" tube fitting

4шт.

5

A36524

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

6

A36523

CAP

- element retainer

1шт.

7

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

8

A29993

VALVE SPRING

SPRING - retainer, filter element

1шт.

9

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - filter cover (2-3/8 x 2-5/8 x 1/8")

1шт.

10

G1248

COVER

CAP - filter housing

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

4шт.

13

A38223

BRACKET

- filter housing support (Replaces A37582)

1шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

4шт.

20

A37584

TUBE

- input, Serial Range: valve-filter

1шт.

21

A37585

TUBE

- return, to valve (Incl. flare nut)

1шт.

22

A37586

HOSE,12.70 mm ID x 485.60 mm

RADIATOR HOSE, , to Return Tube 12.70 mm ID x 485.60 mm

1шт.

23

A37583

HOSE ASSY.

HOSE - filter to radiator (18-3/4" long)

1шт.

24

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 3/8" P.T., 90 degrees (No longer required)

2шт.

25

A35583

RADIATOR

ASSY. - (Includes cooling tubes), Inlcudes: Ref. 26

1шт.

26

G45484

RESERVOIR

TANK - oil cooler (Repairs only)

1шт.

27

A37587

BRACKET

- tube clamp (w/gas engine) (5-3/4" high)

1шт.

27

A37588

BRACKET

- tube clamp (w/diesel engine) (5-9/64" high)

1шт.

28

A37590

CLAMP

- tube

2шт.

29

G46835

GROMMET

- rubber, tube clamp

3шт.

30

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- clamp, #10-32 x 3/4" rd. hd. Phillips

2шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps

2шт.

32

A38391

CLAMP

- tubes (1st used trac. ser. no. 8342464)

1шт.

33

A38392

STRAP

- tubes (1st used trac. ser. no. 8342464)

1шт.

34

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Strap to clamp Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

35

131-2

NUT,1/4"-20, GB

NUT - 1/4" N.C. elastic stop

1шт.
