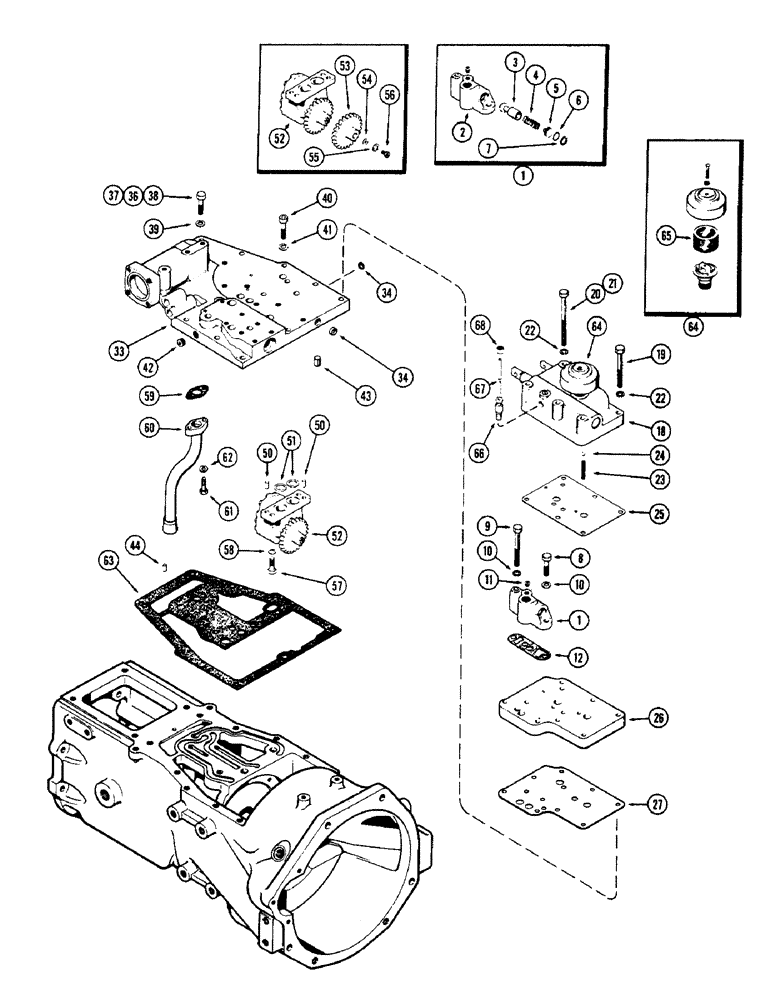

Запчасти Case 580 (096) - PUMP AND VALVE ADAPTER, POWER SHUTTLE, 1ST USED TRAC. S/N. 8314666 (21) - TRANSMISSION

1

A36898

VALVE

ASSY. - regulator, Inlcudes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A36898)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - (Order A36898)

1шт.

4

A30106

VALVE SPRING

SPRING - valve spool

1шт.

5

G16779

CAP

PLUG - end

1шт.

6

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - end plug (9/16 x 3/4 x 3/32")

1шт.

7

G46150

SNAP RING,0.75", Int, #75

RING - Snap, , end plug 0.75", Int, #75

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex. hd.

1шт.

10

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

11

221-1840

PLUG

- 1/8" P.T. socket hd.

1шт.

12

G46824

GASKET

- regulator valve

1шт.

18

A38434

VALVE

ASSY. - control (See Figures 98 & 101A) (1st used trac. ser. no. 8358736)

1шт.

18

A38300

VALVE ASSY. - control (See Figures 99A & 101A) (Used trac. ser. nos., Serial Range: 8340560-8358736)

1шт.

18

A38031

VALVE

ASSY. - control (See Figure 101C) (Used trac. ser. nos., Serial Range: 8314666-8340560)

1шт.

19

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex. hd.

1шт.

20

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

21

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

22

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

6шт.

23

A35095

SPRING

- detent, valve spool

1шт.

24

211-11

BALL,3/8" Dia

- detent, valve spool (.) 3/8" Dia

1шт.

25

A38030

GASKET,0.79mm Thk

- control valve

1шт.

26

A38028

PLATE

- oil distribution

1шт.

27

A38029

GASKET,0.79mm Thk

- oil distribution plate

1шт.

33

A37869

HOUSING

ASSY. - adapter, valve & pump, Inlcudes: Ref. 34

1шт.

34

41-1013

PLUG,Cup, 13/16"

- (53/64" cup type)

2шт.

36

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

36

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

37

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

38

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

39

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

8шт.

40

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - socket hd., 3/8" N.C. x 1-3/4"

1шт.

41

195-401

SEALING WASHER,3/8"

WASHER - sealing, 3/8"

1шт.

42

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" P.T. sq. socket hd.

2шт.

43

A29426

AXLE PIN

PIN - dowel, adapter housing front (3/8 x 3/4")

1шт.

44

G10711

PIN

- dowel, adapter housing rear (1/2 x 3/4")

1шт.

50

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, pump to adapter (5/16 x 9/16")

2шт.

51

A7075

GASKET

GASKET -, Serial Range: pump-adapter

2шт.

52

A37570

PUMP

ASSY. - drive (Repairs Figure 100)

1шт.

53

G16798

GEAR

- pump drive

1шт.

54

G49045

WASHER

- retainer, drive gear

1шт.

55

G46147

SNAP RING,0.625", Int, #62

RING - Snap, 0.625", Int, #62

1шт.

56

165-101

HEX SOC SCREW,Prev Torque, 1/4" - 28 x 3/8"

SCREW - locking, 1/4" N.C. x 3/8" hex. socket hd.

1шт.

57

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

58

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

59

A38212

GASKET

- suction tube

1шт.

60

A38034

TUBE

- suction, oil

1шт.

61

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex. hd.

2шт.

62

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

2шт.

63

A37517

GASKET,0.79mm Thk

- adapter housing

1шт.

64

A9238

BREATHER

ASSY. - oil, Inlcudes: Ref. 65

1шт.

65

A10059

FILTER, ELEMENT

ELEMENT - filter, oil breather

1шт.

66

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR - tube to valve

1шт.

67

G46292

TUBE,0.125" OD x 28" L

- oil pressure, valve to gauge

1шт.

68

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - pressure tube to gauge

1шт.
