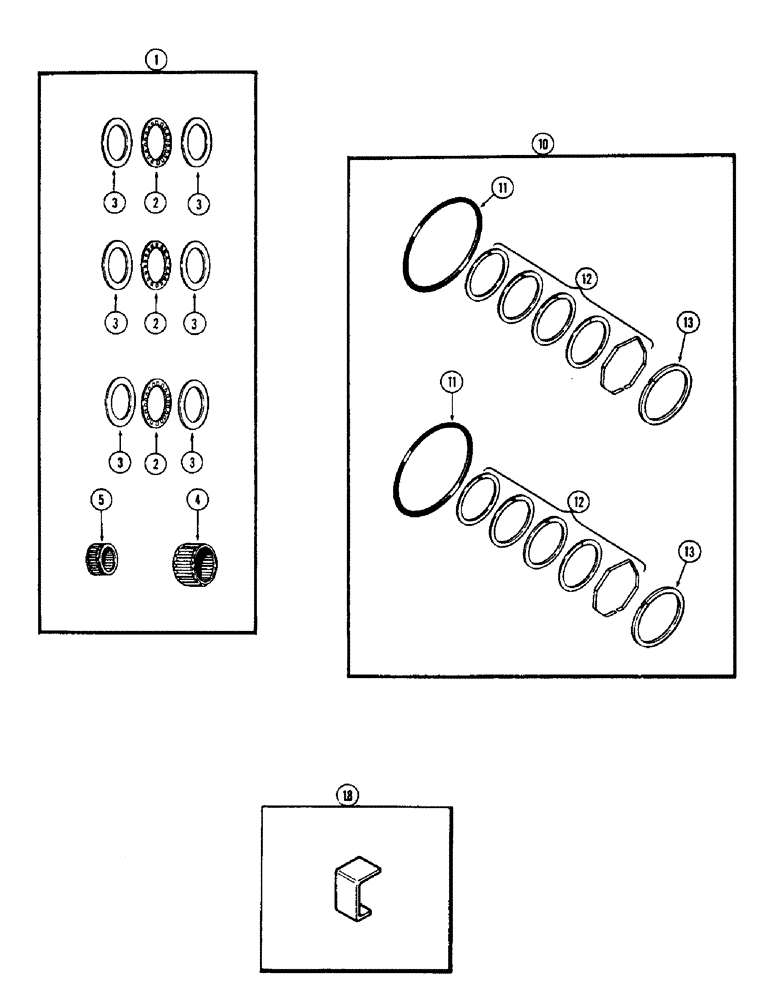

Запчасти Case 580 (095G) - A38926 CLUTCH KITS, A42870 BEARING KIT, A42871 RING KIT (21) - TRANSMISSION

1

A42870

BEARING ASSY

BEARING KIT - forward & reverse clutch, Inlcudes: Ref. 2 - 5

1шт.

A42870 bearing kit - This kit is not shown correctly. Actual components are:4 of A41021 washer-brg (2 1/8" I.D.), 2 of A32785 brg, thrust (2 1/8" I.D.) 2 of A42844 washer-brg (2" I.D.), 1 of A24621 brg, needle (1 3/8" I.D.) 1 of A41020 brg, needle (2 1/8" I.D.) , 1 of A66478 brg, thrust (2" I.D.)

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - needle

3шт.

3

A41021

THRUST WASHER

RACE - needle bearing

6шт.

4

A41020

ROLLER CAGE BEARING,53.98mm ID x 63.5mm OD x 38.1mm W

BEARING - roller, reverse gear

1шт.

5

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - roller, sliding gear shaft

1шт.

10

A42871

SEAL

RING & SEAL KIT - piston, Inlcudes: Ref. 11 - 13

1шт.

11

A42843

SEAL

RING - seal, piston to carrier (Rubber), kit

2шт.

12

A42848

PISTON

RING ASSY. - clutch carrier to piston seal, kit

2шт.

13

A42899

RING

- intermediate piston to carrier, kit

2шт.

18

A43071

CLIP

- clutch pack clamp, ring kit

4шт.
