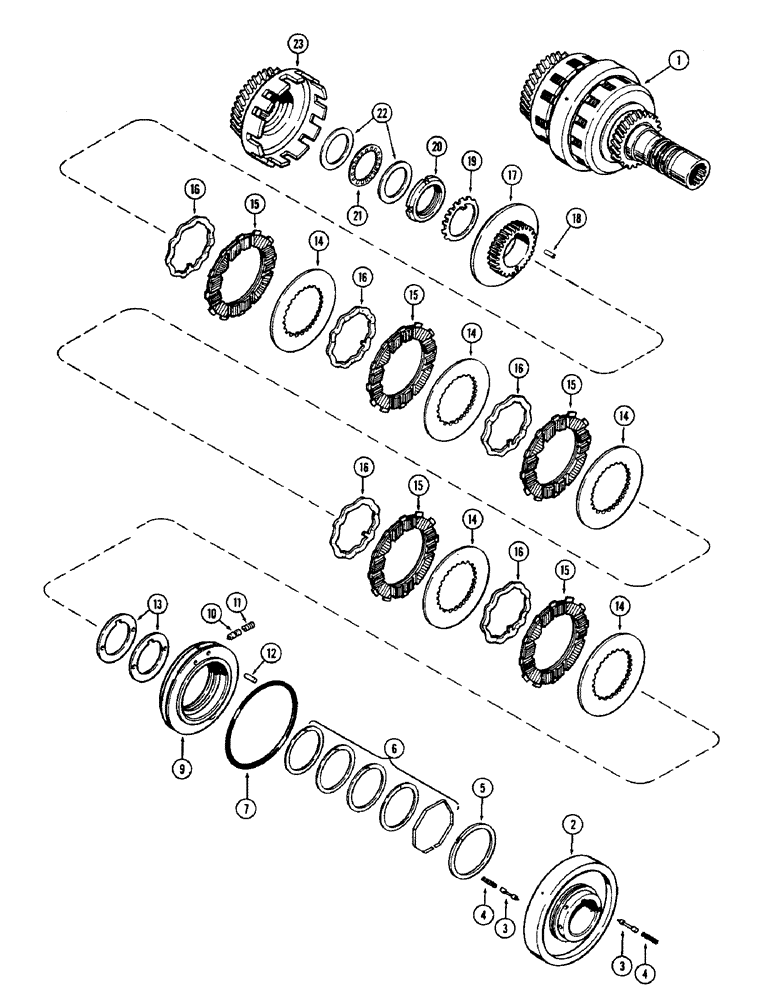

Запчасти Case 580 (095E) - A38926 CLUTCH, TWIN DISC, FORWARD (21) - TRANSMISSION

1

A38926

CLUTCH

ASSY. - (Twin disc #X9963A) (Incl. all items Figures 95C & 95E) (Used trans. ser. nos. 2351901 to 2351957), Inlcudes: Ref. 2 - 23

1шт.

2

A42858

CARRIER

- clutch piston

1шт.

3

A42837

PISTON ASSY.

PISTON - clutch lube

2шт.

4

A42846

VALVE SPRING

SPRING - lube valve piston

2шт.

5

A42899

RING

- piston, intermediate piston to carrier (See kit A42871, Figure 95G)

1шт.

6

A42848

PISTON

RING ASSY. - piston, clutch carrier to piston seal (See kit A42871, Figure 95G)

1шт.

7

A42843

SEAL

RING - seal, clutch piston to carrier (Rubber) (See kit A42871, Figure 95G)

1шт.

A42872

KIT

PISTON ASSY. - forward clutch, Inlcudes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - forward clutch

1шт.

10

A42836

PISTON

- dump valve

1шт.

11

A42847

SPRING

- dump valve piston

1шт.

12

A42850

PIN

- dump valve spring

1шт.

13

A42838

SHIM,.005" Thk

Clutch .005" Thk

1шт.

13

A42839

SHIM,.007" Thk

Clutch .007" Thk

1шт.

13

A42840

SHIM,.010" Thk

Clutch .010" Thk

1шт.

14

A42855

PLATE

- clutch driven, steel, forward

5шт.

15

A42854

PLATE

- clutch driving, sintered, forward

5шт.

16

A42831

SPRING

- clutch plate, wave, forward

5шт.

17

A42857

PLATE ASSY.

BACKPLATE - clutch hub, forward

1шт.

18

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, , Backplate 3/32" x 3/8", Slotted

4шт.

19

192-311

BEARING WASHER,Bearing, W-11

LOCK - bearing plate nut

1шт.

20

A42832

LOCK NUT

NUT - lock, Serial Range: clutch-shaft

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - needle, clutch forward gear (Order kit A42870 from Figure 95G)

1шт.

22

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

RACE - needle brg. (See kit A42870, Figure 95G)

2шт.

23

A43508

GEAR WHEEL

GEAR - spider, forward clutch

1шт.
