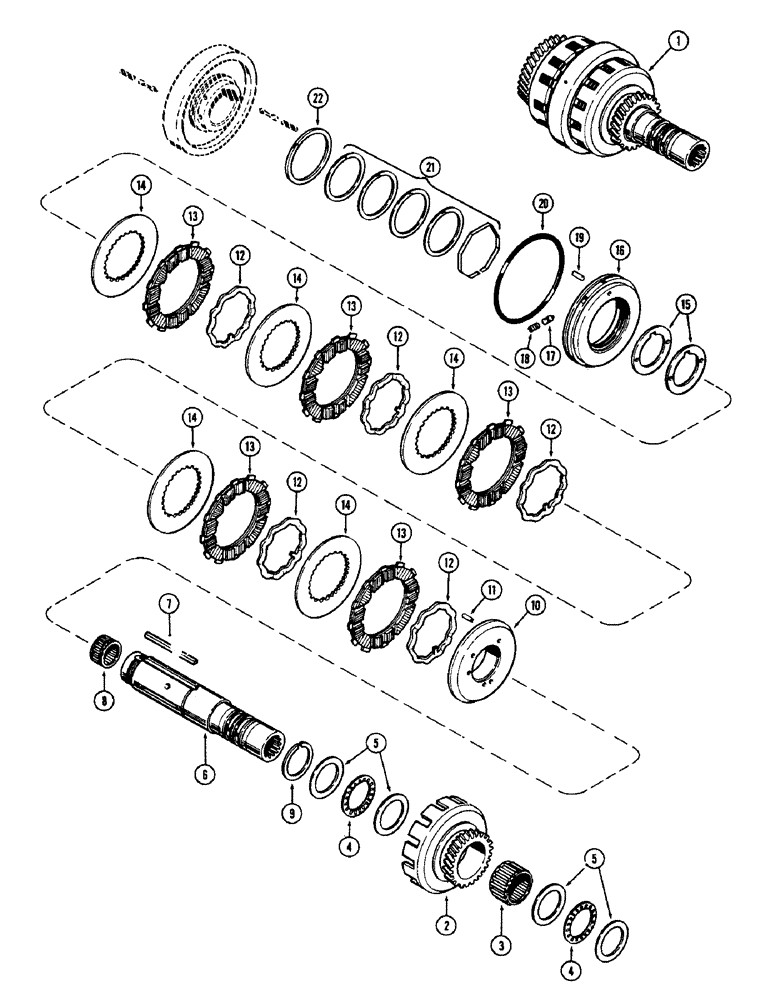

Запчасти Case 580 (095C) - A38926 CLUTCH, TWIN DISC, REVERSE (21) - TRANSMISSION

1

A38926

CLUTCH

ASSY. - (Twin disc #X9963A) (Incl. all items Figures 95C & 95E) (Used trans. ser. nos. 2351901 to 2351951), Inlcudes: Ref. 2 - 22

1шт.

2

A43510

GEAR

- spider, reverse clutch

1шт.

3

A41020

ROLLER CAGE BEARING,53.98mm ID x 63.5mm OD x 38.1mm W

BEARING - roller, clutch reverse gear (See kit A42870, Figure 95G)

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - needle, clutch reverse gear (Order kit A42870 from Figure 95G)

2шт.

5

A41021

THRUST WASHER

RACE - needle brg. (See kit A42870, Figure 95G)

4шт.

6

A42869

SHAFT

ASSY. - clutch quill

1шт.

7

A43298

KEY

- clutch hubs to quill shaft

1шт.

8

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - roller, clutch sliding gear shaft (See kit A42870, Figure 95G)

1шт.

9

A42849

RING, SNAP

RING - snap, quill shaft stop

1шт.

10

A42856

PLATE

BACKPLATE - clutch hub, reverse

1шт.

11

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, , Backplate 3/32" x 3/8", Slotted

4шт.

12

A42831

SPRING

- clutch plate, wave, reverse

5шт.

13

A42854

PLATE

- clutch driving, sintered, reverse

5шт.

14

A42855

PLATE

- clutch driven, steel, reverse

5шт.

15

A42838

SHIM,.005" Thk

Clutch .005" Thk

1шт.

15

A42839

SHIM,.007" Thk

Clutch .007" Thk

1шт.

15

A42840

SHIM,.010" Thk

Clutch .010" Thk

1шт.

A42872

KIT

PISTON ASSY. - reverse clutch, Inlcudes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - reverse clutch

1шт.

17

A42836

PISTON

- clutch dump valve

1шт.

18

A42847

SPRING

- dump valve piston

1шт.

19

A42850

PIN

- dump valve spring

1шт.

20

A42843

SEAL

RING - seal, clutch piston to carrier (Rubber) (See kit A42871, Figure 95G)

1шт.

21

A42848

PISTON

RING ASSY. - piston, clutch carrier to piston seal (See kit A42871, Figure 95G)

1шт.

22

A42899

RING

- piston, intermediate piston to carrier (See kit A42871, Figure 95G)

1шт.
