(095A) - A38133 POWER SHUTTLE CLUTCH, ROCKFORD

Запчасти Case 580 (095A) - A38133 POWER SHUTTLE CLUTCH, ROCKFORD (21) - TRANSMISSION

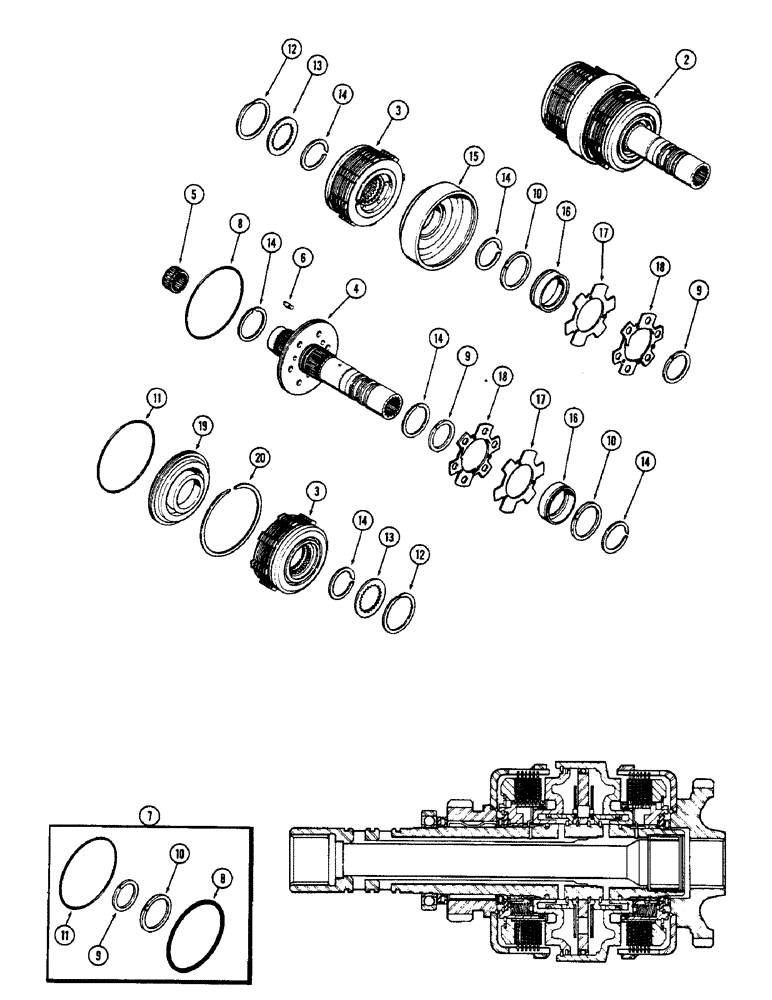

Схема запчастей Case 580 - (095A) - A38133 POWER SHUTTLE CLUTCH, ROCKFORD (21) - TRANSMISSION
5
18
10
17
12
6
17
3
16
3
18
20
9
14
14
4
14
10
13
14
2
12
11
11
13
9
14
16
10
9
14
8
7
8
15
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A38133

CLUTCH

ASSY. - power shuttle (Replaces A37620) (Includes all items on Figures 94 and 95A), Inlcudes: Ref. 2 - 20

1шт.

2

A41358

CLUTCH ASSEMBLY

CLUTCH ASSY. - complete w/shaft (Replaces A40974), Inlcudes: Ref. 3 - 11

1шт.

3

A41356

HUB

CLUTCH PACK - (Replaces A40993) (See Figure 94)

2шт.

4

A40975

SHAFT

ASSY. - (Includes separator plate)

1шт.

5

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - rear gear

1шт.

6

A40981

AXLE PIN

PIN - dowel, separator

3шт.

7

A41000

GASKET KIT

SEAL KIT - clutch, Inlcudes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

"O" RING - separator seal (5-3/4" I.D.)

1шт.

9

NSS

NOT SOLD SEPARAT

RING - seal (Hook type) (2.375" closed dia.)

2шт.

10

NSS

NOT SOLD SEPARAT

RING - seal (Hook type) (3.001" closed dia.)

2шт.

11

NSS

NOT SOLD SEPARAT

RING - seal, force piston (Lathe cut) (5-3/8" I.D.)

1шт.

12

A41012

RING, SNAP

RING - snap, internal, clutch spacer

2шт.

13

A41011

SPACER

- clutch

2шт.

14

A40980

RING

- snap-external

6шт.

15

A40991

HOUSING

- force piston

1шт.

16

A40984

PISTON

- accelerating

2шт.

17

A40983

DISC

- valve

2шт.

18

A40982

CLUTCH

DISC - reinforcing, valve disc

2шт.

19

A40988

PISTON

- force

1шт.

20

A40992

RING, SNAP

RING - snap-internal piston housing

1шт.
