(094) - A38133 POWER SHUTTLE CLUTCH, ROCKFORD

Запчасти Case 580 (094) - A38133 POWER SHUTTLE CLUTCH, ROCKFORD (21) - TRANSMISSION

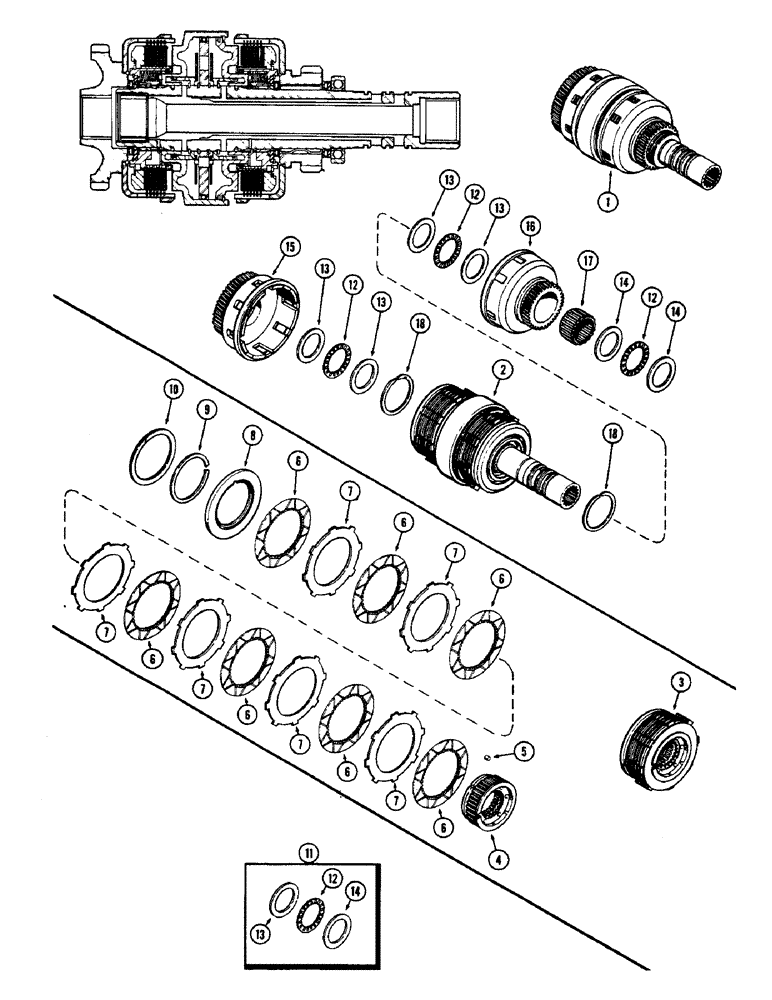

Схема запчастей Case 580 - (094) - A38133 POWER SHUTTLE CLUTCH, ROCKFORD (21) - TRANSMISSION
5
10
15
6
11
13
6
18
6
6
6
4
13
17
13
18
12
3
13
2
14
7
7
12
12
1
6
9
14
8
16
14
7
7
13
7
6
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A38133

CLUTCH

ASSY. - power shuttle (Used prior to trans. ser. no. 2351901; also used trans. ser. no. 2351951 & up) (Replaces A37620), Inlcudes: Ref. 2 - 18

1шт.

2

A41358

CLUTCH ASSEMBLY

CLUTCH ASSY. - pack, w/shaft (Replaces A40974) (See Figure 95A), Inlcudes: Ref. 3 - 18

1шт.

3

A41356

HUB

CLUTCH PACK - (Replaces A40993), Inlcudes: Ref. 4 - 10

2шт.

4

A40994

HUB

ASSY. - clutch

1шт.

A40994 hub assy - Springs are included in hub assembly and are NSS.

1шт.

5

A41008

AXLE PIN

PIN - dowel, clutch plate

2шт.

6

A41355

CLUTCH PLATE,92.91mm ID x 133.35mm OD x 1.6mm Thk

PLATE - clutch internal spline (Replaces A40999)

7шт.

7

A41005

CLUTCH PLATE,99.06mm ID x 142.75mm OD x 1.57mm Thk

- clutch, external spline

6шт.

8

A41006

PLATE ASSY.

PLATE - backing, clutch pack

1шт.

9

A41007

RING, SNAP

RING - snap, external, back plate

1шт.

10

A41009

SNAP RING,#412, 4.284, Int, Spiral

RING - snap, internal, clutch hub

1шт.

11

A41002

THRUST BEARING

KIT, Inlcudes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - thrust

3шт.

13

NSS

NOT SOLD SEPARAT

WASHER - thrust bearing (1/16" wide)

4шт.

14

NSS

NOT SOLD SEPARAT

WASHER - thrust bearing (1/8" wide)

2шт.

15

A41013

GEAR WHEEL

GEAR - rear (Forward)

1шт.

16

A41022

BEARING

GEAR - front (Reverse)

1шт.

17

A41020

ROLLER CAGE BEARING,53.98mm ID x 63.5mm OD x 38.1mm W

BEARING - front gear

1шт.

18

A40980

RING

- snap, external, clutch spacer

2шт.
