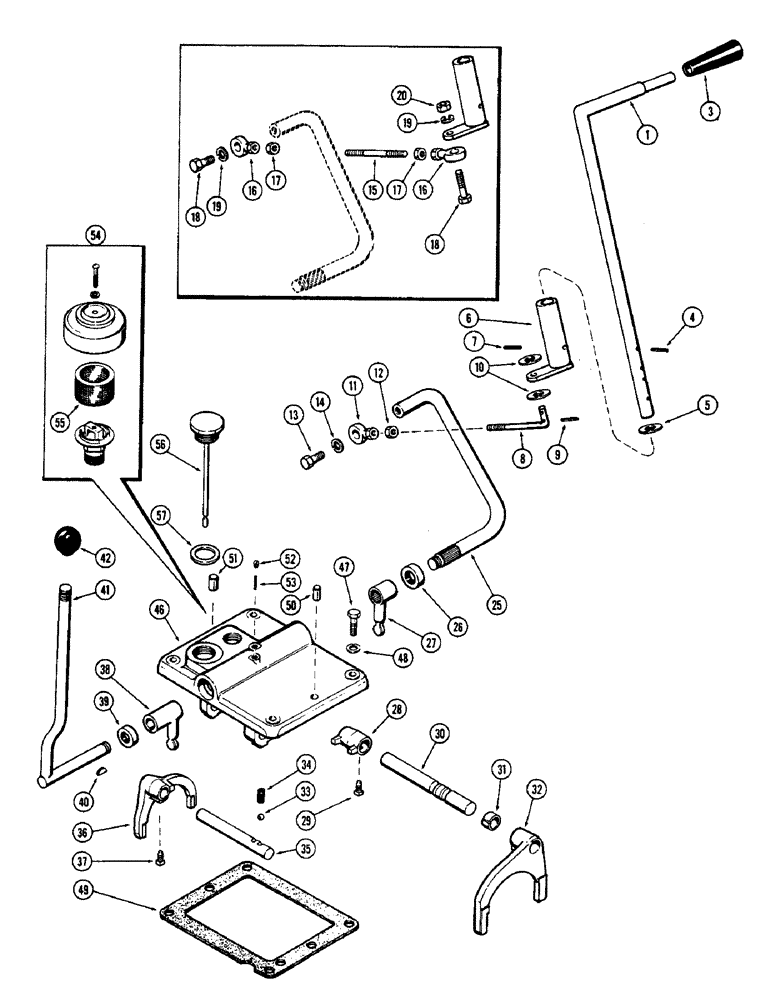

Запчасти Case 580 (088) - MECHANICAL SHUTTLE CONTROL COVER, STANDARD CLUTCH (21) - TRANSMISSION

1

A37245

LEVER

- hand, shuttle control

1шт.

3

A37247

KNOB

- hand lever (Use adhesive)

1шт.

4

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

5

195-41

WASHER,5/8"

1шт.

6

A37242

LEVER

- lower

1шт.

7

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

8

A38435

ROD

- linkage (1st used trac. ser. no. 8359651)

1шт.

9

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, , Rod to lower lever 3/32" x 1", Slotted

2шт.

10

95-6

WASHER,3/8"

- rod (7/16 x 1 x 5/64")

2шт.

11

A32398

BALL JOINT

END - ball joint (To shift control lever)

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- end to rod (3/8" N.F. hex.)

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Ball joint end Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

1шт.

15

A37246

CONNECTING ROD

ROD - connecting (Used prior to trac. ser. no. 8359651)

1шт.

16

A32398

BALL JOINT

END - ball joint, Serial Range: rod-lever

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

25

A37419

LEVER

- shift control

1шт.

26

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil, lever to cover (3/4 x 1-1/4 x 3/8")

1шт.

27

G15659

LEVER

- shift fork, shuttle

1шт.

28

G16638

LUG

- shuttle shift rail

1шт.

29

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

30

G30264

KIT

RAIL KIT - shuttle shift, Inlcudes: Ref. 31

1шт.

31

A38203

SPACER

- shift rail (.510" long) (Replaces G49612, G49628 & G49629)

1шт.

32

G16633

FORK

- shuttle shift

1шт.

33

211-11

BALL,3/8" Dia

- detent, shift rail (.) 3/8" Dia

2шт.

34

G47039

SPRING

- detent ball

2шт.

35

A37985

RAIL

- range shift

1шт.

36

G16632

FORK

- range shift

1шт.

37

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

38

G15657

LEVER

- range shift fork

1шт.

39

A26778

SEAL

- oil, range shift lever to cover (5/8 x 1-1/8 x 3/8")

1шт.

40

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Fork lever to hand lever #6, 5/32" x 5/8"

1шт.

41

A37281

LEVER

- hand, range shift

1шт.

42

A23885

KNOB

- hand lever, range shift

1шт.

46

A37984

COVER

- shift control

1шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

4шт.

48

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

4шт.

49

G46842

GASKET

- cover

1шт.

50

A29426

AXLE PIN

PIN - dowel, cover front, 3/8 x 3/4"

1шт.

51

G10711

PIN

- dowel, cover rear, 1/2 x 3/4"

1шт.

52

221-1850

PLUG,Hex Soc, 1/16"-27

- 1/16" roll thrd., sckt. hd.

2шт.

53

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Lever 1/8" x 1", Slotted

2шт.

54

A9238

BREATHER

ASSY. - oil, Inlcudes: Ref. 55

1шт.

55

A10059

FILTER, ELEMENT

ELEMENT - filter

1шт.

56

A38311

DIPSTICK

- oil lever (Replaces A37651)

1шт.

57

G10351

GASKET

- dipstick

1шт.
