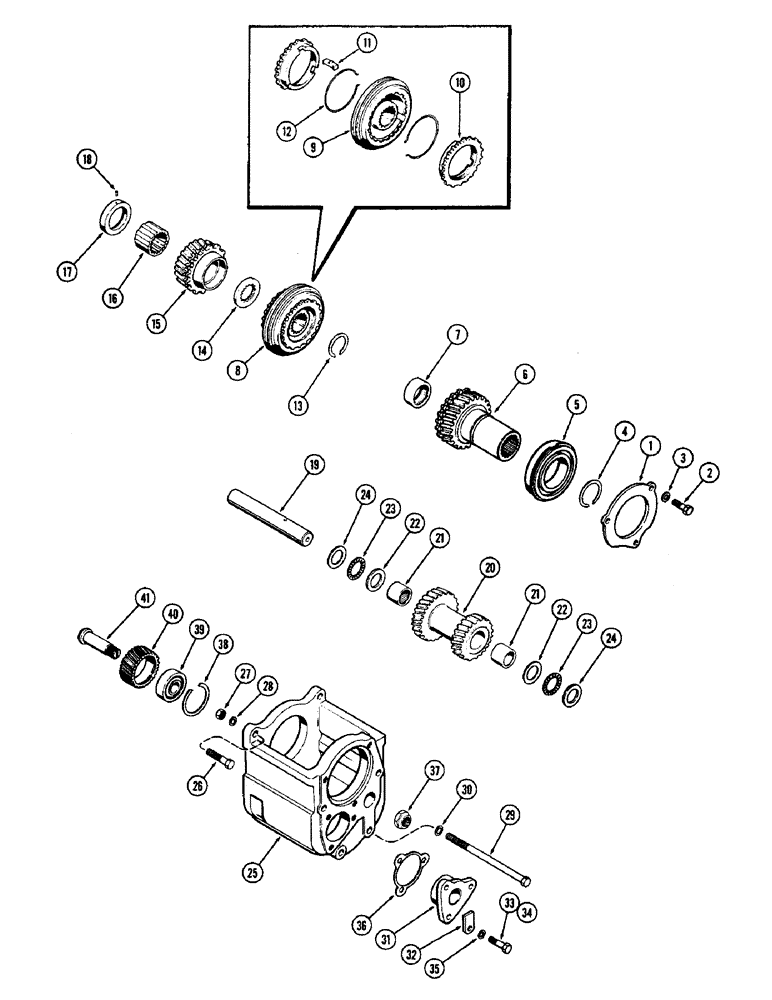

Запчасти Case 580 (086) - MECHANICAL SHUTTLE GEAR BOX, STANDARD CLUTCH (21) - TRANSMISSION

1

G16627

RETAINER

- bearing, input gear

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

4

A27209

RING

- snap, input gear bearing

1шт.

5

G13607

BALL BEARING

BEARING - ball, input gear

1шт.

6

A37617

GEAR

- input

1шт.

7

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - needle, input gear

1шт.

8

G45049

SYNCHRONIZER

ASSY. - shuttle shift

1шт.

9

NSS

NOT SOLD SEPARAT

HUB & SLEEVE - (Order G45049)

1шт.

10

G46077

RING

- blocking

2шт.

11

G46078

PLATE

- shifter

3шт.

12

A40766

SPRING

2шт.

13

A27565

RING

- snap, synchronizer (.076")

1шт.

13

A27566

RING

- snap, synchronizer (.080")

1шт.

13

A27567

RING

- snap, synchronizer (.083")

1шт.

13

G46097

RING

- snap, synchronizer (.087")

1шт.

13

A27568

RING

- snap, synchronizer (.091")

1шт.

14

G16625

COLLAR

- thrust, output gear

1шт.

15

G16624

GEAR

- output (27T)

1шт.

16

G16619

SLEEVE

- output gear

1шт.

17

G13459

COLLAR

- thrust, output gear

1шт.

18

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, 5/64" x 3/8", Slotted

1шт.

19

G16617

SHAFT

COUNTERSHAFT - cluster gear

1шт.

20

G16615

GEAR

- cluster (25T and 30T)

1шт.

21

G10420

NEEDLE BEARING

BEARING - needle, cluster gear

2шт.

22

G46082

WASHER

- thrust, inner (.125")

2шт.

23

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Cluster gear

2шт.

24

G46081

BEARING WASHER

WASHER - thrust, outer (.031")

2шт.

25

G1205

HOUSING

- shuttle gear

1шт.

26

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex. hd.

3шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

28

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

3шт.

29

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

4шт.

30

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

31

G1206

RING

BUSHING - front, countershaft

1шт.

32

G16618

LATCH

LOCK - countershaft

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. hd.

1шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

35

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

3шт.

36

G16616

SHIM,.005" Thk

Cluster gear .005" Thk

1шт.

37

G16614

NUT

- idler gear stud

1шт.

38

A27150

RING

- snap, bearing idler gear

1шт.

39

G13608

BALL BEARING

BEARING - idler gear

1шт.

40

G16612

GEAR

- reverse idler (24T)

1шт.

41

G16613

STUD

- reverse idler gear

1шт.
