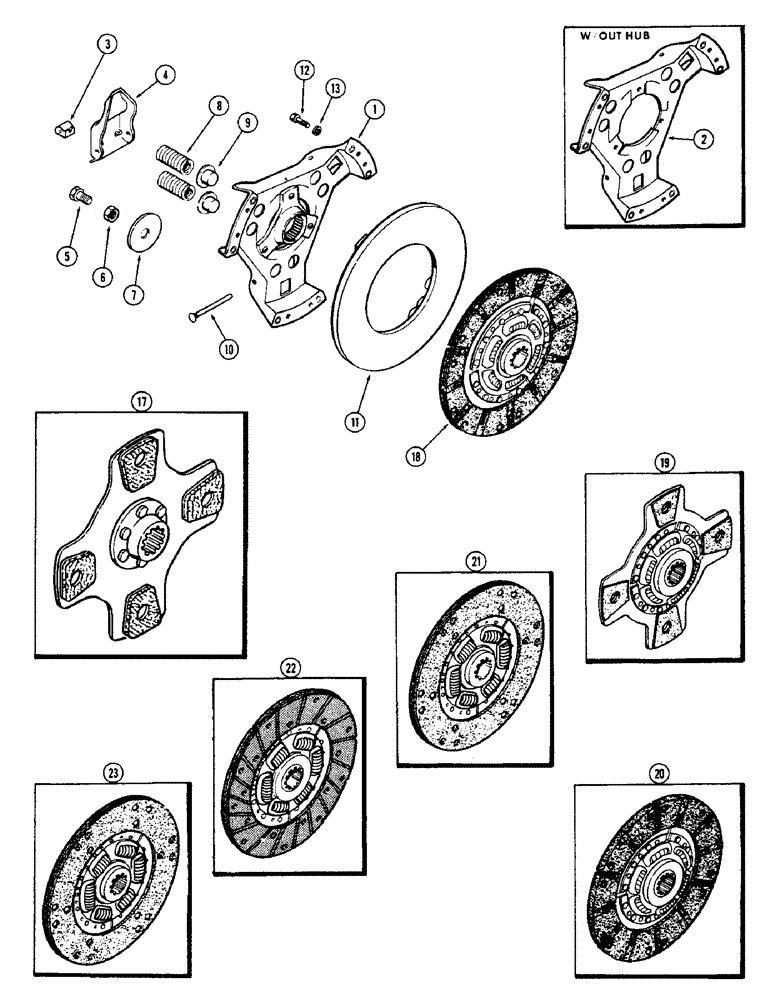

Запчасти Case 580 (083A) - CLUTCH (18) - CLUTCH

A37566

PLATE

ASSY. - pressure (Used models w/hydraulics or draft-o-matic), Inlcudes: Ref. 1 - 11

1шт.

A37566R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

A37566C

CORE-CLUTCH PLATE

Return Number, Plate Assy., Pressure

1шт.

A38636

X

PLATE ASSY. - pressure (Used models w/out hyd. or draft-o-matic) (Order A37566), Inlcudes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - w/hub (For A37566 plate assy.)

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - w/out hub (Used w/A38636 plate assy.)

1шт.

3

G46061

CLIP

- clutch return

3шт.

4

A40885

LEVER

3шт.

5

G49004

SCREW

- adjusting

3шт.

6

G49005

NUT - jam

3шт.

7

G49048

WASHER

3шт.

8

G47013

SPRING

- lever (White) (See note)

6шт.

9

G47012

CUP - spring

6шт.

10

A41427

AXLE PIN

PIN - pivot (Replaces G47011)

3шт.

11

G4506

PLATE

- pressure

1шт.

12

G11207

BOLT

- pressure, Serial Range: plate-flywheel

6шт.

13

92-5

LOCK WASHER,5/16"

WASHER - , lock 5/16"

6шт.

17

A39087

PLATE ASSY.

PLATE - driving (Gas) (Utility) (w/out spring dampener)

1шт.

17

1997844C1R

REMAN-CLUTCH DISC,276.35mm OD

Remanufactured Clutch Disc, 11 in., 21Tooth hub, 4 paddle

1шт.

17

1997844C1C

CORE-CLUTCH DISC

Return Number

1шт.

18

A37568

PLATE

- driving (Gas) (Utility) (Order A39087)

1шт.

19

A38389

PLATE

- driven; driving (Diesel) (Utility) (W/spring dampener) (1st used trans. ser. no. 2654834)

1шт.

20

A37567

PLATE - driving (Diesel) (Utility) (Order A38389) (Used prior to trans. ser. no. 2654834)

1шт.

21

A37922

PLATE

- driving (Gas) (Drawbar or forklift)

1шт.

22

A38393

PLATE

- driving (Diesel) (Drawbar or forklift)

1шт.

23

A37921

X

PLATE - driving (Diesel) (Drawbar or forklift) (Order A38393)

1шт.
