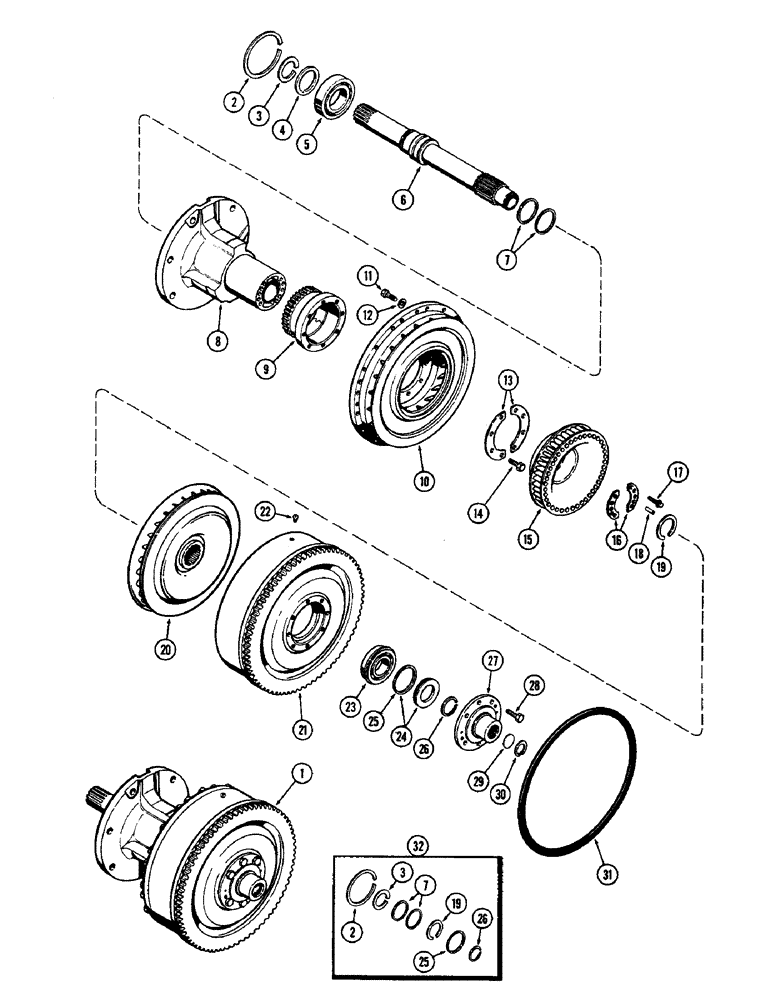

Запчасти Case 580 (092) - A37654 TORQUE CONVERTER (17) - TORQUE CONVERTER

1

A37654

TORQUE CONVERTER ASSY., Inlcudes: Ref. 2 - 30

1шт.

2

A36373

RING, SNAP

RING - snap, internal, carrier bearing

1шт.

Part of repair kit P/N A41084

1шт.

3

G46700

SNAP RING

RING - snap, external, carrier bearing

1шт.

Part of repair kit P/N A41084

1шт.

4

A40880

SPACER

- carrier bearing

1шт.

5

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - carrier

1шт.

6

A40879

SLEEVE CYLINDER

SHAFT - output

1шт.

7

A20229

RING

- seal, shaft

2шт.

Part of repair kit P/N A41084

1шт.

8

A40874

CARRIER

ASSY. - converter guide

1шт.

A41482

SLEEVE - carrier

1шт.

9

A41400

GEAR

- pump drive (Replaces A40876)

1шт.

This part has a bushing inside of it. P/N A36272.

1шт.

10

A40872

WHEEL

- impeller

1шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

18шт.

12

A40877

WASHER

- plain

18шт.

13

D37017

PLATE

- clamp

2шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

15

D36835

WHEEL

- guide

1шт.

16

A36278

PLATE

- clamp

2шт.

17

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16 x 3/4" N.C., 12 pt. hd.

6шт.

18

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, 5/16" x 3/4", Slotted

4шт.

19

G46700

SNAP RING

RING - snap, turbine

1шт.

Part of repair kit P/N A41084

1шт.

20

R31572

TURBINE

- (Replaces D36829)

1шт.

21

A40873

HOUSING

- rotating

1шт.

22

A41365

PLUG

- 1/8" P.T. hex. sckt. hd.

2шт.

23

A37733

BALL BEARING

BEARING - housing

1шт.

24

A36267

SEAL

CARRIER ASSY. - seal ring, Inlcudes: Ref. 25

1шт.

25

A36269

SEAL

RING - seal, converter oil

1шт.

Part of repair kit P/N A41084

1шт.

26

A36385

RING

- snap, carrier

1шт.

Part of repair kit P/N A41084

1шт.

27

A40878

FLYWHEEL

PILOT - flywheel

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

29

A36372

PLUG

- front, converter shaft

1шт.

30

A36277

SNAP RING,1.125", Int, #112

plug 1.125", Int, #112

1шт.

31

G46817

GASKET,293.62mm ID x 314.58mm OD x 4.95mm Thk

- converter to flywheel (Not part of assy.)

1шт.

32

A41084

KIT

- repair, Includes Refs. 2, 3, 7, 19, 25 and 26

1шт.
