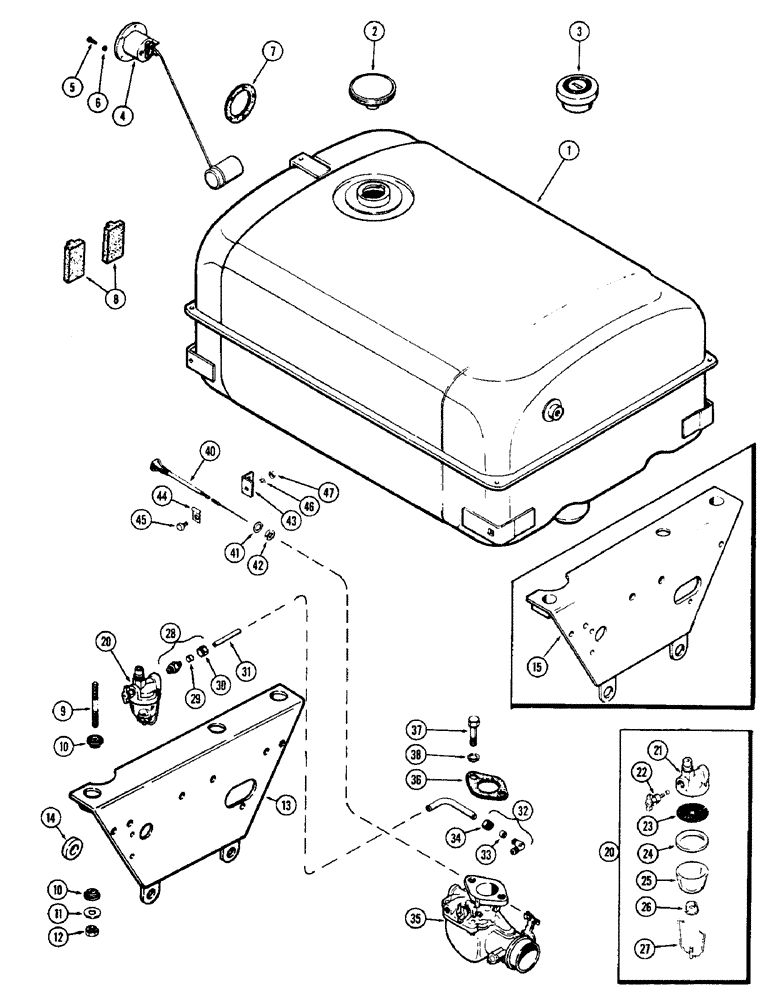

Запчасти Case 580 (054) - FUEL TANK, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A37308

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank, w/lock (Includes keys)

1шт.

4

A23480

SENDER UNIT

SENDER - fuel gauge

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

-, Serial Range: sender-tank

1шт.

8

A37315

PAD

- rear, tank support

2шт.

9

A37310

STUD

- 3/8" N.C. x 3-1/4", tank mtg.

4шт.

10

A37311

BUSHING

- mounting (Rubber)

8шт.

11

F62051

WASHER

- stud nut, 13/32" I.D. x 1-1/2" O.D

4шт.

12

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex. lock (Gripco)

4шт.

13

A51792

SUPPORT

- front, fuel tank (Replaces A38951 & A37312)

1шт.

14

A51801

BUSHING

SPACER - support to torque tube (Used w/A51792 only)

2шт.

15

A38951

SUPPORT

- front, fuel tank (Order A51792)

1шт.

20

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Inlcudes: Ref. 21 - 27

1шт.

21

A11214

HEAD

1шт.

22

A11205

VALVE

- shut-off

1шт.

23

A11211

FILTER SCREEN

SCREEN

1шт.

24

A11208

GASKET

- bowl

1шт.

25

A11209

BOWL

1шт.

26

A11210

ADJUSTER

NUT

1шт.

27

A11212

BAIL

ASSY.

1шт.

28

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR ASSY. - fuel line to strainer, Inlcudes: Ref. 29 and 30

1шт.

29

222-103

SLEEVE,5/16" Tube

1шт.

30

222-104

SLEEVE,3/8" Tube

NUT - for 5/16" tube

1шт.

31

G46268

FUEL TUBE,0.312" OD x 20.5" L

LINE - fuel, strainer to carburetor

1шт.

32

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - fuel line to carburetor, Inlcudes: Ref. 33 and 34

1шт.

33

222-653

SLEEVE,5/16" Tube, Comp

- for 5/16" tube

1шт.

34

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - for 5/16" tube

1шт.

35

A38251

CARBURETOR

ASSY. - w/solenoid (See Figure 056) (1st used eng. ser. no. 2639338)

1шт.

35

A37173

CARBURETOR

ASSY. - w/o solenoid (See Figure 057A) (Used prior to eng. ser. no. 2639338)

1шт.

36

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

37

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

38

92-6

LOCK WASHER,3/8"

WASHER - , lock 3/8"

2шт.

40

A38458

CONTROL

- choke (Replaces A36578)

1шт.

41

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" N.F. hex. jam

1шт.

43

A38446

BRACKET

- choke control clip

1шт.

44

A26673

CLIP

- choke cable

1шт.

45

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

47

25-104

NUT,1/4"-20, G5

2шт.

L11541

CABLE TIE,203.2mm L, Nylon

STOP - choke control to hyd. tube (Replaces A38447)

1шт.
