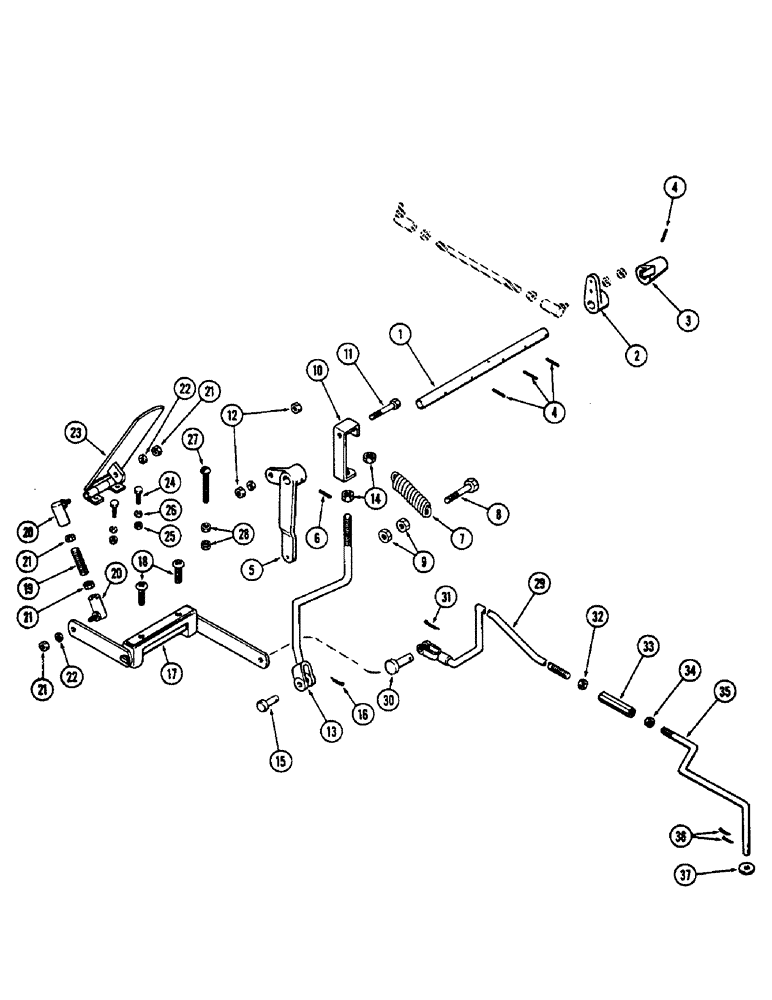

Запчасти Case 580 (053A) - LOWER THROTTLE LINKAGE, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A37264

SHAFT

- cross, throttle control

1шт.

1

A185091

SHAFT

- cross, throttle control

1шт.

2

A35638

LEVER

- cross shaft

1шт.

3

A35639

LEVER

- override, foot throttle

1шт.

4

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

5

A37265

LEVER

- foot throttle

1шт.

6

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

7

A38304

SPRING

- return

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex.

2шт.

10

A37271

DRAG LINK

LINK - foot throttle pivot

1шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 1/4" N.C. hex.

2шт.

13

A37538

ROD

- foot throttle

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, Rod to bellcrank, 3/8 x 15/16"

1шт.

16

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

17

A37273

BRACKET

BELLCRANK - foot throttle

1шт.

18

77-510

SCREW,Spcl, #6

- 5/16 x 5/8" N.C. truss hd.

2шт.

19

A37280

STUD

- bellcrank to foot pedal

1шт.

20

A10329

BALL JOINT,1/4" - 28 x 1"

- bellcrank to foot pedal

1шт.

21

25-154

JAM NUT,Jam, 1/4"-28, G5

- jam, 1/4" N.F. hex

4шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

A37278

PEDAL

- foot, throttle control

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

25

25-104

NUT,1/4"-20, G5

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

173-236

SCREW - pedal adjusting (5/16 x 2-1/4" N.C. rd. hd.)

1шт.

28

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 1/4" N.C. hex.

2шт.

29

A37893

ROD

- rear, throttle control

1шт.

30

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, 1/4 x 3/4"

1шт.

31

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

32

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex. (R.H. thrd.)

1шт.

33

A37269

TURNBUCKLE

- rod adjusting

1шт.

34

129-342

NUT - 5/16" N.C. hex. (L.H. thrd.)

1шт.

35

A37266

ROD

- front, throttle control

1шт.

36

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

37

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.
